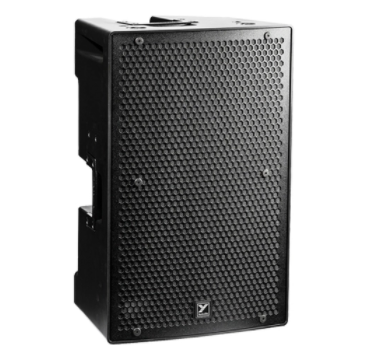

Yorkville PS15P Loudspeaker

Yorkville PS15P ParaSource Active 15 Loudspeaker Features

• Integrated 4400 Watt Amplifier (Peak Power - 1400 Watts Program)
• 15-inch Woofer with 3-inch Voicecoil
• 85° x 50° Horn with Thermal and Peak Protection
• 38mm Compression Driver with 1-inch Exit
• Max SPL 134dB Peak (129dB Continuous)
• High Efficiency Bi-Amplified Class-D Power Module
• Passive Cooling Scheme (No Loud Fans Required)
• Designed for Front-of-House or Monitor Applications
• Integrated Two Channel Mini Mixer with XLR Microphone, 1/4-inch and RCA Line Inputs
• Multiband Limiting Delivers Extremely Transparent Listening Experience (Vocals Are Not Modulated By Bass)
• Integrated All Metal Speaker Standmount Adaptor
• Integrated Reinforced Flypoints
• Lightweight ABS Cabinet Construction
• Made in Canada

Yorkville PS15P ParaSource Active 15 Loudspeaker Specifications

• System Type: Active Loudspeaker
• Active or Passive: Active
• Program Power (Watts): 1400 watts (4400 watts peak)
• Max SPL (dB): 134dB Peak (129dB Continuous)
• Frequency Response (Hz +/- 3dB): 45Hz to 26kHz
• Crossover Frequency (Hz): 1.0kHz
• Driver Configuration: 15-inch / 1-inch
• HF Driver(s): 38mm Voicecoil w/ 1-inch Exit
• HF Dispersion ( DEG H x DEG V): 85 x 50
• HF Protection: Thermal/Peak Limiter
• LF Driver(s): 15-inch (3 inch voicecoil)
• LF Protection: Thermal/Multiband Peak Limiter
• MF Processing: Dynamic Bass Extension
• Cooling Scheme: Passive
• Power Cable: Detachable IEC
• Power Consumption (typ/max): 2.4A/3.0A @ 120Vac 1.2/2.5 A @230Vac
• Inputs: 1/4-inch, XLR, RCA
• Inputs - 1/4 IN Jacks: Yes (x2)
• Inputs - XLR: Yes (x2)
• Input Sensitivity (Vrms Sine): 1.23 Vrms +4dBu
• Mixer Controls: Sub Mode HPF, Bass Boost, Mixer Enable
• Level Controls: Master Level, Mic Level, Line Level
• LED Indicators: Power, Limit, Clip
• Bar Handles: Yes
• Pole Mount Adapter (1 3/8 IN -3.5cm): Yes
• Enclosure Materials: ABS
• Baffle Material: ABS
• Grille: Perforated Metal
• Dimensions (DWH xbackW COM inches): 30.75 x 20.5 x 14.5
• Dimensions (DWH xbackW COM cm): 78.1 x 52.1 x 36.3
• Weight (lbs/kg): 60/27.8
