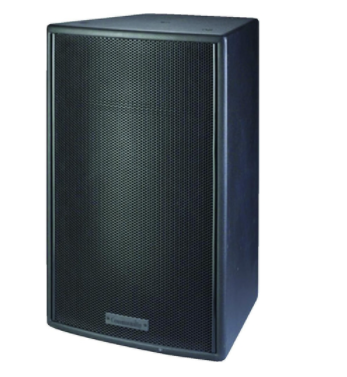

Community V2-3594 Loudspeaker

The Community V2-3594 Loudspeaker is a three-way, full-range loudspeaker suitable for use in a wide variety of fixed installations. Featuring horn loaded midrange and high-frequency drivers, the V2-3594 provide improved pattern control over two-way designs, making them well suited when intelligibility and musical clarity prove challenging, such as in large, reverberant spaces.

The 90° x 40° horn patterns provide tight, controlled coverage, particularly useful in rooms that are deeper than they are wide. Extremely powerful with exceptionally low distortion, the V2-3594 are ideal for applications such as contemporary worship services, music and dance clubs, theatrical sound reinforcement, and other demanding work. The trapezoidal design allows it to be clustered with like units, forming powerful arrays. The enclosure may be suspended from its M10 threaded rigging points using a variety of optional hardware available from Community, or it may be installed using a third-party mounting device. Featuring extended high frequency response, low distortion output, a tight, punchy bass response, and precise pattern control, the V2-3594 is a  versatile performes for use in music and speech applications that require high quality, high power sound reinforcement at an affordable price. The models include a rotatable horn design that allows optimal dispersion in either vertical or horizontal mounting positions.

Community V2-3594 Loudspeaker Features

• Optimized voicing for full-range reproduction
• DYNA-TECH driver protection system
• Discreet and aesthetic trapezoidal enclosure with multiple mounting options
• Rotatable horn

Community V2-3594 Loudspeaker Specifications

• Transducers: LF - 1 x 15", carbon ring cone driver; MF – 6.5”, HF - 1 x 1" exit, Ferrofluid-cooled driver
• Operating Range: 55 Hz – 18 kHz
• Sensitivity (1W/1m): 100 dB
• Power Handling: 200W continuous @ 8 ohms
• Continuous Max Output: 123 dB (129 dB Peak)
• Nominal Beamwidth (H x V): 90° x 40°
• Finish: Black or White uniformly textured painted 11-ply Baltic Birch plywood with powder-coated steel grille
• Dimensions (H x W x D): 32.4" x 18.4" x 15.9" (823 x 467 x 404 mm)
