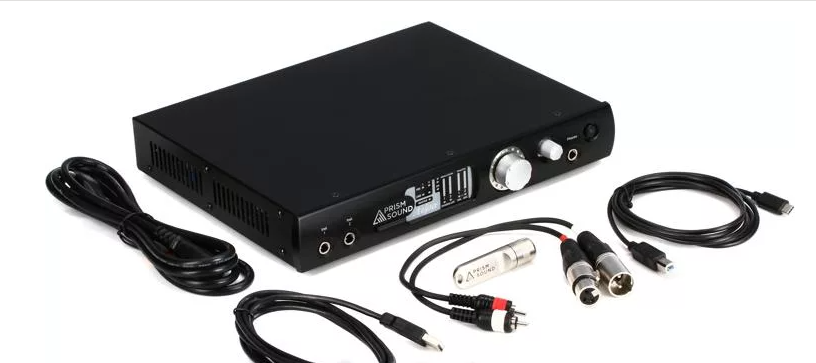

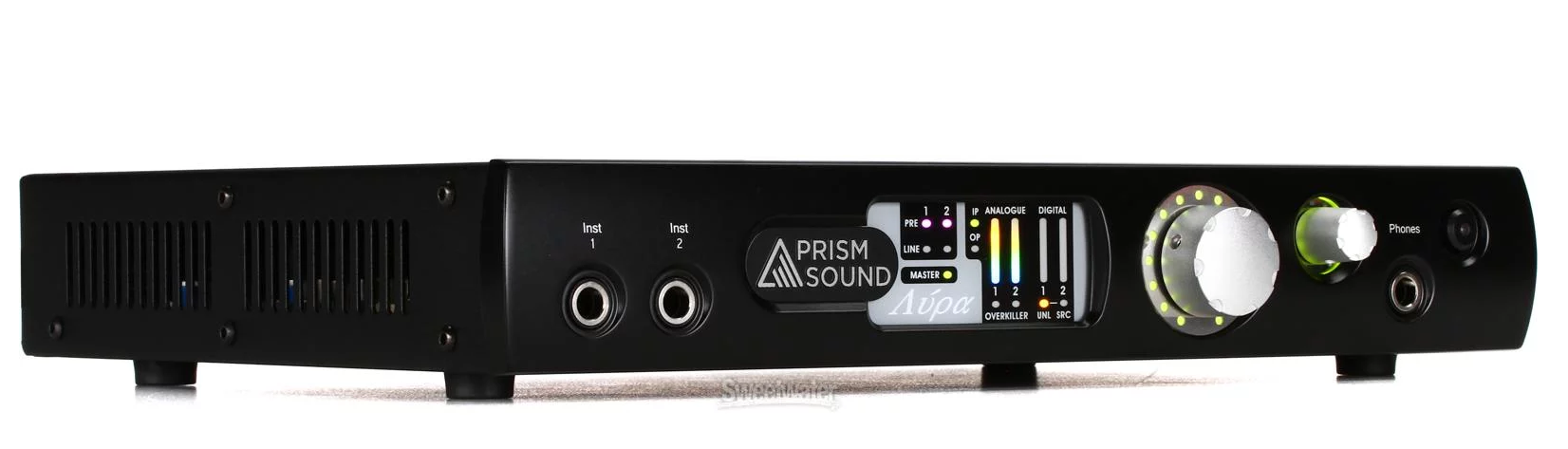

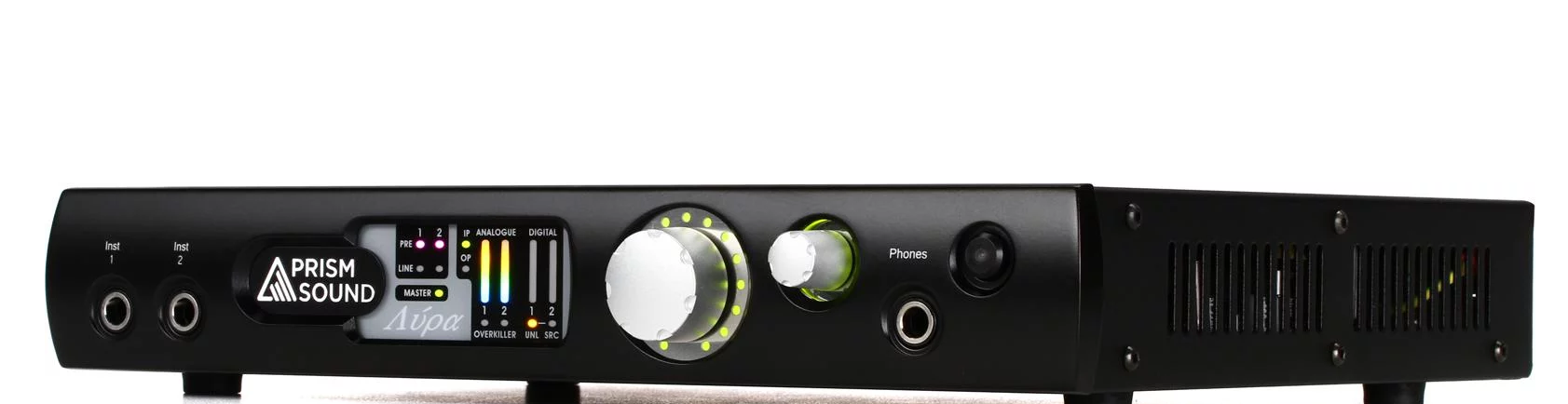

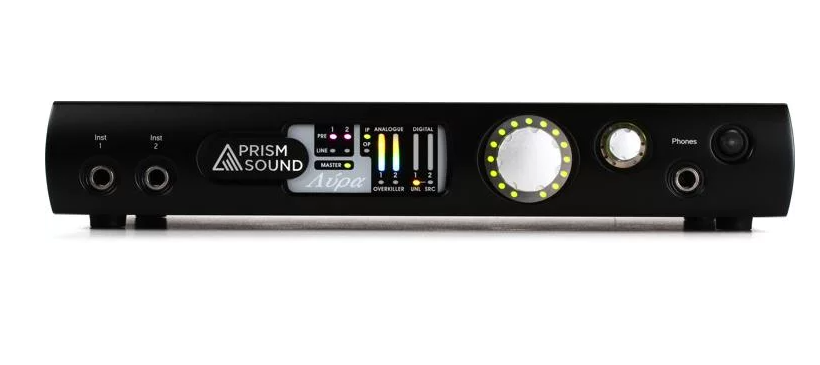

Prism Sound Lyra 2 2 x 4 USB Audio Interface

The Pinnacle of Compact Audio Interfaces

Prism Sounds’ Lyra 2 combines ultra-stable clocking, reference-grade AD/DA conversion, and two world-class microphone preamplifiers to deliver a sonically superior compact USB audio interface. For small project studios or traveling producers who are uncompromising when it comes to fidelity, the Prism Sound Lyra 2 is an ideal choice, with just the right amount of control and connectivity for vocal sessions and overdubs. An intuitive software control panel offers access to advanced features, including M/S functions, soft clipping, and adding additional channels via optical input. Highly regarded by discerning engineers at Sweetwater, Prism Sound has a matchless reputation for providing pristine digital audio. For unmatched audio quality in a compact format, you just can’t beat the Lyra 2 USB audio interface from Prism Sound.

Prism Sound Lyra 2 2 x 4 USB Audio Interface Features:

• USB interface and AD/DA converter with industry-leading clocking and conversion
• Reference-grade clocking for ultra-low jitter and maximum digital accuracy
• 2 pristine mic/line/instrument preamps
• 4 analog line outputs and headphone out
• ADAT I/O supports up to 8 additional channels
• S/PDIF input and output can be used for AES3 signals with included adapter cables
• Lyra Controller applet for Mac and PC provides comprehensive input/output control, signal routing, foldback mixing, and more
• Overkiller soft limiter available on all analog inputs to protect against digital clipping
• Verifile technology allows you to monitor signals or analyze audio files for data corruption

Tech Specs

• Type:USB Audio Interface
• Computer Connectivity:USB 2.0
• Form Factor:Rackmount
• Simultaneous I/O:2 x 4
• Number of Preamps:2 x mic/line/instrument
• Phantom Power:Yes
• A/D Resolution:Up to 24-bit/96kHz

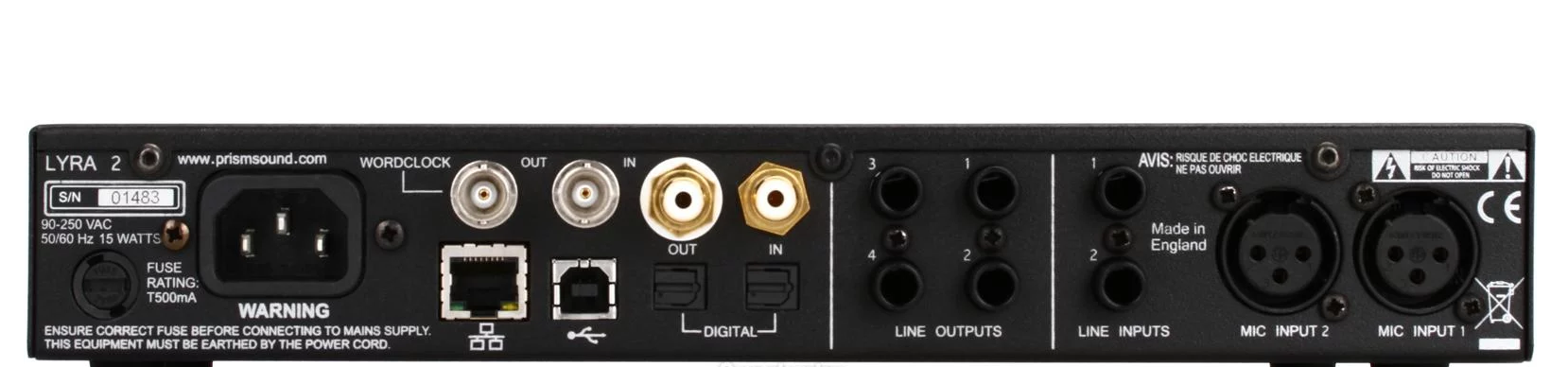

• Analog Inputs:2 x 1/4" (instrument), 2 x 1/4" (line), 2 x XLR (mic)
• Analog Outputs:4 x 1/4" (line)
• Digital Inputs:1 x Coax (S/PDIF, ADAT), 1 x Optical Toslink (S/PDIF, ADAT)
• Digital Outputs:1 x Coax (S/PDIF, ADAT), 1 x Optical Toslink (S/PDIF, ADAT)
• Headphones:1 x 1/4"
• USB:1 x Type B
• Data I/O:Ethernet
• Clock I/O:2 x BNC (in/out)
• Software:Prism Sound Ultimate Collection Software Bundle (Traktion DAW, Virtual Synths, FX Plug-ins, SADiE 6 Sound Suite)
• OS Requirements - Mac:OS X 10.9.5 or later
• OS Requirements - PC:Windows 7 SP1 or later
• Rack Spaces:1U
• Height:3.75"
• Width:19.01"
• Depth:9.52"
• Weight:4.62 lbs.
• Manufacturer Part Number:Lyra-2
