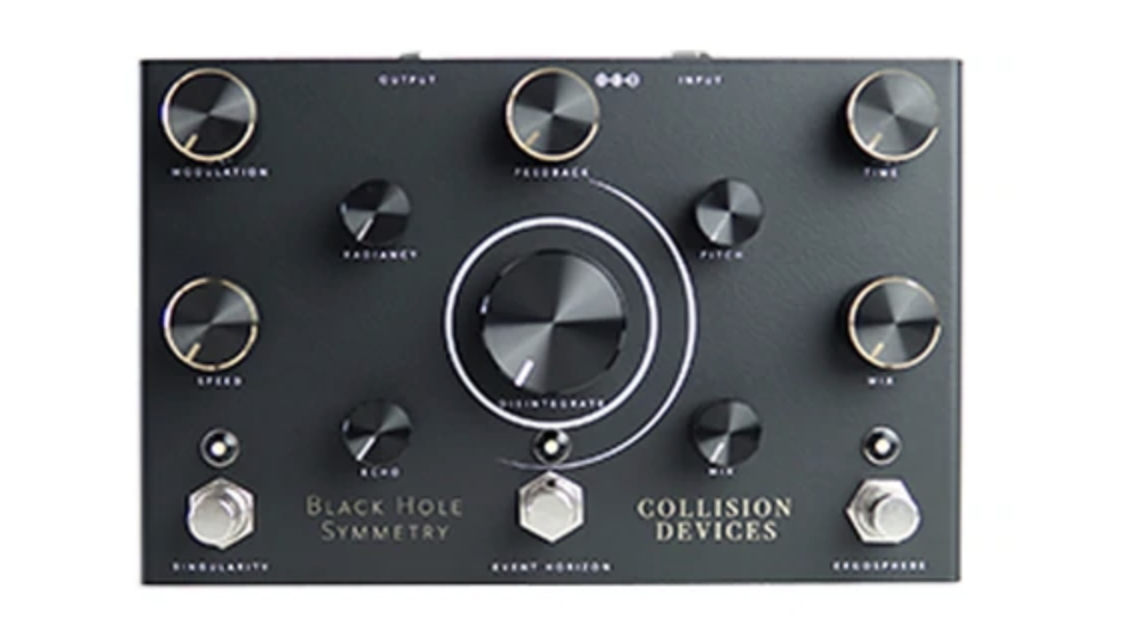

Collision Devices Black Hole Symmetry Delay/Reverb Pedal

Destruction Fuzz

The single setting "Disintegrate" allows you to raise your sound. Forget the fact that your drummer plays loudly.

Pitch shifted Reverb

Long reverb based on the FV1 chip. Harmonizes the reverb signal with a pitch shifter.

Modulated Delay

Based on the PT2399 chip to have a warm echo. The echo signal is modulated by two oscillators.

Desintegrate: Volume setting with a huge fuzz. Protect your ears please.

Mix: Proportion of wet signal in the mix

Echo: Echo time (max 15s)

Radiancy: Proportion of pitch shifter in the echo signal

Pitch: Shifts the pitch of the note

Mix: Proportion of wet signal in the mix

Time: Time between each repetition (From 0s to 1s)

Feedback: Number of repetitions

Modulation: Proportion of modulation in the delay signal

Speed: Speed of the main oscillator

Trimmer: Speed of the triangle oscillator

Collision Devices Black Hole Symmetry Delay/Reverb Pedal Features:

• Maximum current draw: 250 mA
• Imput Impedance: 1 MOhm
• Size: 119 x 116 x 56mm
• Voltage: +9V DC (negative center)
• Output Impedance: 1 KOhm
• Weight: 200gr
• The use of an isolated power supply is recommended for powering all Collision devices Pedals.
• Power supply not included.
• The pedal is true bypass
• Lifetime warranty
