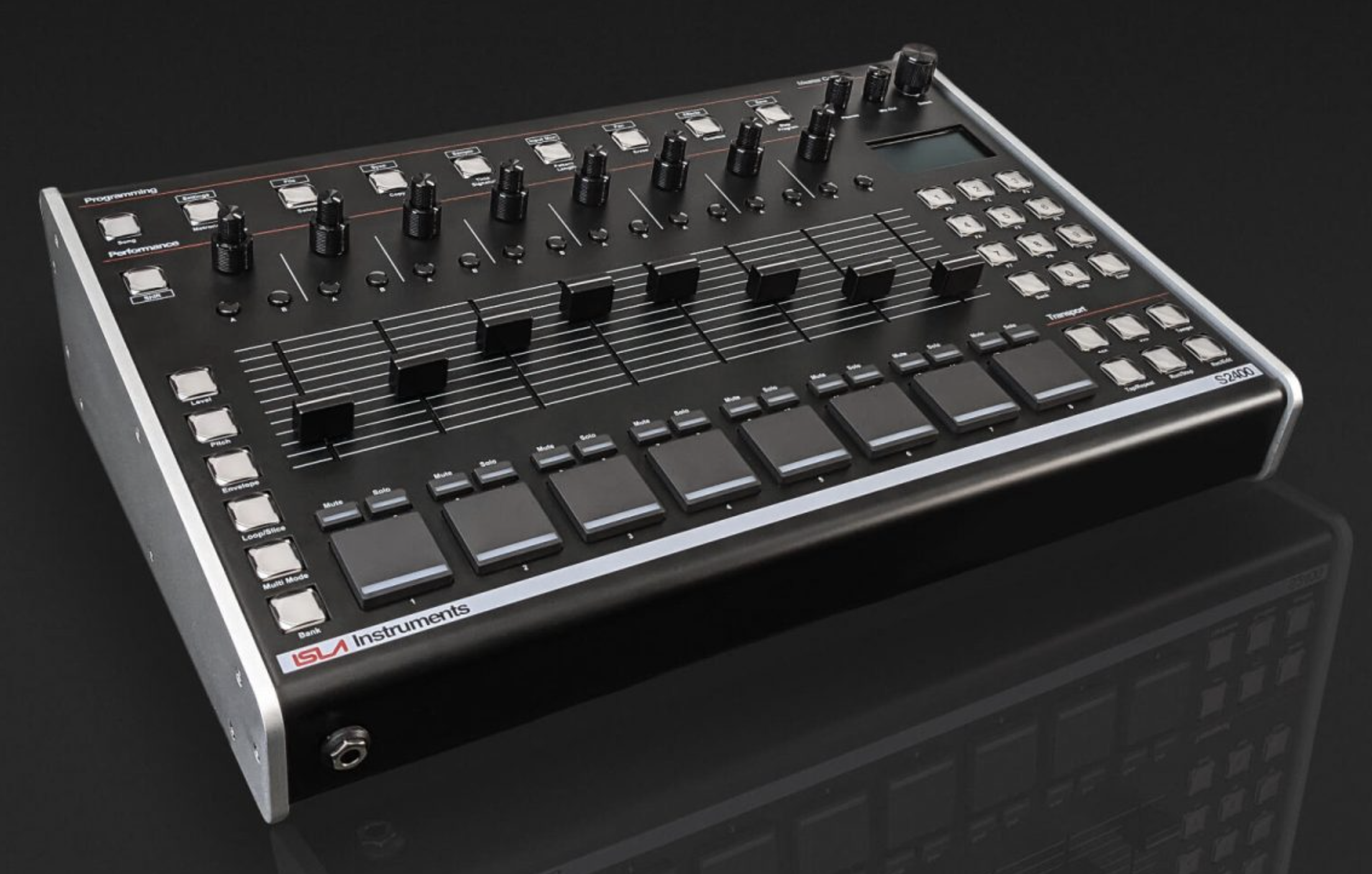

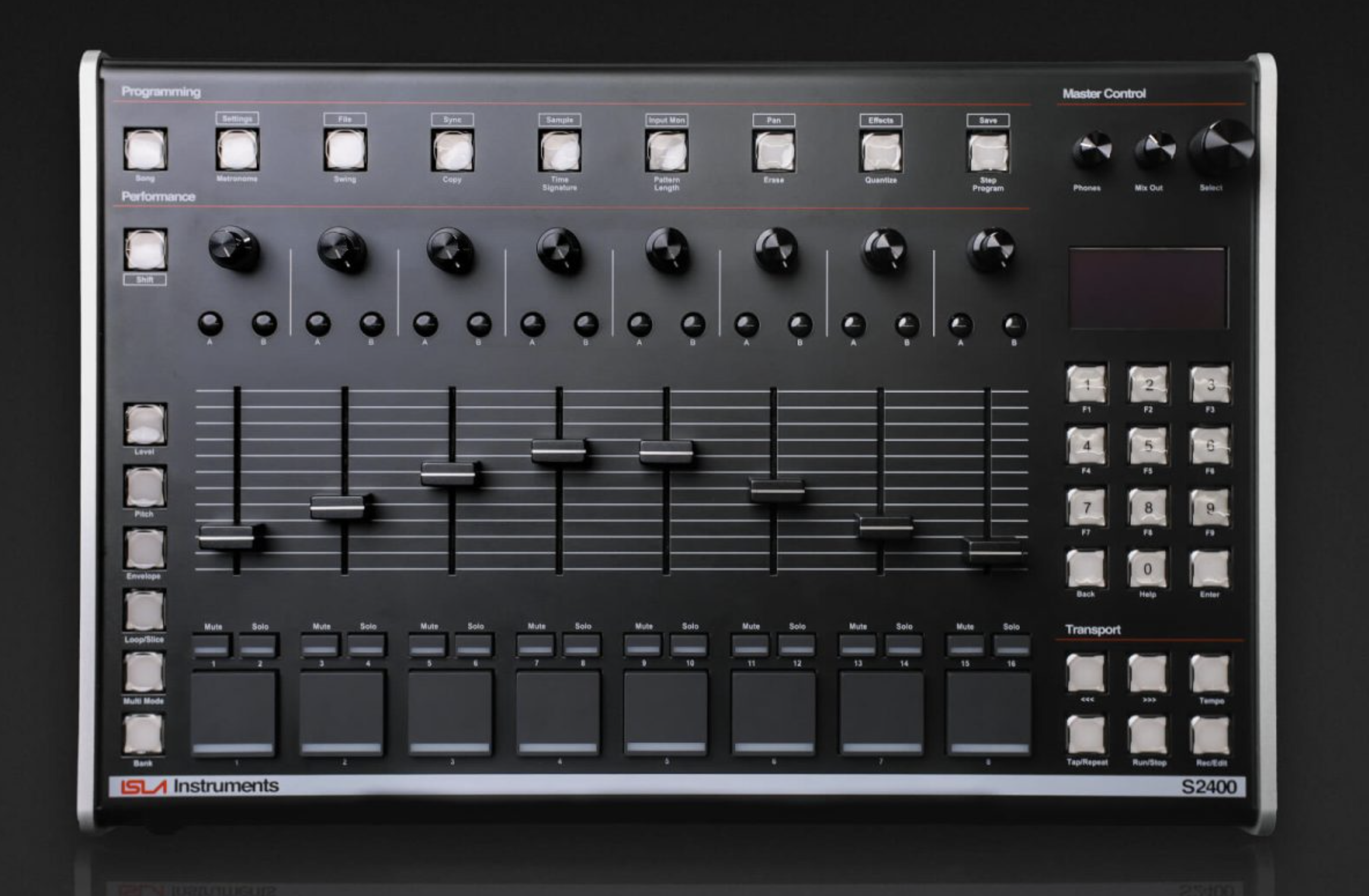

ISLA Instruments S2400

www.music-blvd.com

S2400 Specifications

Sampler / Audio

• 16-Bit 48Khz ‘Hi-Fi’ Sampling/Playback Engine
• 12-Bit 26Khz ‘Classic’ Sampling/Playback Engine
• Engine type assignable to each of the 32 sample slots
• Sample up to 21.5 minutes per slot (Classic / Mono),
  5.5 minutes (Hi-Fi / Stereo)
• Simultaneous (Full Duplex) playback and record with 8 channel LiveLooping functionality.
• On-screen waveform display (slice audio, set loop-points with ease)
• 128 MB of built-in factory drum kits (from some of our featured beta team)
• Independent Headphone output for monitoring (effectively 2 extra channels)
• DSP based LP/HP Filtering per track (more FX planned for future)

Sequencer

• Multiple sequence entry methods: Live recording, Step Sequence, Piano Roll GUI, TR x0x Style
• 32 Audio Tracks (any 8 playable at a time)
• 32 MIDI Tracks (for sequencing external equipment)
• 96 PPQN Clock
• Per track quantization and swing (including classic mode)
• Patterns are up to 100 measures, any time signature
• All parameters (level, pitch, envelope, filters) configurable per pattern step
• Song mode

Hardware

• Bright 128 × 64 pixel OLED display (viewable from any angle)
• Ultra High quality Grayhill Optical Data Entry Encoder
• 8 x 60mm Professional Dual Rail Faders
• 8 x Dual ‘concentric’ Pro-Audio rotary pots
• Broadcast Equipment grade A/V backlit pushbutton switches
• Tactile silicone pads backlit with RGB LEDs
• SD Card storage (up to 1TB currently tested)
• Classic (OG) input and output analogue filtering circuitry.

I/O

• MIDI In/Out/Thru (Standard 5-pin DIN)
• 2 × 1/4” Stereo Mix Out jacks (psuedo balanced)
• 8 × 1/4” Individual audio out jacks (psuedo balanced)
• 4 × 1/4” External input jacks (with adjustable pre-amp modes)
• 2 × Stereo RCA Line/Phono Inputs (with dual phono pre-amps)
• Hi-speed USB 2.0 device port. (USB Audio/MIDI)
• USB Host port (connect external USB peripherals, MIDI controllers etc).
• 3.5mm Clock/trigger in and out jacks (to sync/trigger vintage equipment or modular synths)
• Universal Voltage100-250V AC Mains powered.

Physical

• Rock Solid 16Ga Cold Rolled Steel enclosure with 6mm Anodised aluminium sidewalls.
• Aluminum knobs
• Dimensions: (Including knobs, jacks, feet)
  Imperial: W18” x D12” x H5” (back) 3” (front)
  Metric: W460mm x D310mm x H130mm (back) 80mm (front)
• Weight: approximately 13lbs / 6Kgs (metric)
