AJH Synth MiniMod Transistor Core VCO

AJH SYNTH MINIMOD TRANSISTOR CORE VCO

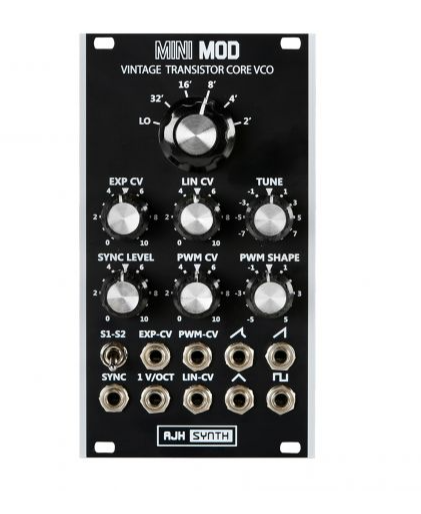

The AJH Synth MiniMod VCO is a Eurorack version of the discrete transistor core oscillator found in the classic Moog Model D. The module's front panel features a switchable octave section, four waveform outputs, exponential and linear modulation inputs, and two distinct sync modes.

MINIMOD TRANSISTOR CORE VCO FEATURES

• Moog Model D Oscillator emulation with same discrete transistor core of original oscillator
• Switchable Octave Selection: LO, 32', 16', 8', 4', 2'
• 4 Independent Waveform Outputs: "Sharktooth", Sawtooth, Square, Triangle
• Switchable Oscillator Sync modes: S1 and S2
• Sync Input
• Sync Input Level Control
• Exponential CV Input: ±5V
• Exponential CV Input Level Control
• 1V/OCT Input: ±7V
• Pulse Width Modulation (PWM) CV Input: ±5V
• PWM CV Input Amount Control
• PWM Shape Control
• Linear CV Input: ±5V
• Linear CV Input Level Control
• Tune Control
