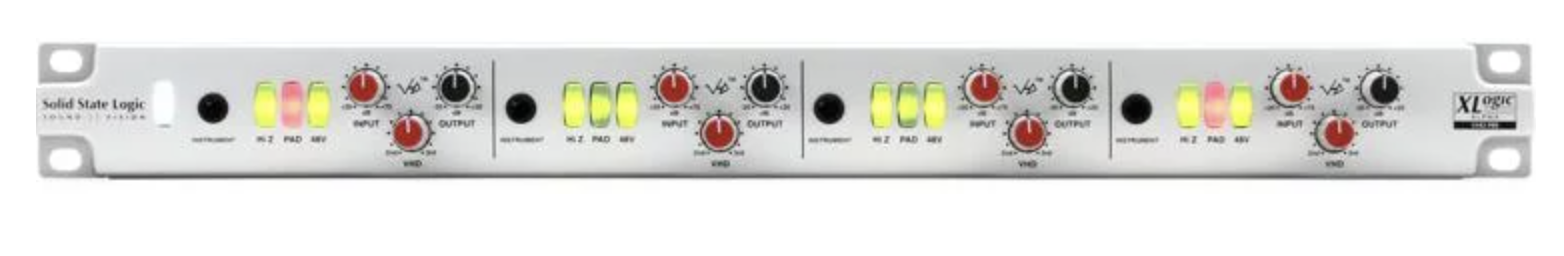

Solid State Logic Alpha VHD 4-channel Microphone Preamp

• SSL quality and innovation
• Variable Harmonic Drive
• An array of controls

Based on the VHD circuit from SSL's Duality console, the VHD Pre adds four SSL mic preamps to any line level DAW audio interface, transforming it into a professional quality, multi-channel analogue recording system. These preamps provide up to 75dB of gain, so everything from robust line-level instruments to delicate ribbon mics will benefit.

The preamps are combined with independent Variable Harmonic Drive circuits that use 100% analog signal paths to generate rich harmonic distortion - adding SSL analogue attitude to your digital recordings. As you increase the input gain, the Variable Harmonic Drive circuit introduces a blendable mix of 2nd or 3rd harmonic distortion to your source material, taking it from gentle tube-style warmth to transistorized clipping. It's a new world of overdriven possibilities.

You get an array of controls, including illuminated 20dB pad switches, hi-Z switches, individual input, output, and Variable Harmonic Drive controls for each channel. You can really take control of your signal and add character with this preamp.

• Ultra-clean SSL preamp with 75dB of gain
• 48V phantom power
• 20dB pad switches that illuminate to indicate overload
• hi-Z switches to accommodate mic, line and instrument level signals
• Four independent Variable Harmonic Drive systems
• Front panel 1/4" jack instrument/line level inputs with passive DI type impedance detection and level matching
• Individual input, output and VHD controls for each section
• Rear panel XLR mic/line inputs and XLR output
