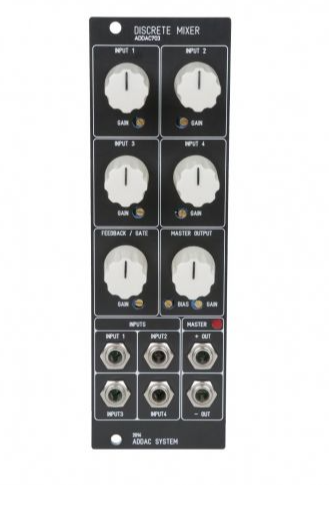

ADDAC System ADDAC703 Discrete Mixer

ADDAC SYSTEM ADDAC703

The ADDAC703 Discrete Mixer is not as simple as it seems on the surface. Can a mixer be interesting? Hell yes it can. Based on the classic Moog CP-3, the 703 is a powerful tool perfect for mixing signals and sculpting sounds.

There are four inputs with gain and also feature a trimmer can be adjusted for gain up to x100. Above unity gain, the signal will begin to soft clip, adding pleasant harmonics to the signal. A feedback/gate control not found on the original CP-3 adds another layer of distortion to the signals by feeding the main output back into the mix. At high enough settings it turns into a gating effects that opens less the further clockwise the control is turned.

The final output volume is controlled by a master output control. There are both positive and negative outputs available which offer slightly different flavors of clipping. A bias trimmer offsets the output voltage from zero volts and can have dramatic effects on the output signal.

ADDAC703 FEATURES

• Four channel mixer
• Gain up to x100
• Turning the input gain above unity gain adds pleasant harmonic distortion
• Feedback/gate control for extra distortion
• Master output control for final level
