Step Up To World-class PMC Main Monitors

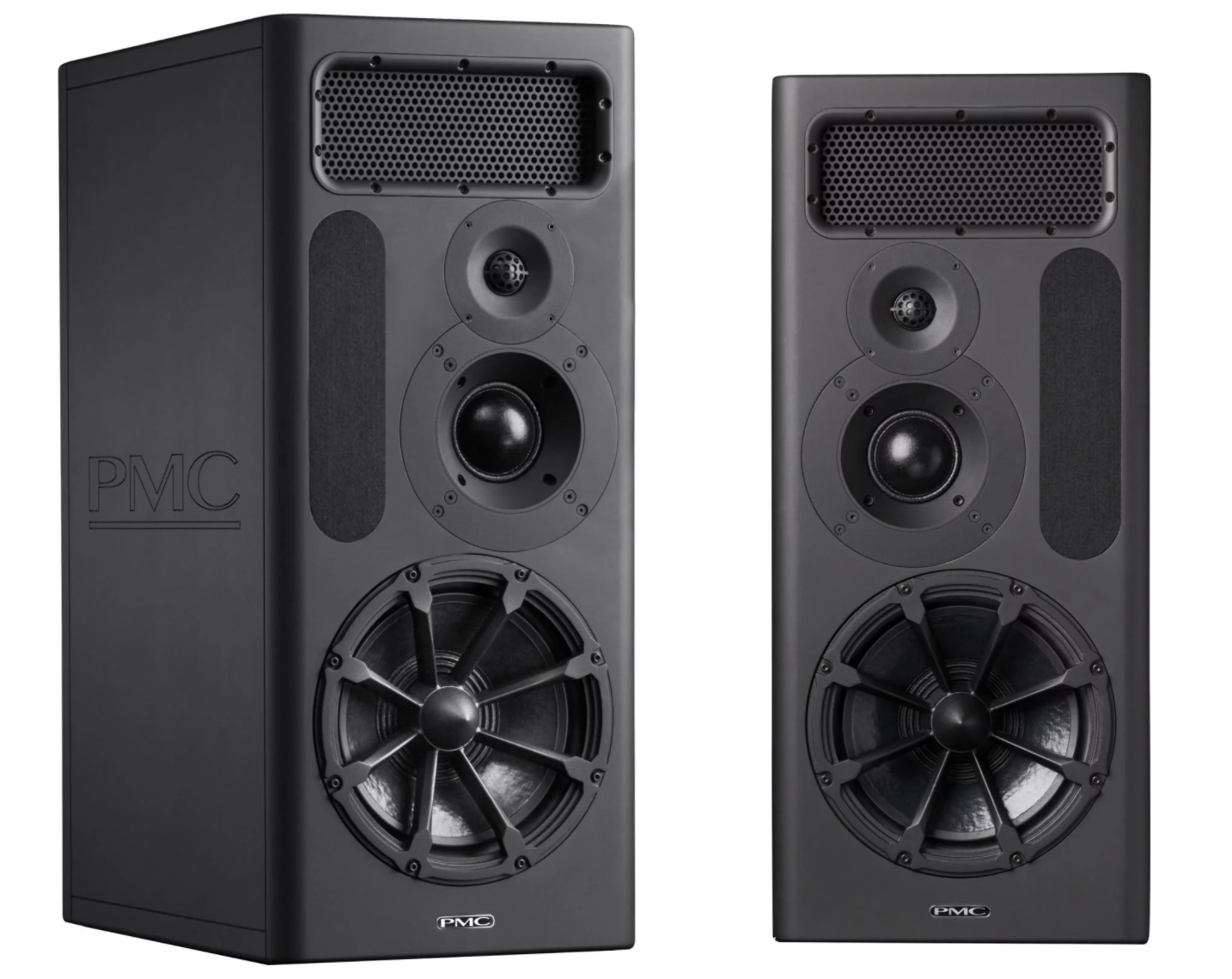

Soffit-mounted or on dedicated stands, the PMC MB3-A delivers reference-grade main monitor performance for midsized recording, mixing, broadcast, and mastering facilities. It also makes a superb rear surround speaker for large multichannel music studios and film rerecording stages. Employing bespoke PMC drivers and custom triamplifaction, the 3-way MB3-A active reference monitor delivers smooth frequency response from 20Hz to 25kHz, courtesy of PMC’s proprietary Advanced Transmission Line (ATL) technology, and is also capable of producing high SPLs up to 126dB without distortion or loss of definition, and without listening fatiguing during marathon sessions. Engineers at Sweetwater trust PMC monitors to tell the truth, session after session, citing their supremely natural sound and ability to perform with composure at any volume.



Advanced Transmission Line Technology delivers cleaner, deeper bass

Since their first professional studio main monitor design was embraced by the music, broadcast, and post-production industries in the early 1990s, PMC has become famous for their proprietary Advanced Transmission Line (ATL) technology. A transmission line is a method of loading a low-frequency speaker in a cabinet so that undesirable frequencies radiating from the rear of the driver are absorbed, allowing only the lowest frequencies to pass. These emerge from a front-baffle vent, which effectively acts as an auxiliary LF driver that extends bass response while absorbing undesirable low frequencies that contribute to harmonic distortion, clouding the upper bass and midrange. One of the keys to PMC speakers’ natural, highly detailed sound, ATL technology delivers deeper bass and higher output from smaller cabinets, while providing rich, full sound at any listening level. And because ATL bass extension doesn’t vary with volume levels, the low end is well-defined and always in balance, even when listening quietly.

Laminair aerodynamic vent for superior performance

PMC’s ATL Advanced Transmission Line moves under-pressure air at high speeds, so reducing drag and turbulence is important for lowering resistance, increasing efficiency, and eliminating air noise. PMC’s Laminair vent accomplishes this using aerodynamic principles borrowed from high-performance engineering for F1 and Le Mans race cars, creating a smooth laminar airflow at the transmission line outlet. The combination of ATL and Laminar technology results in superior bass timing and an ultra-wide dynamic range, which helps PMC loudspeakers deliver a supremely natural sound and perform with complete composure at any volume.

Mixes that translate

There’s no substitute for midrange clarity in a monitor. This is the heart of your mix, and it remains relevant regardless of the playback system. That’s why you can spend hours struggling to achieve a perfect balance and end up with nothing but frustration, listening fatigue — and a mix that doesn’t “translate.” In addition to improving bass response, PMC’s ATL and Laminair also eliminate troublesome frequencies and port noise that can mask the midrange in other types of designs. As a result, you’ll find it’s easier to place, for instance, vocals and solo instruments in a mix, and have that balance translate to the world outside your studio.

PMC MB3-A 3-way Active Reference Monitor (Pair) Features:

  • 3-way ATL active reference monitor
  • Frequency response: 20Hz–25kHz
  • Custom triamplifaction: HF 275W, MF 550W, LF 1200W
  • Maximum SPL: 126dB @ 1m
  • Effective ATL length: 3 meters
  • Crossover frequencies: 380Hz, 3.8kHz
  • Bespoke PMC drivers

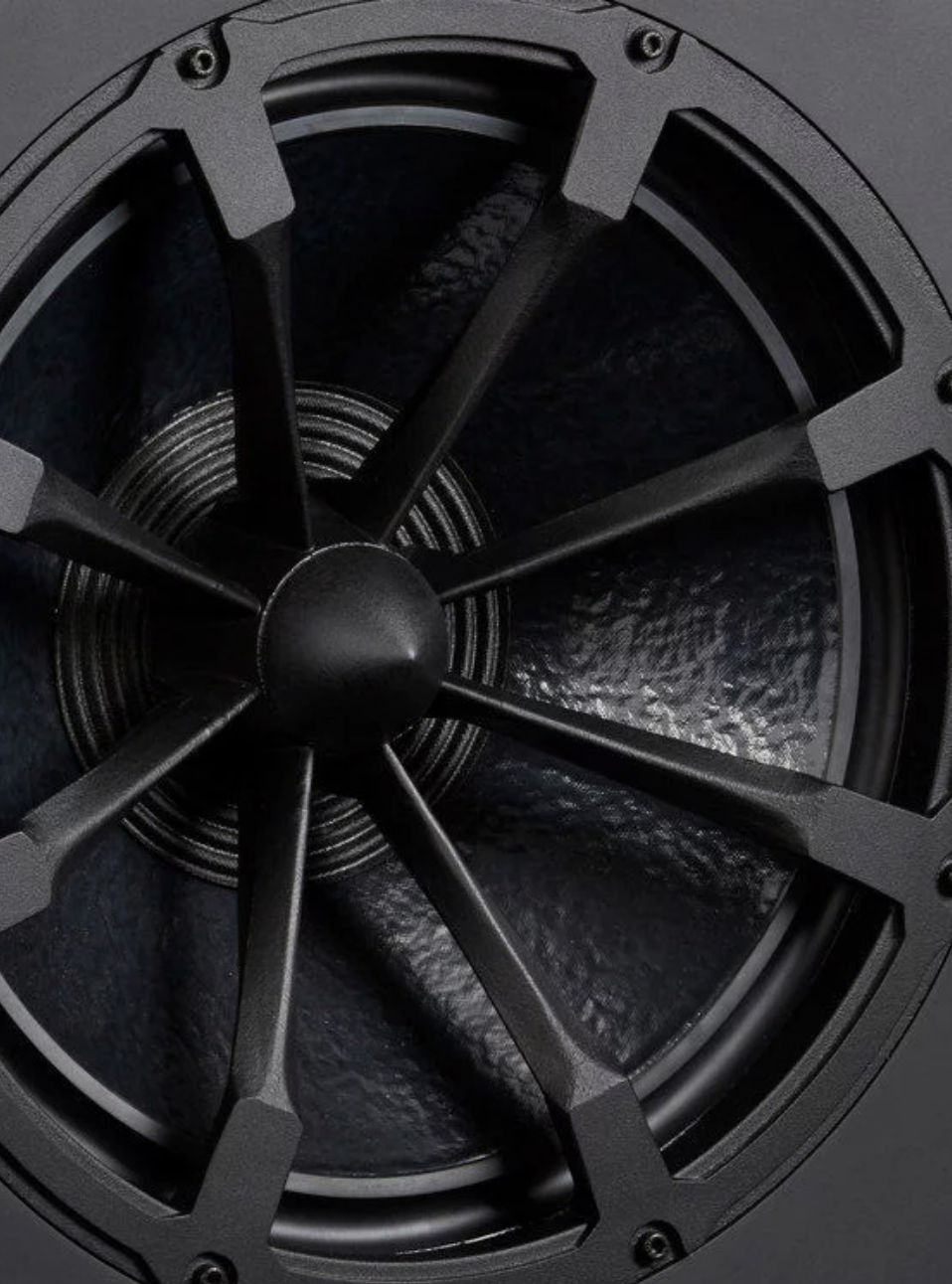

  • Woofer: 12" Radial
  • Midrange: 75mm soft-dome
  • Tweeter: 34mm soft-dome with acoustic radiator
  • I/O: balanced analog input, digital AES3 input (24-bit/96kHz)
  • Analog input sensitivity adjustable from +4dB to +20dBu
  • Onboard EQ: LF shelf ±8dB, HF shelf ±8dB
  • Dimensions: 34.2" H x 15" W x 21"D
  • Weight: 108 pounds

Tech Specs

  • Powered:Yes
  • Power Configuration:Tri-amped
  • LF Driver Size:12" Woofer
  • LF Driver Type:Radial driver
  • MF Driver Size:3"
  • MF Driver Type:Soft-dome
  • HF Driver Size:1.33" Tweeter
  • HF Driver Type:Soft-dome with Acoustic Radiator
  • LF Driver Power Amp:1200W
  • MF Driver Power Amp:550W
  • HF Driver Power Amp:275W
  • Total Power:2025W
  • Frequency Response:20Hz-25kHz
  • Crossover Frequency:3800Hz
  • Maximum Peak SPL:126 dB SPL @ 1m
  • Input Types:2 x Analog XLR (AES/EBU), 2 x Digital XLR (AES/EBU)
  • Output Types:2 x Analog XLR Thru (AES/EBU), 2 x Digital XLR Thru (AES/EBU)
  • Other I/O:2 x RJ45 (in/thru)
  • Enclosure Type:Front Ported
  • Enclosure Material:Medite Resonance Damped Composite
  • Height:34.2"
  • Width:15"
  • Depth:21"
  • Weight:108 lbs.
  • Manufacturer Part Number:MB3A
