Paul Reed Smith HDRX 50 Watt Amplifier Head - 107593-ST

Paul Reed Smith HDRX 50 Watt Amplifier Head - 107593-ST Features:

GENERAL

• Available Configurations: Head Only

ELECTRONICS

• Wattage: 50

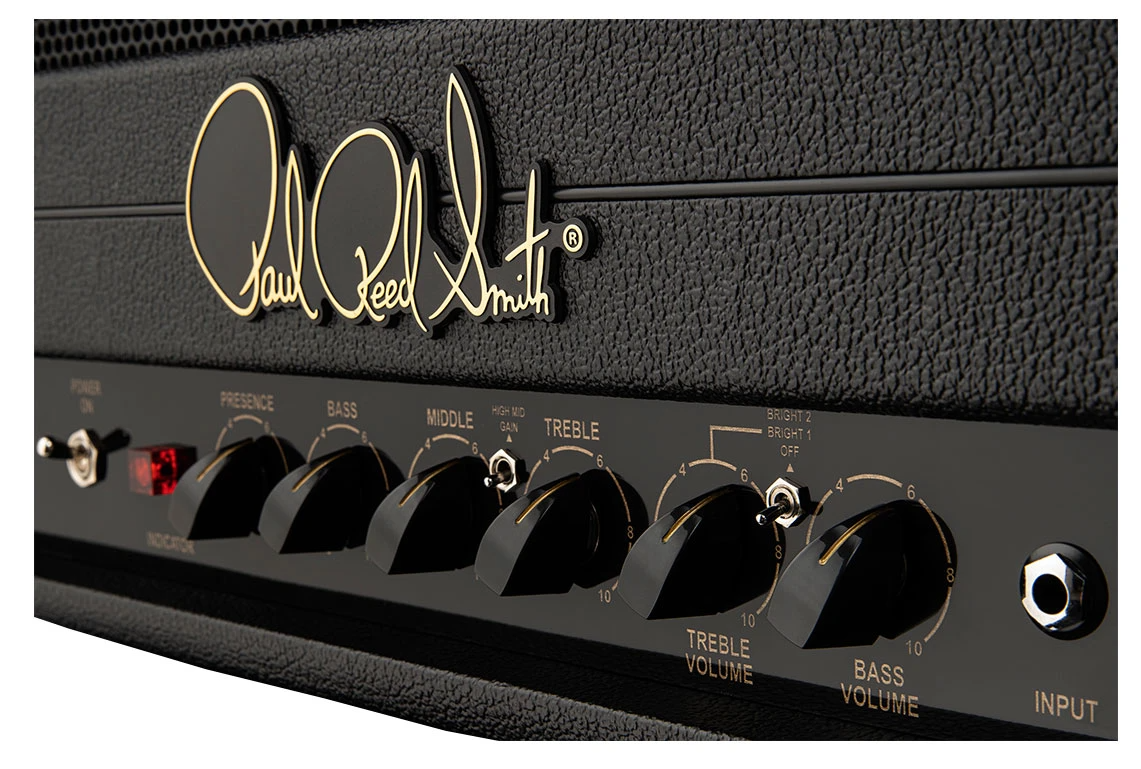

FRONT PANEL CONTROLS

• Channel 1 Controls: Bass Volume with common Presence, Bass, Middle, Mid Gain (on/off), Treble, Lead Volume, Bright (Off, Bright 1, Bright 2)
• Channel 2 Controls: Lead Volume with common Presence, Bass, Middle, Mid Gain (on/off), Treble, Bright (Off, Bright 1, Bright 2), Bass Volume

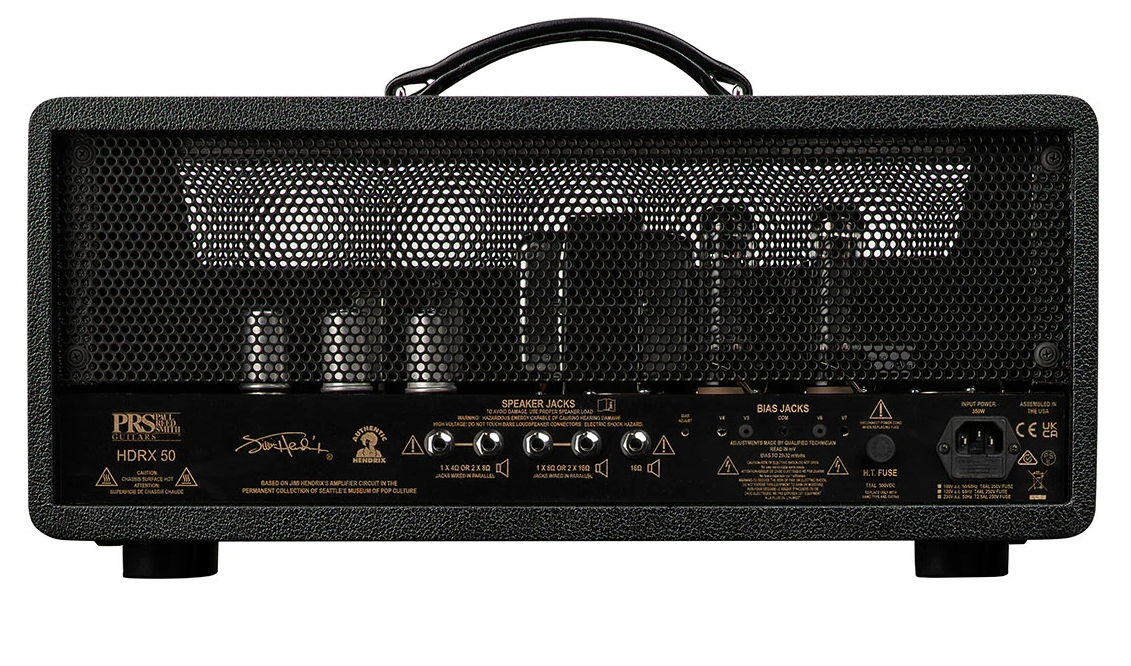

BACK PANEL FEATURES

• Inlet: Fused Power Inlet (IEC)
• Bias: Adjustable
• Extension Speaker Jacks: 5
• Ohm Switching: (2) 4 ohms, (2) 8 ohms, (1) 16 ohms

HARDWARE

• Covering: Black Tolex
• Piping: Black
• Output Transformer: Straight Edge 50-Watt Output

TUBES

• Power Tubes: 2x New Sensor EL34EH
• Preamp Tubes: 3x JJ ECC803S

PREAMP TUBE POSITIONS & FUNCTIONS

• V1: Input
• V2: Cathode Follower
• V3: Phase Inverter

MEASUREMENTS

• Amp Width: 21.5"
• Amp Depth: 10"
• Amp Height: 10"
• Amp Weight: 23.2 lbs
