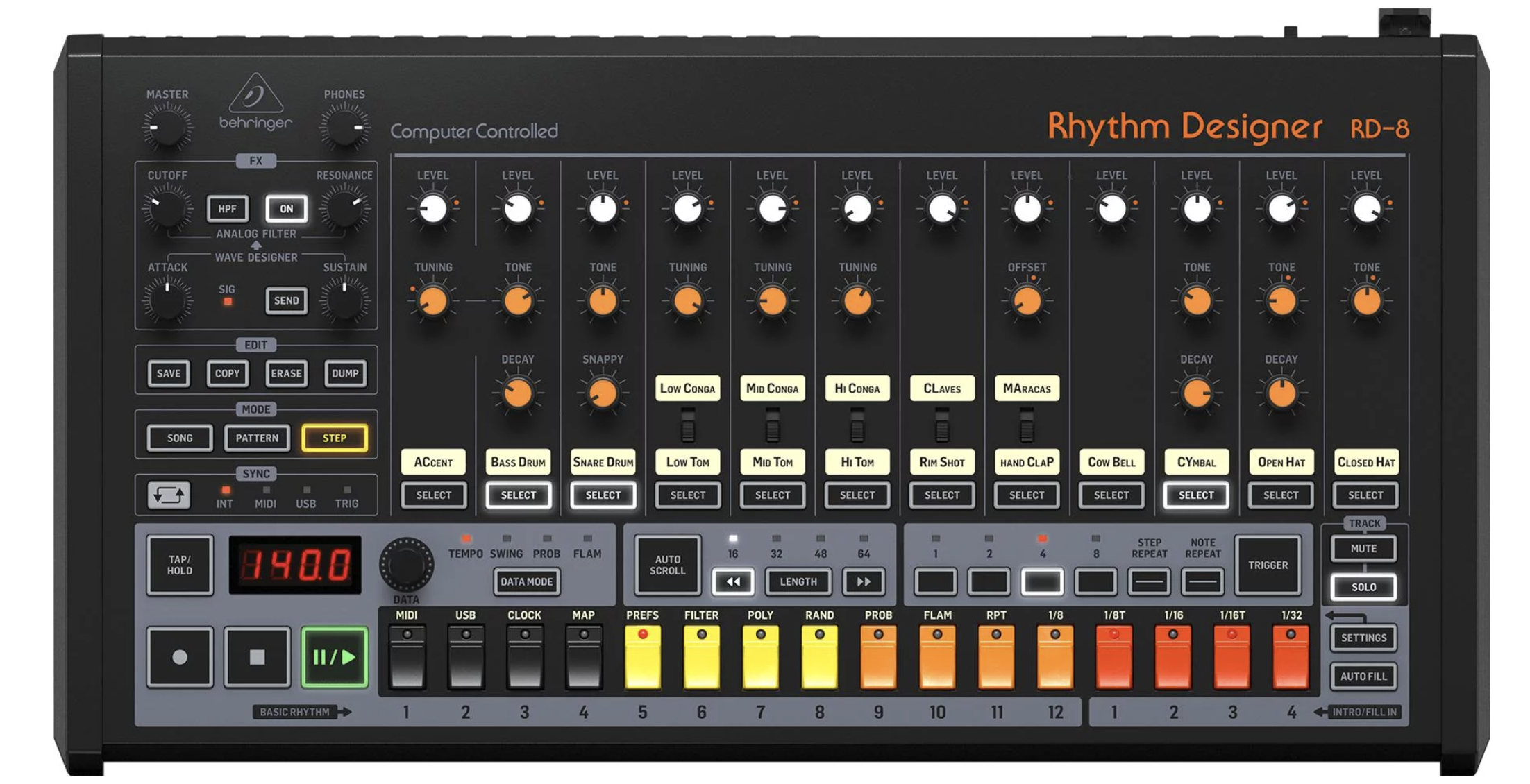

Behringer Rhythm Designer RD-8 Mk2 Analog Drum Machine

16 analog drum sounds

Just like the original, the Behringer RD-8 offers 16 analog drum sounds to create with. Accents can be added to every sound for more dynamic performances. And to support modern workflows, the RD-8 features 11 independent outputs, allowing you to process and record your sounds independently. Speaking of workflow options, you’ll also find USB connectivity, MIDI in/out/thru, trigger outputs, and sync I/O.

Craft full songs and performances with Pattern Mode and Song Mode

Starting from its 64-step sequencer, the RD-8 is capable of saving up to 256 custom patterns. From there, you can use Pattern Mode to arrange patterns into complete songs, and even program the number of repeats for each song part. For full performances, Song Mode allows you to chain complete songs together — perfect for live sets or more complex arrangements. Up to 16 songs can be saved for instant recall at any time.

Automatable stereo analog filter

The RD-8 adds to the sonic flexibility of the original unit by adding a stereo analog filter. This dual-mode (LPF/HPF) filter gives you dedicated cutoff and resonance controls, and knob movements can be recorded as part of your pattern

Behringer RD-8 MKII Analog Drum Machine Features:

• Re-creation of a classic analog drum machine with 16 sounds
• V662 OTA sound chip provides the most authentic 808 experience yet
• Modern workflow enhancements include USB connectivity and MIDI I/O/T
• Trigger outs and Sync I/O for integrating modular gear
• Craft patterns with the 64-step sequencer, with support for polyrhythms, step repeats, note repeats, real-time triggering, track muting, and track soloing
• Built-in effects bus with stereo analog filter (HPF/LPF) and Wave Designer
• Pattern mode allows you to chain patterns into full songs, Song mode chains songs into a complete performance or extended composition
• Store a total of 256 patterns and 16 full songs
• Songs and Patterns can be imported/exported during playback for unlimited performance potential
• MIDI in/out/thru and USB connectivity for comprehensive external control
• Sync with other gear via USB, MIDI, Clock, or internal clock
• 11 analog outputs allow you to record and process sounds individually
• Probability parameter allows you to create grooves that vary over time

Tech Specs

• Type:Analog Drum Machine with Sequencer
• Pads:16 x Step Buttons
• Sounds:Reproduction 662 OTA Chip: 16 x Drum Sounds
• Polyphony:11-voice (12 including global accent)
• Patterns:256 (16 songs, 16 patterns each)
• Sequencer:64 steps
• Effects:Dual-mode Analog Filter, Wave Designer
• Analog Inputs:1 x 1/4" (return)
• Analog Outputs:1 x 1/4" TRS (main/mono), 11 x 1/4" TS (voice out)
• Headphones:1 x 1/4" TRS (stereo)
• MIDI I/O:In/Out/Thru/USB
• Other I/O:3 x 1/4" (trigger out), 1 x 1/8" (sync in), 1 x 1/8" (sync out)
• USB:1 x Type B 2.0
• Power Source:18V DC power supply (included)
• Height:3.0"
• Width:19.6"
• Depth:10.4"
• Weight:6.6 lbs.
• Manufacturer Part Number:000-EH902-00010
