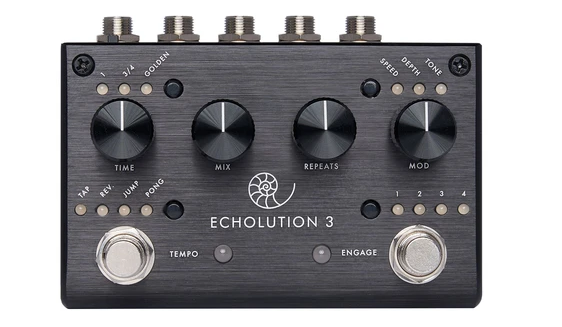

Pigtronix Echolution-3 Stereo Multi-tap Delay

Echolution 3 is a multi-tap stereo modulation delay offering a myriad of sound design options including reverse, jump, pong, modulation tempo sync, variable low pass filter, flexible signal routing and comprehensive MIDI control. Delay times ranging from 100ms to 5 seconds can be dialed in using the Time knob or via Tap Tempo using the left footswitch. A second delay tap can be set to the same length or a fraction of the main delay time to create rhythmic echoes. The ¾ fraction creates a dotted eight note delay, while the Golden fraction uses the sacred geometry of the Golden Ratio (.382) as the multiplier for the second tap. The multi-tap settings can be even further enhanced by the stereo ping pong effect, which causes the different delay taps to switch sides on each repeat. Store up to 4 presets, unlock hidden features with the Universal Remote footswitch, and design yet unheard delay lines. Runs on standard 9VDC.

Pigtronix Echolution-3 Stereo Multi-tap Delay Features:

MODEL ECHOLUTION 3

• MODEL NAME: Echolution 3
• SKU: E3
• FUNCTION: Stereo Multi-Tap Delay
• CATEGORY 1: Delay
• CATEGORY 2: Modulation
• EXPRESSION: TRS Remote / MIDI
• BYPASS: Buffered

ELECTRONICS

• VOLTAGE: 9VDC
• CURRENT DRAW: 100mA
• INPUT IMPEDANCE: High
• OUTPUT IMPEDANCE: 1k

BODY

• LENGTH (IN): 3.25
• WIDTH (IN): 4.5
• HEIGHT (IN): 2.2
• WEIGHT (LBS): 1
