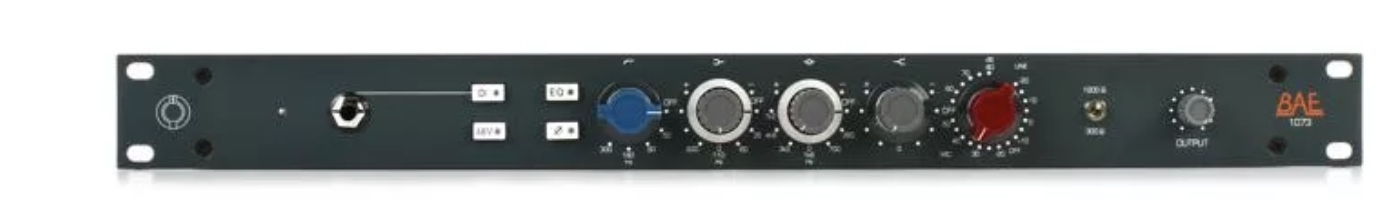

BAE 1073 Microphone Preamp & EQ

Definitive British Preamp/EQ
Neve 80 series consoles defined the sound of 1970s rock 'n' roll; their legendary 1073 preamp and EQ modules wrote the book on characterful mic preamplification and punchy equalization. Done up in classic RAF blue-gray livery, the BAE 1073 Rackmount nails the authentic sound of the vintage modules, using the same hand-wired, transformer-coupled Class A design and original-spec components like Carnhill St. Ives transformers, Elma switches, and Canford wire. With 80dB of gain on tap, the 1073 lets you capture subdued sources with your favorite ribbon mic. Cranking preamp gain enhances your tracks with tasty vintage-style coloration. A highpass filter lets you roll off mud, rumble, and other low-frequency content that can mar an otherwise perfect take. And the 1073's renowned 3-band EQ section can enhance anything. The BAE 1073. Take it from Sweetwater: this is the stuff of legend.












BAE 1073 Rackmount Features:

All Class A, hand-wired transformer-coupled design
80dB of gain on tap handles low-output ribbon mics
Highpass filter: Off, 50Hz, 80Hz, 160Hz, and 300Hz
3-band EQ section
HF: +/-16dB shelving, 12kHz fixed frequency
MF: +/-18dB peaking, fixed Q, selectable center frequencies at 360Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, and 7.2kHz
LF: +/-16dB shelving, selectable center frequencies at 35Hz, 60Hz, 110Hz, and 220Hz
Handles line-level inputs for added versatility
High-impedance DI for guitar, bass, synth, and other sources
Polarity reverse switch
Original-spec components include Carnhill St. Ives transformers, Elma switches, and Canford wire
Frequency response: 10Hz-55kHz (-3dB)
Mic input impedance selector switches between 1200 and 300 ohms
Line input impedance: 10k ohms; DI Input Impedance 150k ohms
Output impedance: 35 ohms
Common mode rejection ratio: 100dB min at 60Hz
Maximum output level: +27.4 dBu at 600ohms
Regulated linear power supply runs up to two channels




Tech Specs

Preamp Type: Solid State Mic/Line Preamp
Number of Channels: Single channel
Phantom Power: Yes
EQ: High/Low Shelving EQ, 3-band EQ (adjustable mid center frequency), High Pass Filters: 50Hz, 80Hz, 160Hz, 300Hz
Analog Inputs: 1 x XLR (mic), 1 x XLR (line), 1 x 1/4" (Hi-Z)
Analog Outputs: 1 x XLR
Frequency Response: 10Hz-55kHz (-3dB)
Rack Spaces: 1U
Power Source: External power supply included
Height: 1.75"
Depth: 9"
Width: 19"
Weight: 6 lbs.
Manufacturer Part Number: 1073WPS

www.music-blvd.com $3135
