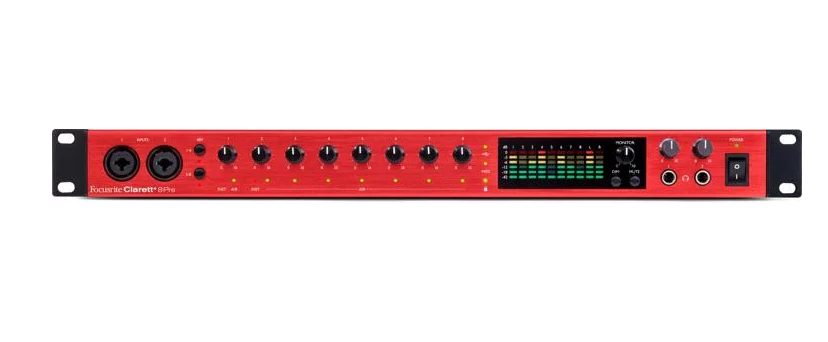

Focusrite Clarett+ 8Pre USB-C Audio Interface

Focusrite Clarett+ 8Pre USB-C Audio Interface Features:

• 8 Clarett+ mic preamps with Focusrite's proprietary Air feature
• Copious headroom, vanishingly low noise
• Upgraded digital conversion and clocking
• Generous I/O, enough for the whole band
• 8 analog inputs, 10 analog outputs
• Stereo S/PDIF, 8 channels of ADAT I/O
• 2 front-panel mic/line/instrument inputs
• Accessible metering and monitoring
• Intuitive, easy-to-use software mixer makes short work of configuring your monitoring and routing; provides quick access to internal hardware functions
• Record and monitor in real time with your favorite DAW plug-ins
• Create custom monitor setups for both you and your artists
• Focusrite's class-leading 24/192 conversion
• Word clock output for slaving external digital devices
• 6-segment, multichannel LED meter
• Monitor level control, plus dim and mute buttons
• 2 wide-dynamic-range front-panel headphone outs
• Included software from Focusrite and Brainworx
• Pairs perfectly with the Focusrite OctoPre
• 3-year warranty

Tech Specs

• Form Factor:Rackmount
• Simultaneous I/O:18 x 20
• Number of Preamps:8 x mic
• Phantom Power:Yes
• A/D Resolution:24-bit/192kHz
• Analog Inputs:8 x XLR-1/4" combo (mic/line)
• Analog Outputs:10 x 1/4" (line)
• Digital Inputs:1 x Coax (S/PDIF), 1 x Optical (ADAT)
• Digital Outputs:1 x Coax (S/PDIF), 1 x Optical (ADAT)
• Headphones:2 x 1/4"
• MIDI I/O:In/Out
• USB:1 x USB-C
• Clock I/O:1 x Word Clock
• Software:Focusrite Control
• Compatibility:Intel CPU
• OS Requirements - Mac:OS X 10.11 or later
• OS Requirements - PC:Windows 7 SP1 or later
• Rack Spaces:1U
• Power Supply:Standard IEC AC cable
• Height:1.73"
• Width:19"
• Depth:11.46"
• Weight:9.00 lbs.
• Manufacturer Part Number:AMS-CLARETT-PLUS-8PRE
