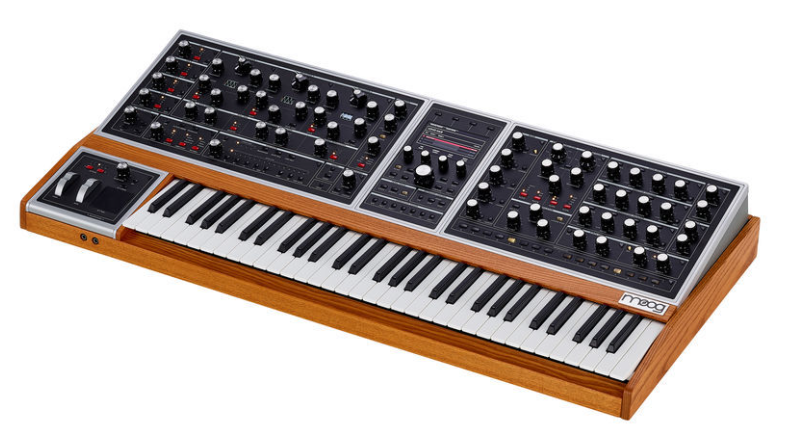

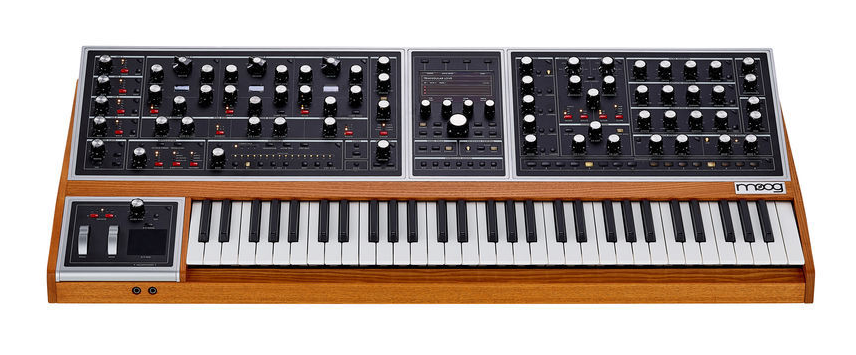

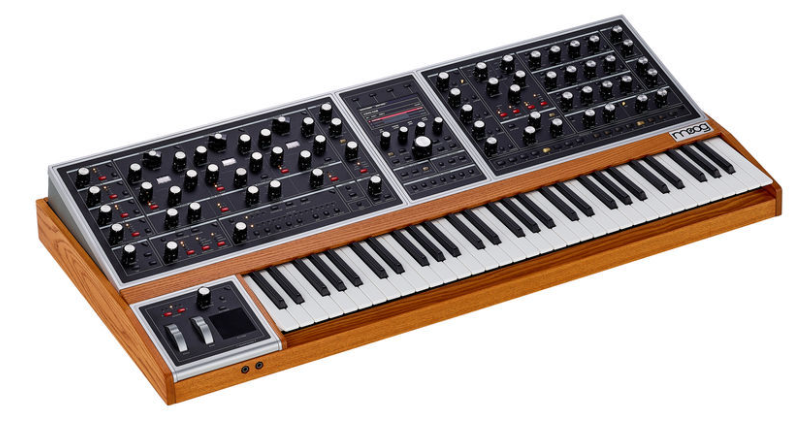

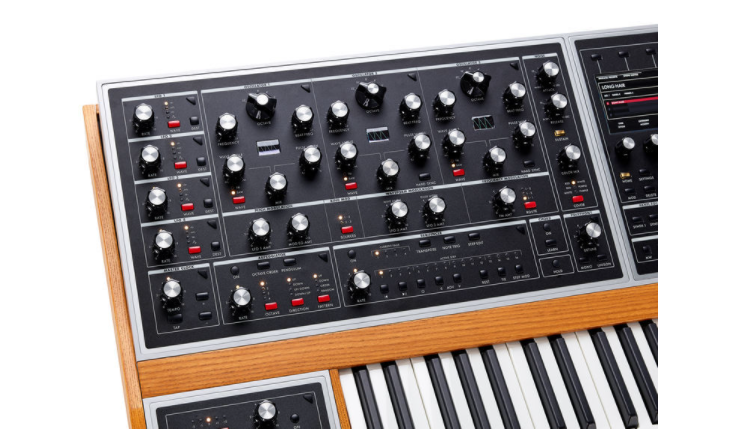

Moog One 8-voice Analog Synthesizer

Moog One Analog Synthesizer Features:

• 8- or 16-voice polyphony
• 3 VCOs per voice with waveshape mixing and OLED displays
• Unison mode (up to 48 oscillators on the 16-voice instrument)
• 2 filters per voice with filter mixing (2 multimode State Variable filters that function as a single filter, and a classic lowpass/highpass Moog Ladder filter)
• 3 DAHDSR envelopes per voice with user-definable curves
• 3-part multitimbrality
• Separate sequencer and arpeggiator per timbre
• Chord memory
• Dual-source noise generator with dedicated envelope
• Mixer with external audio input
• Ring modulation with selectable routing
• Oscillator FM and hard sync with selectable routing
• 4 assignable LFOs
• Premium 61-note Fatar TP-8S keybed with velocity and aftertouch

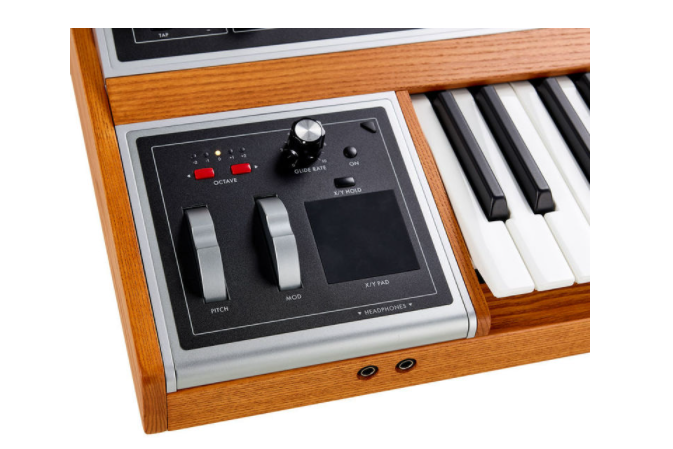

• Assignable pressure-sensitive X/Y pad
• Digital Effects (Synth and Master Bus)
• Eventide reverbs
• Selectable glide types
• USB and DIN MIDI
• Save, categorize, and recall tens of thousands of presets
• Create Performance Sets that make up to 64 presets accessible at the push of a button
• 2 x ¼" stereo headphone outputs
• 2 pairs of assignable ¼" outputs (supports TRS and TS)
• 4 x ¼" hardware inserts (TRS)
• 1 x ¼" external audio input (line-level)
• 1 XLR + ¼" TRS combo external audio input with trim knob
• 9 assignable CV/GATE I/O (5-in/4-out)
• USB drive support for system and preset backup
• LAN port for future expansion

Tech Specs

• Type:Keyboard Synthesizer with Sequencer
• Sound Engine:Tri-timbral Analog Synth ; FM, Hard Sync, Ring Modulation
• Analog/Digital:Analog with Digital Effects
• Number of Keys:61
• Type of Keys:Full Size, Fatar TP-8S
• Aftertouch:Yes
• Velocity Sensitive:Yes
• Other Controllers:Pitchbend, Mod wheel
• Pads:X/Y Pressure-sensitive Pad
• Polyphony:8 voice
• Presets:64 Presets, 128 Performance Sets
• Oscillators:3 x VCO per voice ; Sawtooth, Triangle, Pulse Width
• LFO:4 x LFO ; Dual-waveforms, Variable Shapes
• Filter:State-Variable -12dB/Octave (notch, BP, LP, HP), Ladder Filter (HP, LP) ; mixable, parallel, series
• Envelope Generator:3 x DAHDSR Envelopes ; Variable Curves per Stage, Multi-trigger, Loop, Sync, Latch
• Effects Types:Eventide Reverbs, Master Bus Effects, Bypassable Digital Effects per Synth 1/2/3, Moog Digital Effects
• Arpeggiator:Per Synth ; Octave Range, Pattern, Direction, Pendulum, Gate Time, Sync
• Sequencer:64-step, Step editing, Modulation
• Audio Inputs:1 x XLR-1/4" TRS combo (mic/line), 1 x 1/4" TRS (line), 4 x 1/4" TRS (audio inserts)
• Audio Outputs:2 x 1/4" TRS (main L/R), 2 x 1/4" (sub 1/2)
• Headphones:2 x 1/4" TRS
• USB:1 x Type B (system/data backup), 1 x Type A
• MIDI I/O:In/Out/Thru/USB
• Pedal Inputs:1 x 1/4" TRS (sustain), 2 x 1/4" TRS (Expression 1/2)

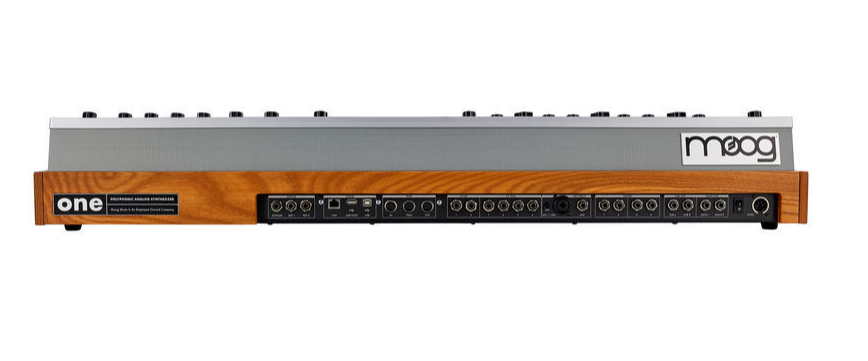

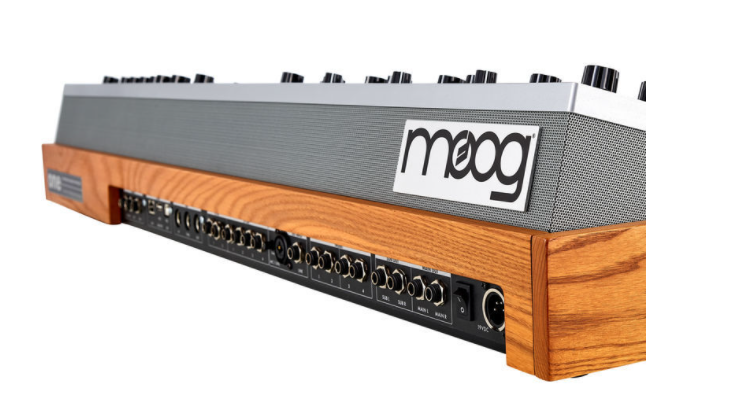

• Other I/O:4 x 1/4" TS (CV out), 2 x 1/4" TS (CV in), 1 x RJ45 LAN (future expansion)
• Power Source:4-pin 19V DC power supply (included)
• Height:7"
• Width:42"
• Depth:20"
• Weight:45 lbs.
• Manufacturer Part Number:MOG-ONE-001-01
