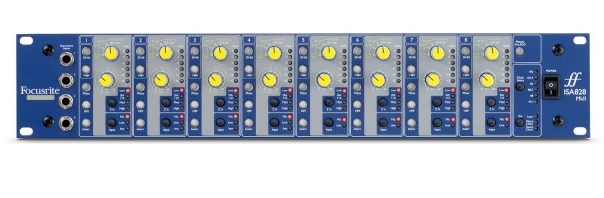

FOCUSRITE PRO ISA 828 MKII 8-CHANNEL MICROPHONE PREAMP

PRODUCT DESCRIPTION
Sharing the simple mic preamp design of the original Focusrite ISA 110 module from the Focusrite Studio Console, The Focusrite Pro ISA 828 MkII incorporates eight of Focusrite's classic mic preamps, with Lundahl LL1538 transformers on every input. Each channel has the option of mic or line inputs, while inputs 1-4 also feature instrument inputs on the front panel. Each mic pre has variable input impedance, to provide a range of subtly different sonic options when using microphones, including an ‘ISA 110’ setting, which replicates the impedance of the original Focusrite mic pre.
Up to 60 dB of gain is available, with a further +20 dB of continuously variable trim, providing a huge 80 dB gain range. The high-pass filter features variable cut-off frequency between 16 and 420 Hz. ISA 828 MkII features high-pass filters, calibratable per-channel, six-segment LED meters, and switchable rear-panel insert points, which allow the use of inline processors such as compressors or EQs.
Dedicated connectors for mic and line-level inputs allow all sources to be connected simultaneously, making ISA 828 MkII perfect for permanent installation in a rack. New to the ISA 828 MkII is an updated power supply that allows for more efficient power consumption, a reduction in heat generation, and extremely reliable operation. The optional ISA ADN8 analogue-to-digital expansion card provides eight Dante, ADAT and AES3 outputs at rates of up to 24-bit/192 kHz.
FEATURES:

Classic ISA mic preamp design featuring Lundahl LL1538 input transformer
Switching power supply design allows for efficient and cool operation
Front-panel instrument inputs to first four channels
Line inputs with dedicated input connectors and front-panel switch
Switchable input impedance including classic ISA 110 setting
High-pass filters
Switchable insert points when used with A-D card
Calibratable, per-channel six-segment LED peak-level meters

INCLUDED SOFTWARE:

Focusrite Plug-in Collective
Brainworx bx_console Focusrite plug-in






PRODUCT SPECIFICATIONS



CONDITION
New


PACKAGE CONTENTS
ISA 828 MkII, IEC mains cable, Important Information Guide, and registration code for online resources


UNIT WEIGHT
16.5 lb


CHANNELS
8-Channel


CHASSIS
19-inch Rack-mount


RACK SPACES
2u


INPUT CONNECTORS
1/4-inch TS, Analog DB25, Analog XLR


OUTPUT CONNECTORS
Analog DB25



www.music-blvd.com $2,700
