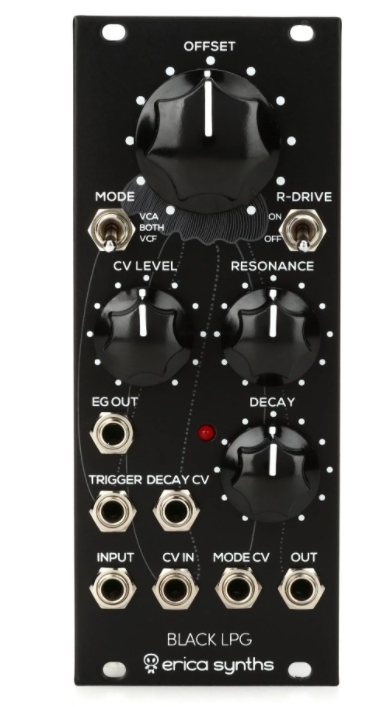

Erica Synths Black LPG Analog Eurorack Lowpass Gate Module

Erica Synths’s Twisted Take on a West Coast Synthesis Staple
Devised by synth pioneer Don Buchla, the lowpass gate was instrumental to the distinctive West Coast synthesis sound. Essentially, a voltage-controlled filter merged with a voltage-controlled amplifier, a lowpass gate provides synthesists with a unique means for shaping the harmonic content of a signal. Erica Synths puts their own twist on this classic formulation with the Erica Synths LPG lowpass gate for Eurorack. In contrast to the original Buchla design, which employed a 1st order (or single-pole) VCF, the Black LPG features a 2nd-order (2-pole) VCF, providing a tighter sound and the ability to dramatically exaggerate resonance at the cutoff point — just the thing for cooking up squelching acid bass lines. Sweep the offset manually using the satisfyingly chunky knob, or via an external modulation source or sequencer, and prepare yourself for some seriously animated aural emanations. Plus, flip on the Reso Drive to douse your patch in signature Erica Synths’s saturation. Another standout feature for synthesists at Sweetwater is the Black LPG’s mode selector, which allows you to decouple the VCF and VCA and use them independently — a super handy value-add. Toss in a built-in decay envelope, and you get one of the most flexible and fun lowpass gates available for Eurorack!




Fortify your sonic arsenal with Erica Synths
Prized for their weighty tones and hypnotic drones, Erica Synths's Eurorack modules fortify your sonic arsenal with unique sounds that work brilliantly cross-genre. The company was founded by Girts Ozolins, who started out designing DIY kits and components for sound designers and synthesists. Today, Sweetwater is delighted to offer you Erica Synths’s acclaimed line of Eurorack modules and systems that have captured the imaginations of synthesists worldwide with their distinctively punchy, aggressive sound and innovative features.





Erica Synths Black LPG Eurorack Module Features:

Don Buchla-inspired lowpass gate for Eurorack modular synthesizers
Combines a VCF and a VCA to shape a signal’s harmonic content
2nd-order (2 pole) design provides a steeper cutoff slope compared to traditional 1st-order designs
Manual and CV control for offset, mode, and decay parameters
Resonance control capable of self-oscillation in far clockwise positions
0 to +10V decay envelope output for modulation external devices
Reso Drive switches between standard sine-wave resonance and overdriven/waveshaped resonance
Size: 10HP wide, 35mm deep





Tech Specs

Type:Lowpass Gate Eurorack Module
HP Size:10HP
Power Supply:Requires Eurorack case and power supply
Manufacturer Part Number:Black LPG

www.music-blvd.com $206
(P)
