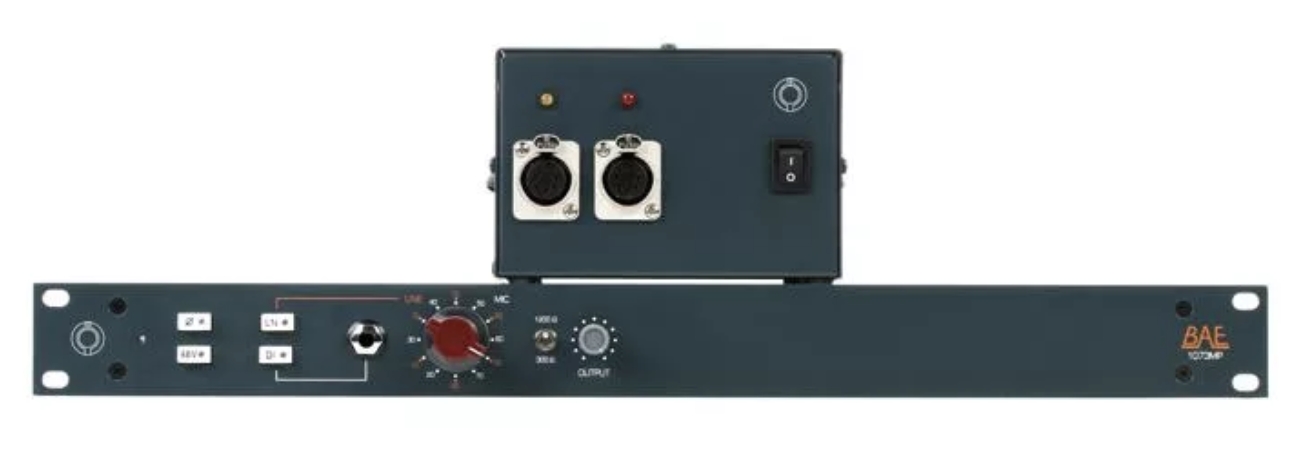

BAE 1073MP Microphone Preamp with Power Supply

Classic 1073-style Rackmount Pre
The classic Neve 1073 wrote the book on characterful mic preamplification, so in designing their 1073MP single-channel mic/line preamp, BAE aimed high. It's amazing how well they succeeded. Done up in classic RAF blue-gray livery, the hand-wired, transformer-coupled, pure Class A 1073MP is quite versatile, with 71dB of gain that lets you capture subdued sources with your favorite ribbon mic. Cranking the main gain stage enhances your tracks with tasty vintage-style coloration. Under the bonnet reside the finest components, such as Carnhill transformers — like those found in vintage 1073s. Also onboard: a DI jack, polarity reverse, 48V phantom power, and selectable impedance to optimally match a variety of microphones. The 1073MP delivers distinctive Class A sound with a harmonically rich bottom end, focused midrange, and slightly resonant highs. If you want a pre with personality and punch, Sweetwater recommends the BAE 1073MP. It's the sound of rock 'n' roll.







BAE 1073MP Single Channel Features:

All Class A, hand-wired transformer-coupled design
71dB of gain on tap handles low-output ribbon mics
Input impedance selector switches between 1200 and 300 ohms
Handles line-level inputs for added versatility
High-impedance DI for guitar, bass, synth, and other sources
Polarity reverse switch
Same Carnhill St Ives transformers as the 1073 and 1084
Frequency response: 10Hz-55kHz (-3dB)
Line input impedance: 10k ohms
Output impedance: 65 ohms
Common mode rejection ratio: 100dB min at 60Hz
Maximum output level: +27.4 dBu at 600ohms
Regulated linear power supply will run up to four channels




Tech Specs

Preamp Type: Solid State
Number of Channels: Single channel
Phantom Power: Yes
Analog Inputs: 1 x XLR (mic), 1 x 1/4" (Hi-Z)
Analog Outputs: 1 x XLR
Frequency Response: 10Hz-55kHz (-3dB)
Rack Spaces: 1U
Power Source: External remote power supply
Height: 1.75"
Depth: 9"
Width: 19"
Weight: 8 lbs.
Manufacturer Part Number: SIN73MPWPS
