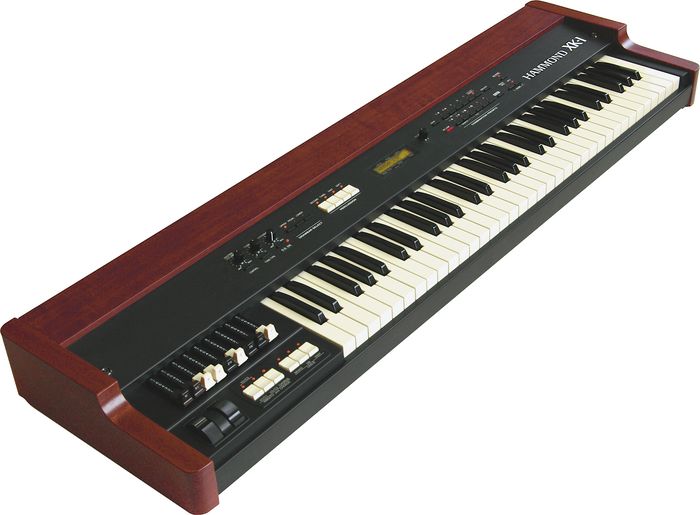

Hammond XK-1 Drawbar Organ

Real Hammond sound in a lightweight organ ideal for touring.
The Hammond XK-1 Drawbar Organ is powered by the critically acclaimed VASE III digital tone wheel generator. It uses many of the features of the XK-3 but in a premium package. You still get the sound, you get real drawbars, you get waterfall keys, and you can plug in a Leslie 21 system—all in a traditional Hammond cabinet. Only 33 lbs (15kg).
Hammond XK-1 Drawbar Organ Features:

Sound Generator: 2 x Vase III as Digital Tone-wheel
Keyboard: 61-note Water-fall Keys with Velocity
Harmonic drawbars: 1-set: 9 Adjustable Pitches
Drawbar Select: Tabs Upper, Lower, Pedal
Waveform: B-type/Mellow/Brite(Upper and Lower)/Muted/Normal/Synth(Pedal)
Percussion: Tabs: Second On, Third On, Fast Decay, Soft
Adjustable: Touch, Velocity, Decay (Fast, Slow), Level (Soft, Normal)
Extra Voice: 8 Instruments
Tuning: Master: 430 ~450 (Hz Steps)
Transpose: -6 ~ 0 ~ +6
Effects: Internal Leslie: On, Fast, Brake, Digital 2 Rotors
Vibrato and Chorus: V1, V2, V3, C1, C2, C3, Upper&Lower, On/off, Speed:5(6,10Hz~7,25Hz)
Overdrive: Digital Overdrive
Equalizer: 3 Bands
Reverb: 10 Programs
Sustain: 5 Lengths (Pedal)
Internal Zone: Tabs: Split, Manual Bass
Adjustable: Map Low, High, Split Point, Lower Octave, Pedal Top Key
Combination Presets: 12 Banks x 11 Numbers + Adjust
Switchable:Link/Independant
Controllers: Switches: Power On/Off
Rotary Controllers: Master Volume, Overdrive, Tone
Wheels: Pitch Bend, Modulation
Display: 20 characters, 2 lines with 9 control switches and rotary encoder
MIDI: Templates: 3 modes zoned 9 parts and keyboard ch.
Connections: AC-Inlet, MIDI In, In2, Out
Expression Pedal (Phone jack)
Foot switch, Line out L/R
Headphones, 8-pin Leslie
Dimensions: 116cm(W) x 11cm(H) x 33cm(D)
Weight: 33 lbs (15kg)
This is the one for heavy B3 tone without the weight.
