Genelec 8030 LSE Power Pak Five 8030As and one 7060B sub

A compact, rull-range 6.1 surround monitoring system for critical recording environments.

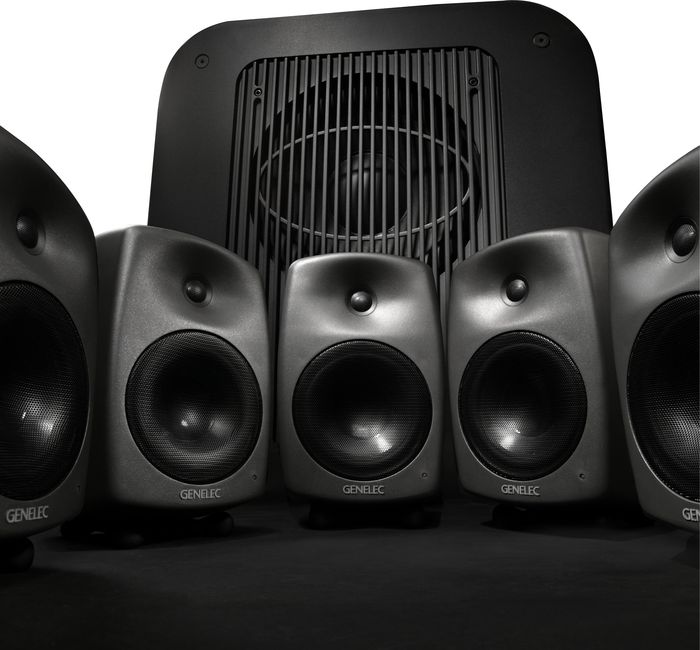

The Genelec 8030 LSE Power Pak includes Five Genelec 8030A Active Near-Field monitors and one Genelec 7060B Active subwoofer.

Genelec Active 8030A Monitor
The very compact 8030A is a powerful bi-amplified nearfield monitor system ideal for project and home studios, workstations, installations, and surround sound monitoring. The MDE (Minimum Diffraction Enclosure) enclosure has rounded edges and a gently curved front and sides to achieve a very smooth frequency response and superb imaging qualities with minimized cabinet edge diffraction.

Like all Genelec 8000 Series monitors, the 8030A also features the advanced Genelec Directivity Control Waveguide (DCW), a revolutionary flow-optimized reflex port design, optimized die-cast aluminium structure with extremely durable semi-matt finish and acoustically optimized metal grilles. Low distortion drivers are driven by dedicated amplifiers after sophisticated filtering. Magnetic shielding, overload protection circuitry and versatile room response controls are standard. The versatile mounting features include integrated rear support points for wall and floor stands plus a further 3/8" thread for mounting on the cabinet base.

Every Genelec 8030A monitor comes with an Iso-Pod (Isolation Positioner/Decoupler) as standard. The Iso-Pod is a clever mounting stand, which allows the system to perform in either the vertical or horizontal position. It also enables the acoustic axis of the monitor to be aimed at the listener, while acoustically and mechanically decoupling the monitor from the surface it is resting on.

Genelec 7060B Active Subwoofer
Genelec 7060B Active Subwoofer is a powerful and precise bass monitoring tool for modern 6.1 or 5.1 channel Surround Sound or traditional stereo systems. With its 19 Hz lower cut-off frequency, high sound pressure output capability and versatile bass management systems, it can be adapted to all low frequency monitoring situations.

The amplifier unit integrated into the cabinet contains active crossover filters, driver overload protection circuits and power amplifiers. The in-built bass management unit has six signal input and output channels, summed signal output connectors and LFE input equipped with a selectable 85/120 Hz lowpass filter and a 0 / +10dB LFE sensitivity switch.

The Genelec Laminar Spiral Enclosure (LSE) bass reflex cabinet is made of a sheet metal rolled into a spiral shape and clamped between thick MDF side panels. This new construction technique provides excellent laminar flow characteristics with minimal turbulence noise and enables an optimal packing of a very long reflex tube into a small space.


Genelec 8030 LSE Power Pak Five 8030As and one 7060B sub Features:


Genelec Active 8030A Monitor
Compact Bi-Amplified Active Monitor
Directivity Control Waveguide (DCW) flow-optimized reflex port design
MDE (Minimum Diffraction Enclosure) Loudspeaker Design
Advanced Directivity Control Waveguide (DCW) Technology
3/4" (19 mm) Metal Dome Tweeter
5" (105 mm) Bass Cone Driver
Bass Response Reaches Down To 58 Hz
Separate Bass And Treble Amplifiers Produce 40 Watts Of Output Power Each
Includes Iso-Pod (Isolation Positioner/Decoupler)

Applications;
Near Field Monitoring
Audio Video Post Production
Mobile Vans
Home Theaters
Project / Home Studios
Digital Workstations
Multimedia Production and Playback

Genelec 7060B Active Subwoofer
LSE Power efficient port/enclosure design
Highly configurable 6.1 channel
Bass Management System
Unparalleled low frequency performance
Phase calibration test tone
RJ11 remote control connection
SUM out and in for "daisy chaining" units




Genelec 8030 LSE Power Pak Five 8030As and one 7060B sub Includes:


Iso-pod stands


Get a studio quality 6.1 surround monitoring today!



Genelec 8030 LSE Power Pak Five 8030As and one 7060B sub Specifications:



Genelec 8030A Active Monitor
Input format: Analog
SPL: Maximum short time sine wave acoustic output at 1 m on axis in half space, averaged from 100 Hz to 3 kHz: ≥100 dB SPL
Maximum peak acoustic output per pair with music material: ≥108 dB SPL @ 1m
Drivers:
Bass: 5"
Treble: 3/4" metal dome
Crossover frequencies: 3 kHz
Free field frequency response: 58 Hz - 20 kHz (± 2 dB)
Amplifier power /ch:
Bass: 40 W
Treble: 40 W
Speaker dimensions (H x W x D): 11 1/4" x 7 7/16" x 7 1/16", (285 x 189 x 178 mm)
Speaker weight: 5.6 kg (12.3 lb)

Genelec 7060B Active Subwoofer
Maximum short term sine wave SPL output averaged from 30 to 85 Hz, measured in half space at 1 meter: ≥108 dB SPL
Input: 6 main + LFE analog channels
Sum out outputs: 1
Driver: 10"
Free field frequency response: 19 - 85 (120) Hz +/- 3 dB
Manual acoustic controls:
Subwoofer level control: +12 to -6 dBu (variable)
Bass roll-off: 0 to -6 dB (2 dB/step)
Phase adjustment: 0 to 270° (90 °/step) @85 Hz
Amplifier power: 120 W
Dimensions (H x W x D): 20¾" x 18 3/16" x 14 5/16", 527 x 462 x 363 mm
Weight: 26 kg (57 lb)




*Estimate shipping within 1-2 months, or please call (083) 497-2227 for a faster shipping service option.
