Shure PGXD14 Digital Wireless System for Guitar/Bass

Gives you quality audio and freedom to take play your guitar and bass all over the stage.

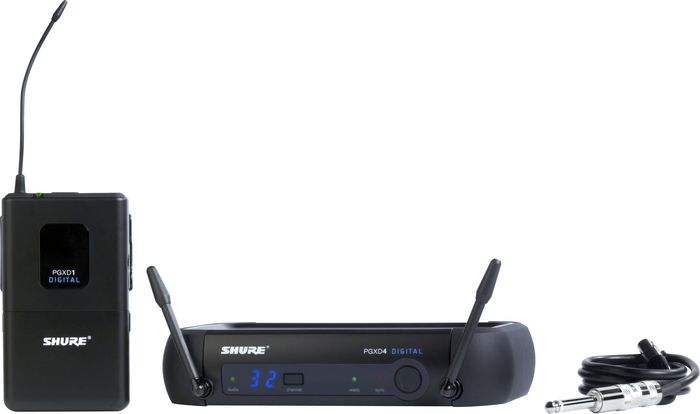

The PGXD14 Wireless Guitar System for guitar or bass features a PGXD4 wireless receiver, PGXD1 bodypack transmitter, and a WA302 instrument cable. Combined, they add the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performances.

The rugged PGXD1 bodypack transmitter easily clips onto a belt or guitar strap, and provides you with a 20Hz - 20kHz frequency range, up to 10 hours of continuous use on 2 standard AA batteries (not included), and 200' of wireless freedom.

The PCDX4 receiver offers 24-bit/48kHz accurate sound, auto frequency selection, and greater reliability thanks to its true digital diversity.

The WA302 instrument cable plugs into guitar, bass, or any other 1/4" line-level instrument output.


Shure PGXD14 Digital Wireless System for Guitar/Bass Features:


PGXD1 transmitter with WA302 Instrument Cable
Rugged, compact bodypack with belt clip and instrument cable
20Hz – 20kHz frequency range captures every nuance of your tone
Power, mute, and battery status LED
Up to 10 hours of continuous use from 2 AA batteries
200' (60m) operating range
26dB of continuously adjustable gain to match variable input levels

PGXD4 Wireless Receiver
24-bit / 48kHz digital technology for incredibly accurate sound
Automatic frequency selection locates a clear channel instantly
One-touch sync automatically syncs the transmitter and receiver
True digital diversity delivers rock-solid wireless signal reliability
Up to 5 systems can be used at once
1⁄4" and XLR audio outputs
Included padded carrying case for portability and protection


Give yourself more room to roam for less. Order today!



Shure PGXD14 Digital Wireless System for Guitar/Bass Specifications:



PGXD1 transmitter with WA302 Instrument Cable
Audio input level: +10 dBV maximum, at minimum gain setting -16 dBV maximum, at maximum gain
Gain adjustment range: 26dB
Input impedance: 1MΩ
RF Output Level: 10 mW maximum (dependent on applicable country regulations)
Dimensions (HxWxD): 108mm x 64mm x 19mm (4.25" x 2.50" x 0.75")
Weight: 128g (4.5oz.) without batteries
Housing: Molded polycarbonate case
Power requirements:
Battery Life: Up to 10 hours

PGXD4 receiver
Dimensions (HxWxD): 40mm x 181mm x 104mm (1.6" x 7.125" x 4.1")
Weight: 289g (10.2oz.)
Housing: ABS
Audio Output Level (ref. ±38kHz deviation, 1kHz tone): XLR connector (into 3000Ω load): -2.5dBV 1/4" connector (into 10000Ω load): +10 dBV
Impedance:
XLR: 50Ω
1/4": 50Ω
Sensitivity: -102 dBm @ 10-5 BER
Image rejection: > 70dB, typical
XLR output:
Impedance balanced Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Audio LED:
Red: 2dB below clip
Amber: 12dB below clip
Green: 50dB below clip
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments: XLR: 1 = ground, 2 = hot, 3 = cold 6.35mm (1/4") TRS: Tip = audio, Ring = no audio, Sleeve = ground
