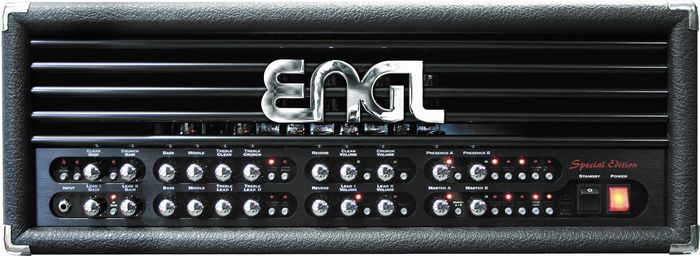

Engl Special Edition E 670 EL34 100W Guitar Amp Head

Plentiful power, near endless sound shaping options, and cool stage looks.






The Engl Special Edition amp head has the same features as the 6L6 power amp version, but produces 100W with EL34 power amp tubes cutting through any music style. More punch and dynamics in the upper midrange. Shimmering blue lights inside give it a great look on darkened stages. This amp head is the perfect choice for the demanding guitarist.


Engl Special Edition E 670 EL34 100W Guitar Amp Head Features:


Tube Driver circuit for effect devices, also serves as a separate fifth channel that can be selected directly (with or without EQ) in reciprocation with the four channels
Modern and Classic sound-shaping buttons determine the basic voicing of all four channels, giving you a broader, deeper tonal spectrum to work with
Two Gain variants for each of the basic channels: Gain Boost and Hi Gain let you have two different gain settings for every channel
Three voicing sections: one EQ for Clean and Crunch (Main Channel 1), one for Lead I and Lead II (Main Channel 2) and another for the Tube Driver. Every channel sports a dedicated Treble knob
Various sound-shaping buttons tuned to match the tonal requirements of the given channels: Bright and Ultra Bright for Clean and Crunch, Contour and Mid Edge for the two Lead channels
Large spring reverb for very natural-sounding reverb, with separate knobs for the two Main Channels
Three effect loops: FX Loop I and FX Loop II are variable, switchable effect loops, while Serial FX Loop is a separate circuit that can be used in series with two main effect loops. Each effect loop may be activated for each channel as well as for the Tube Driver circuit
Two each power amp Master and Presence knobs, accessible via MIDI. The amp can also be muted via MIDI controller 7
Variable, MIDI-switchable power amp output (50W or 100W) with hot impedance adjustment (that is, on the fly)
A/B speaker switching with separate impedance selector for connected speaker systems
Balanced, frequency-compensated XLR line output for routing preamp or power amp signals to mixers or recording gear
MIDI In and Thru ports serve to integrate the amp into a MIDI system
128 MIDI presents, accessible via 16 MIDI channels
Offers three different remote interface ports: Serial Amp Control Port accepts the Custom Z-9 Footswitch (sold separately); MIDI In accepts the Z-9 for use as a simple MIDI footcontroller or any other MIDI footcontroller; amp is equipped with a stereo jack that takes a dual footswitch, allowing you to switch the four channels remotely
Programmable Noise Gate for suppressing noise in the Crunch, Lead I and Lead II channels


Order today with the protection of our 45-day lowest price and total satisfaction guarantees.



Engl Special Edition E 670 EL34 100W Guitar Amp Head Specifications:


Output power: approx. 100W in Hi Power mode, approx. 50W in Lo Power mode adjusted accordingly to 4, 8 and 16 ohms, adjusted accordingly to 4, 8 and 16 ohms

Input sensitivity
Input: from -20 dB, nominal, max. 0 dB
Effect Return: from -20 dB nominal, max. 0 dB

Output level
SEND, level range: from -20 dB to approx. 0 dB max.
Frequ.Comp. Line Out: +6 dB max.

Power consumption: approx. 390W max., equipped with 6L6GC power tubes

Fuses
external at 230/240 mains voltage: 2 ATL (2 amps slo-blo)
External at 100/115/120 mains voltage: 4 ATL (4 amps slo-blo)
Internal: 2 x 2.5 ATL (2 amps slo-blo)

Tubes
V1, V2, V3, V4: 6L6GC (factory loaded) or EL34, matched sets
V5: ECC83 FQ, input tube
V6, V7: ECC83 selected
V8, V9: ECC83 standard

Logic control system: AT89C52 microcontroller with internal 8K Flash Memory for Processor
Software: software source code; Upgradeable with external Programmer
Memory: EEPROM 93C66 for data retention

System interfaces
MIDI: Asynchronous data protocol according to the MIDI standard, MIDI program changes 0 — 127, MIDI channels 1 — 16, MIDI controller 7 (main volume), value 0-5 = Master Volume Mute, Mute, value > 5 = default, Master Volume level

Serial Amp Control: Proprietary ENGL asynchronous data protocol
Dimensions: 71 x 28 x 29 cm
Weight: 26 kg; 57.3 lb.



*Estimate shipping within 1-2 months, or please call (083) 497-2227 for a faster shipping service option.
