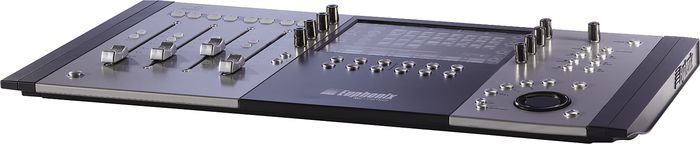

Euphonix MC Control

Puts the "pro" in your project studio.




The Euphonix MC Control brings unparalleled speed, resolution, and DAW integration to your studio in a revolutionary ergonomic, slim-line design. The MC Control easily fits into any studio, sitting perfectly between a computer keyboard and screen. Multiple units can be connected to create a larger, integrated control surface. The Euphonix MC Control is the perfect mix of form and function, and works with Mac only.

The MC Control lets you effortlessly switch between multiple applications and even workstations at the touch of a button. The touch-sensitive knobs, motorized faders, and high-resolution touch-screen display automatically set themselves to whatever application is in the foreground to provide immediate access to multiformat metering, plug-in parameters, EQ curves and much more.

Most importantly, Euphonix has worked closely with the world's leading software developers like Apple, Steinberg, MOTU, Apogee, and others to deeply integrate native support for Euphonix' EuCon control protocol into their DAWs to deliver an unmatched editing and mixing experience.

Significant Control Features:
•Controls multiple audio/video applications via Ethernet

•250X faster and 8X the resolution of MIDI

•Supports HUI and Mackie Control protocol

•Slim-line design for easy studio integration and portability

•Studio Monitor Express software

•Add up to four MC Mix controllers for up to 36 faders total

The MC Control is designed to work with up to four additional MC Mix units to create a larger, integrated system with up to 36 faders. MC Control and MC Mix units can be elegantly clipped together or be situated anywhere on the network.

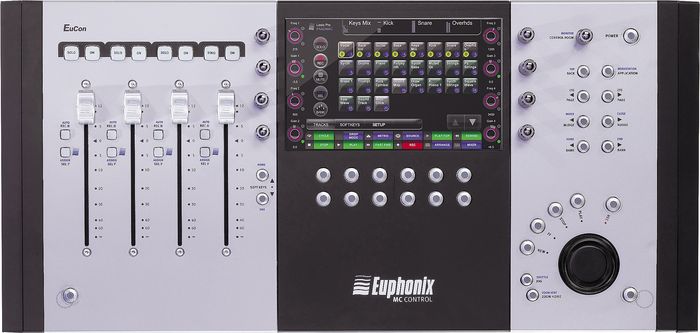

Customizable touch-screen interface
The high-resolution 800 x 480 pixel touch-screen interface not only displays all of your project's top-level information like track names/numbers, metering (from mono to 5.1 surround data), fader/pan values, automation mode, etc., but also lets you quickly access all plug-in and EQ parameters, effortlessly setup macro commands for any function (or sequence of functions), and much more.

Record/Automation Keys
Enable direct arming of tracks for recording and/or selection of each track's automation mode.

Select/Assign Keys
Lock the selected track to a dedicated fader while allowing you to bank through tracks with the remaining faders—perfect for master fader and submix applications.

Function Keys (Shift Keys)
Used in conjunction with other keys on the MC Control to provide alternate functions.

Footswitch Jack
Punch in and out of recording when footswitch is connected.

Ethernet Port
Connects the MC Control to your Mac. Ethernet hub or switch required to connect additional MC Mix unit(s) or connect to a network.

Transport Controls: Jog/Shuttle/Zoom Wheel
Ergonomic layout puts transport controls and data entry wheel at your fingertips, as well as keys to quickly select what parameter the wheel will modify (zoom horizontally/vertically, jog/shuttle, trimming clip head and tail, setting clip gain, cross fading, etc.).

Assignable Soft Keys
Use these Soft Keys to trigger everything from simple keystroke commands to complex custom macros displayed on the touch-screen interface above. Use the up/down arrows to scroll through an unlimited number of commands.

Monitor/Control Room Level
Controls the included Studio Monitor Express software to provide professional monitoring (from stereo up to 5.1 surround) as well as complete talkback controls via any CoreAudio compliant interface.

Application/Workstation Change
Application Change lets you cycle through your applications, while the Workstation Change allows you to switch between multiple workstations.

Track Navigation
Scroll through tracks using the Bank buttons (in groups of four tracks at a time) and Nudge buttons (one track at a time).

Touch-sensitive Rotary Encoders (8)
Offer direct control over everything from panning and gain to editing your most powerful plug-ins and EQ. These knobs can also be pressed to select/deselect and navigate through parameters.

Touch-sensitive Motorized Faders (4)
High-quality ALPS 100mm long throw faders offer accurate and smooth mixing. Touching a fader will automatically select the corresponding track.

Riser Brackets
Riser Brackets included to increase height and viewing angle.

EuCon
EuCon is a high-speed Ethernet control protocol developed by Euphonix that allows the MC Control to connect to any Mac OS X application. EuCon carries control information for faders, knobs, displays and more between the MC Control and whatever application is in focus on your computer.

EuCon features
•Simultaneous control over multiple
applications and workstations via Ethernet
•High-resolution, high-speed control over almost all DAW functions
•250X the speed and 8X the resolution of MIDI
•Support for HUI and Mackie Control protocols
•Universal control of any software application

EuCon works with:
•Apple LOGIC PRO
•Apple SOUNDTRACK PRO
•Steinberg NUENDO
•Steinberg CUBASE
•MOTU DIGITAL PERFORMER
•Apple FINAL CUT PRO
•Propellerheads REASON
•Ableton LIVE
•Digidesign PRO TOOLS (HD/LE/M-Powered)



Features

Customizable touchscreen interface (800 x 480 pixels)
8 touch-sensitive rotary encoders
4 touch-sensitive motorized faders
12 assignable soft keys
Jog/shuttle/zoom wheel and transport controls
Studio Monitor Express software
High-speed EuCon, HUI, and Mackie protocols
Control multiple applications & workstations via Ethernet
250X faster and 8X the resolution of MIDI
Slim-line design for easy studio integration and portability
Included riser brackets let you increase profile and angle of console
Works on Mac only




Order today to connect and control your favorite software for music, post audio, video, and film.

MC Control Specifications:


Dimensions: 20" (500mm) x 9.5" (238mm) x 1.2" (30mm)
Weight: 5.5 lbs. (2.5kg)
TFT screen size: 6.02" x 3.62" (153mm x 92mm)
Line voltage: 100—240V AC
Frequency: 50Hz to 60Hz
