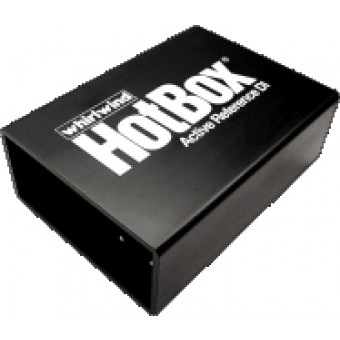

Whirlwind HOTBOX Active Direct Box

DescriptionOur top-of-the-line DI is an active direct box that operates with batteries or phantom power.

Its super-clean front-end circuitry delivers extremely wide and flat frequency response and will reveal hidden harmonics from guitars and basses with high-output passive pickups.


Features include:

1/4" parallel wired in/out jacks
Ground Lift switch to help eliminate hum and buzz
Input switch selects between OFF, ON or ON with 20 dB PAD engaged for connecting to strong line or speaker level signals.
LED indicates "ON" status
Model # - HOTBOX
Input Impedance: 1 Meg Ohms
Frequency Response: 20Hz-150kHz ±3dB
Residual Output Noise: -115dB
Maximum Input Level: +15dBm - battery, +20dBm - 48V phantom. Add 20dBm with pad engaged
Power Requirements: (2) 9V batteries or 48V phantom
Battery Life: approximately 300 hours
Current Draw: approximately 4.0mA DC
