Zoom H2 Handy Portable Digital Recorder

Zoom H2 Handy Portable Digital Recorder

The Zoom H2 is a must-have for anybody doing podcasting to almost any type of mobile recording situation.
An affordable 2-track recorder using a 4-mic capsule configuration and digital signal processing, the H2 allows a variety of polar patterns and even supports 5.1 surround sound. Record at 96kHz, 48kHz, 44.1kHz or MP3. Archive files to your computer using the USB port. Use as a USB mic to record your guitar or vocals directly to computer. A Time stamp feature facilitates production. The H2 has an approximate 4-hour running time on 2 AA alkaline batteries. It includes earbuds, stereo adapter cable, mic clip adapter, tripod stand, USB cable, AC adapter and a 512MB SD card. Now the Zoom H2 can accept up to a 16 GB SD cards with the latest firmware installed. Have an older version? Update easily and for free at Zoom's website, www.zoom.co.jp. Click here for listing of compatible SD cards!


Zoom H2 Demo Videos
Click any of the video links on the left, then click Play to access the H2 demos









Who Needs the H2 Handy Recorder from Zoom? Everyone who craves brilliant stereo recordings.
It's a simple idea: provide brilliant stereo recording in an easy-to-use, ultra-portable device. Now everyone can record pristine audio in an infinite variety of applications. From seminars and conferences, to electronic news gathering (ENG) and podcasting, to musical performances, songwriting sessions and rehearsals, the H2 provides amazing recording quality. And no matter what kind of music you perform or the instrument you play, the H2 can effortlessly record it in high-quality stereo.





Zoom H2 Features

W-XY mic patterns with 4 mic capsules and signal processing allows Front 90° cardioid, Rear 120° cardioid and 360° polar patterns
Finally record 360° sound as 2ch data or 4ch data simultaneously
Built-in USB 2.0 port for data storage
Records in WAV 96kHz/48kHz/44.1kHz at 16-bit or 24-bit, MP3 to 320kbps and Variable Bit Rate (VBR) data formats
Time Stamp and Track Marker functions in Broadcast WAV Format (BWF)
512MB SD memory card included
Accomodates up to 4GB SD memory cards
Auto Gain control (AGC) for pristine recordings
Auto Start function means you're always ready to record
Low-cut filter eliminates wind noise
On-board chromatic Guitar/Bass tuner





Why four mics are better than two.
The H2 is the only portable recorder with 4 mic capsules onboard for 360° recording. With 4 mic capsules in a W-X/Y configuration, the audio is decoded instantly, bringing these four signals together for unparalleled stereo imaging.

But the H2 doesn't stop there. For maximum flexibility, you can record from the front of the H2 and at 90° or the rear of H2 at 120° in up to 96 kHz/24-bit WAV format, as MP3 up to 320 kbps. Additionally, you can record 360° in 48kHz/24-bit format which will allow you to convert your recordings to 5.1 Surround.

Push a Button…
That's all it takes to start recording! The H2 is a remarkably robust device that is incredibly easy to use. One button recording, gain controls on the side and an intuitive user interface mean you can always capture the moment. Set your levels, push record and go. It's that simple. Or use the Auto Start and Auto Gain Control functions to ensure complete capture at the right level. And if you need to fine-tune your levels on the fly, we made it easy with gain control buttons on the front panel.

Play it Back!
Play your recordings on your home audio system with its 1/8" stereo output or listen to your masterpiece with headphones. Or, use the H2's USB port to move your recordings to your Mac or PC to listen, edit and share.

Secure Your Digital Memories
The H2 records on Secure Digital (SD) media and a 512MB SD card is included. With a 4GB SD memory card, the H2 provides up to 2 hours recording at 96kHz, 6 hours at 44.1kHz, or up to a staggering 138 hours in MP3. Store your recordings on a PC or Mac with its USB 2.0 port. And you can use its time stamping function for reference during production. Or use the H2 as a USB Microphone for recording directly to a computer. Click here for listing of compatible SD cards!

What's Life Without Accessories?

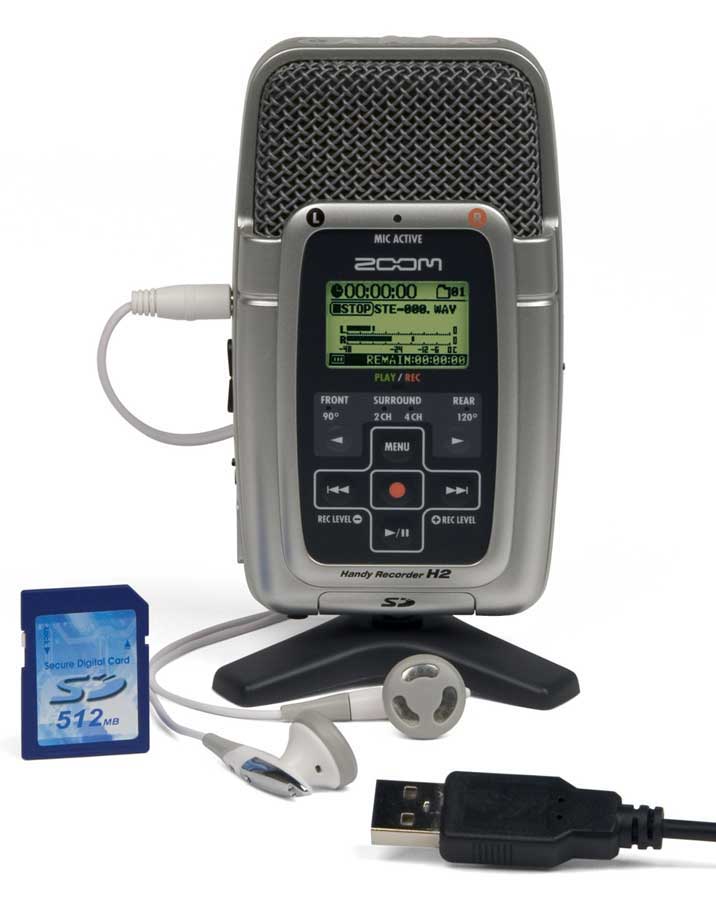

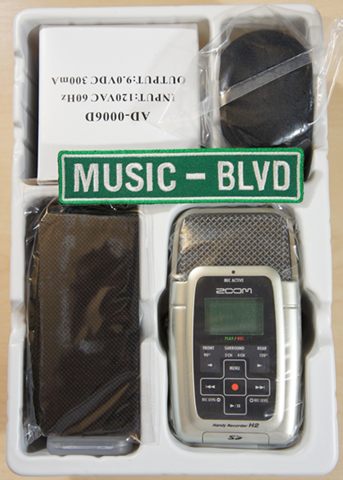

The H2 comes with earbuds, stereo adapter cable, mic clip adapter, tripod stand, USB cable, AC adapter and a 512MB SD card.

Ultimate Convenience
The H2 weighs 4 ounces and fits in your pocket for the ultimate in portability and convenience. Two standard alkaline AA batteries will give you 4 hours of continuous operation and a backlit display means it's always easy to use in any situation.

Enjoy Your Brilliance
Brilliant stereo recording in a convenient, user-friendly package means there's never been an easier way to record high quality audio. The H2 gives everyone the power to record anything and share it with anyone, anywhere. You'll be amazed by your sound.




H2 Handy Recorder Features at a Glance

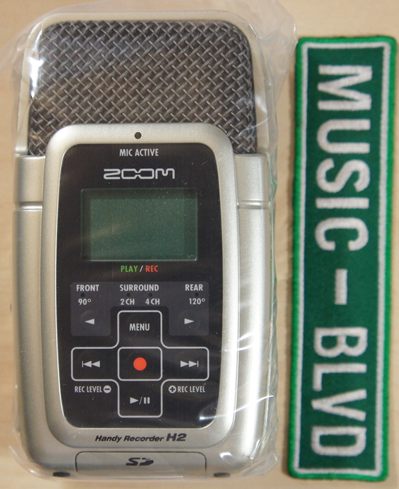

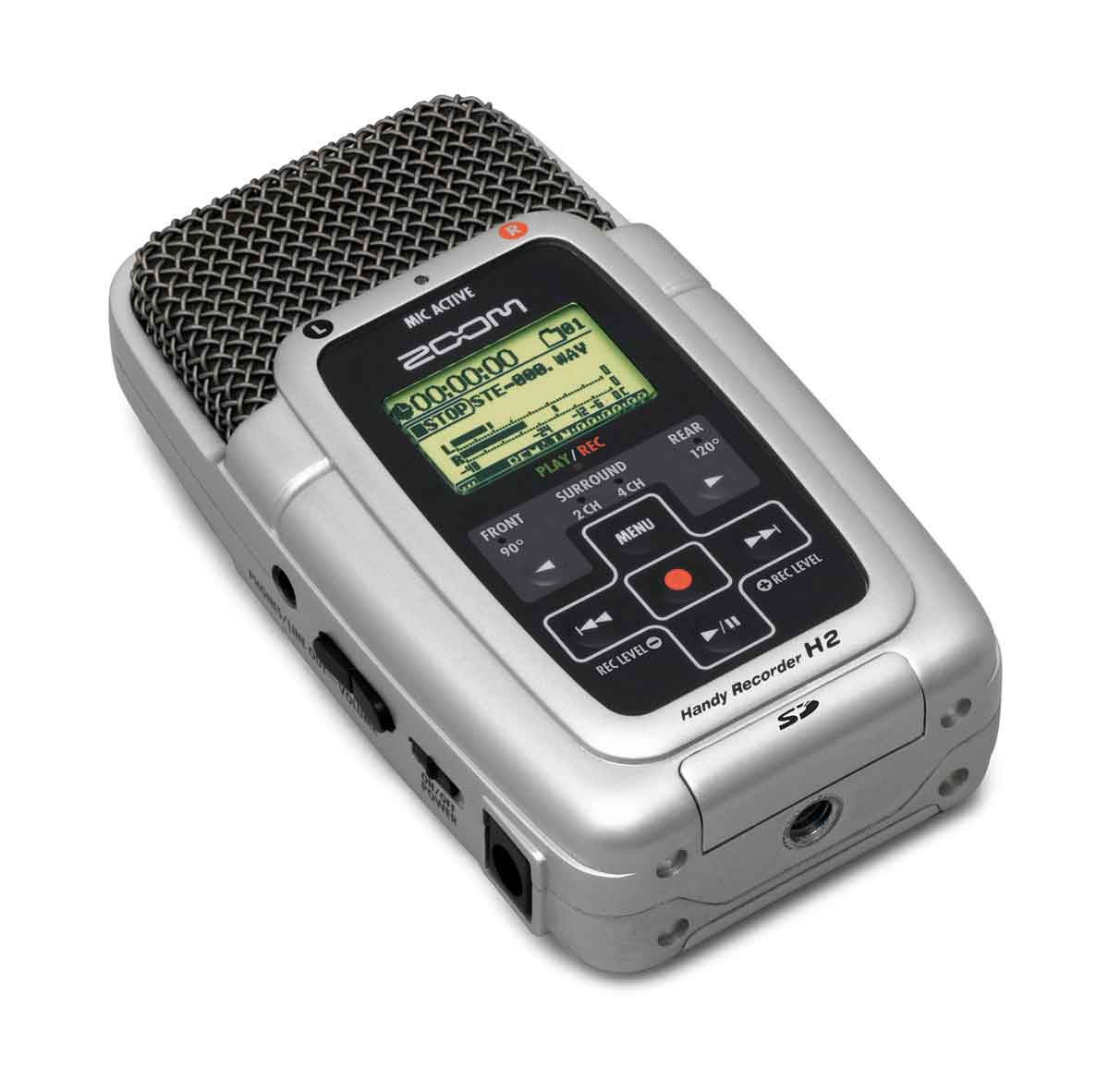

The H2 Handy Recorder brings the ultimate in functionality and versatility to portable digital recording. A clear, backlit display features recording levels, time code, file name and remaining battery life. LEDs indicate Front, Rear, 2 Channel or 4 Channel modes and the recording angle: 90°, 120° or 360°. An Active Mic LED is on the front and back of the H2. Transport controls include one button recording, playback and pause, fast forward and rewind. Use the Menu key to enter the control menu and the cursor keys to navigate through the feature sets.

Within the menu, set recording parameters such as direction and polar pattern, activate the Auto Start function and set file format. And you'll find additional settings like Auto Gain Control to make sure your recordings are always pristine. And you can fine-tune your levels on the fly with the Record Level buttons on the front.

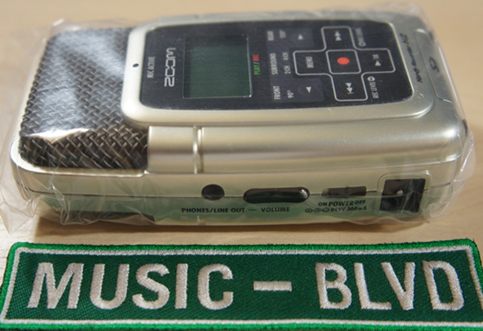

On the left side of the H2 is a 1/8 inch Phone/Line Output for monitoring and playback, Playback Volume and Power On and the AC power are located here as well.

On the right side of the H2, you can plug in a powered 1/8 inch external stereo mic. Setting levels is easy with a Mic Gain slider for Low/Medium/High gain. You can also plug instruments into the 1/8 inch Line In or use the input to digitize analog recordings.

Use the USB 2.0 port to move your files to a PC or Mac for storage, editing and playback. The time stamp function is great for reference during production. And you can even use the H2 as a USB mic and record directly to your favorite digital audio software. The Zoom H2 is now compatible with Mac OS X Leopard.

For brilliant stereo recording, and plenty of extras, there's never been a simpler or more functional solution than the H2 Handy Recorder from Zoom.






Choose the right polar pattern for the best recording in any situation.
<>




90° Pattern
Record from the front or rear at 90°



120° Pattern
Record from the front or rear at 120°




Record your band rehearsals in
360° brilliant stereo.





AmericanMusical.com is an authorized dealer of Zoom products.



Specifications and additional product information for:



As of September 2007, the operation confirmed SD Memory Cards are as follows for the H2.





8GB
Transcend:
TS8GSDHC
TS8GSDHC6






4GB
Panasonic:
RP-SDR04G
RP-SDM04G



Transcend:
TS4GSDHC6
TS4GSDHC150



SanDisk:
SDSDBR-4096-A10/E10/P35)



Toshiba:
SD-HC004GT4



IO DATA:
SDHC-4G



Hagiwara Sys-Com:
HPC-SDH4GT4C



PQI:
QSDH6-4G






2GB
Panasonic:
RP-SDV02G (U1A/E1A/G1A)
RP-SDM02G (U1A/E1A/G1A)
RP-SDQ02G (U1A/E1A/G1A)
RP-SDR02G (U1A/E1A/G1A)
RP-SDK02G (U1A/E1A/G1A)



SanDisk:
SDSDB-2048-(A10/E10/P60)
SDSDH-2048-(901/902/903)



HAGIWARA SYS-COM:
HPC-SD2GT4C
HPC-SD2GT



Toshiba:
SD-M02GR4W
SD-F02GR4W



PQI:
QSD15-2G



IO DATA:
SD-2G



GREEN HOUSE:
GH-SDC2GG



Transcend:
TS2GSDC
TS2GSD150






1GB
Panasonic:
RP-SDM01G (U1A/E1A/G1A)
RP-SDQ01G (U1A/E1A/G1A)
RP-SDR01G (U1A/E1A/G1A)
RP-SDK01G (U1A/E1A/G1A)



SanDisk:
SDSDB-1024-(A10/E10/P60)
SDSDH-1024-(901/902/903)



HAGIWARA SYS-COM:
HPC-SD1GT



PQI:
QSD15-1G
QSDS-1G



Transcend:
TS1GSD80



Delkin Devices:
DDSDFLS1-1G






512MB
Panasonic:
RP-SDR512 (U1A/E1A/G1A)
RP-SDK512 (U1A/E1A/G1A)
RP-SD512B (U1A/E1A/G1A)



SanDisk:
SDSDB-512-(A10/E10/P60)
SDSDH-512-(901/902/903)



HAGIWARA SYS-COM:
HPC-SD512T



PQI:
QSD15-512
QSDS-512




* When you use a SD Memory Card less than 512 MB, please use same brand and same series as shown above. It may work theoretically. However please note that Zoom did not confirm actual performance on the H2.
