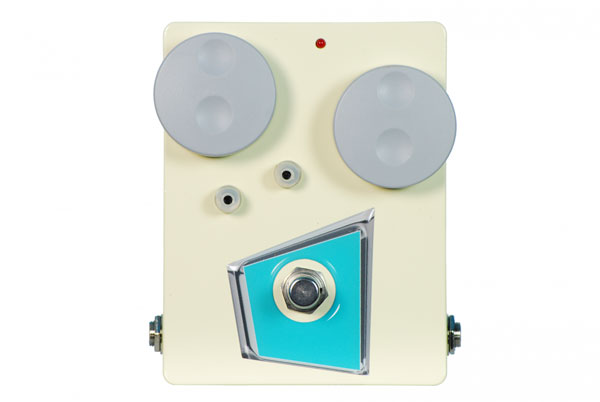

Roger Mayer TC Voodoo Vibe

Product Description

Overview:
The Vibe TC is the latest evolution from our famous Voodoo Vibe which is used by so many great guitarists such as Page ,Clapton and Gilmour and remains the benchmark industry standard for this type of pedal.
The TC version has the same chorus sound of the bigger Vibe with the easy performance foot controls of SPEED and INTENSITY all housed in a smaller size enclosure that caters for today’s modern needs.
There are also 2 smaller soft touch controls for SWEEP and LEVEL. This new format is very simple to use and has been designed to produce great sounds instantly with no fuss straight from the box. The 2 large knobs make accurate adjustment of SPEED and INTENSITY very fast and player friendly.

Technical:
The Vibe TC is completely analogue is operation and uses discrete Class A audio circuitry for that professional studio quality that the Vibe series is famous for. This extremely transparent and full sound quality is immediately apparent when listening to it as there is no graininess or digital artefacts.
The TC is triple shielded using a multilayer pc card with power and ground copper planes to provide ultimate low noise operation.
Extensive internal power supply filtering is used to produce virtual battery operation for all audio and a separate internal power regulator ensures that the modulation circuits remain the same when using different power supply voltages.
The TC can be operated with a wide range of power supply voltages from 9-18 volts.
A USA Carling foot switch is used to provide a TRUE BYPASS or HARD WIRE BYPASS signal path and the OUTPUT of the TC is from a low impedance buffer driver. This makes the unit very flexible for pedal boards and for use in recording studio setups.

Features:



PERFORMANCE FOOT CONTROL of SPEED and INTENSITY.
SWEEP control adjusts sweep parameters for wide range of chorus sounds.
LEVEL control adjusts overall gain to give a small boost in output if required.
LED indicates status of unit.
DC POWER JACK: Industry standard type and the unit will operate from 9-18 volts DC (Regulated power supply preferred and not included).
FOOTSWITCH: Top quality USA CARLING SWITCH for reliable operation.
ERGONOMIC DESIGN: The layout is normal industry standard with INPUT on RIGHT and POWER from the TOP.
SIZE: Width x 95, Depth x 105, Height x 50mm
WEIGHT: 353g.
