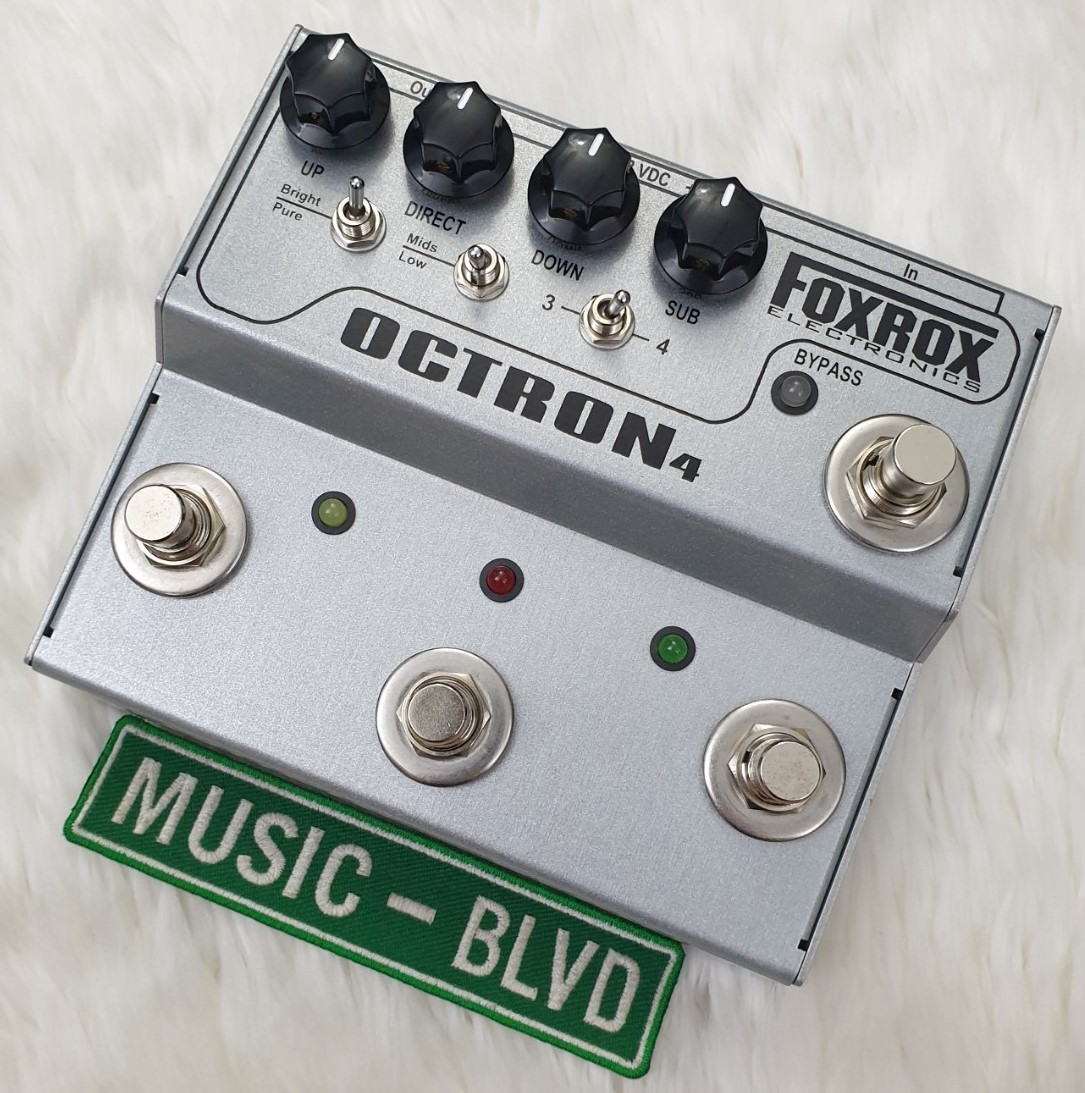

Foxrox Electronics Octron4 Analog Octave Pedal

OCTRON4 is an expanded version of the Foxrox Octron3 pedal. It has the same features with the addition of 3 foot switches for activating signals. The Octave DOWN section includes the ability to dial in sub-octave sounds.

OCTRON4 IS AN ANALOG OCTAVE PEDAL - NOT TO BE CONFUSED WITH A DIGITAL OCTAVE PEDAL.

SWITCHING: TRUE BYPASS is handled by the foot switch on the top level. Blue LED is lit up when activated.

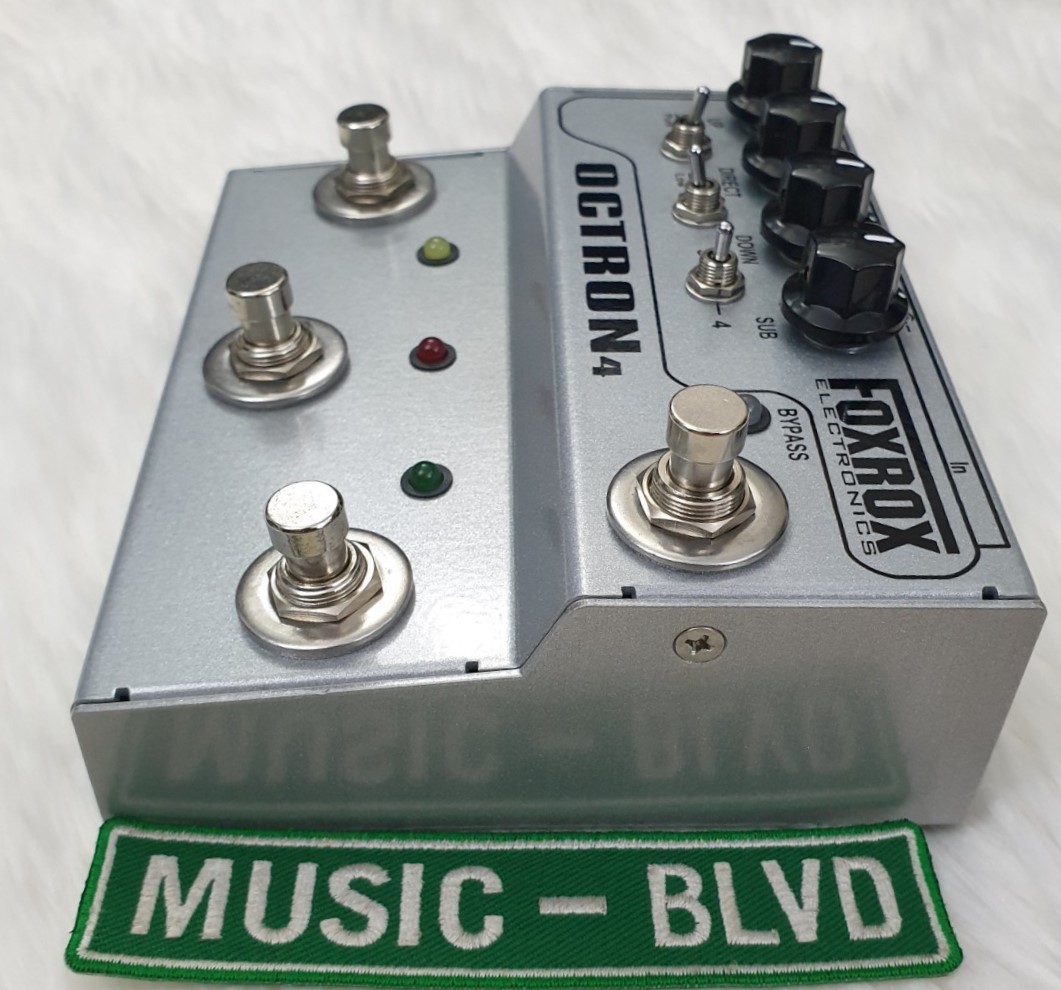

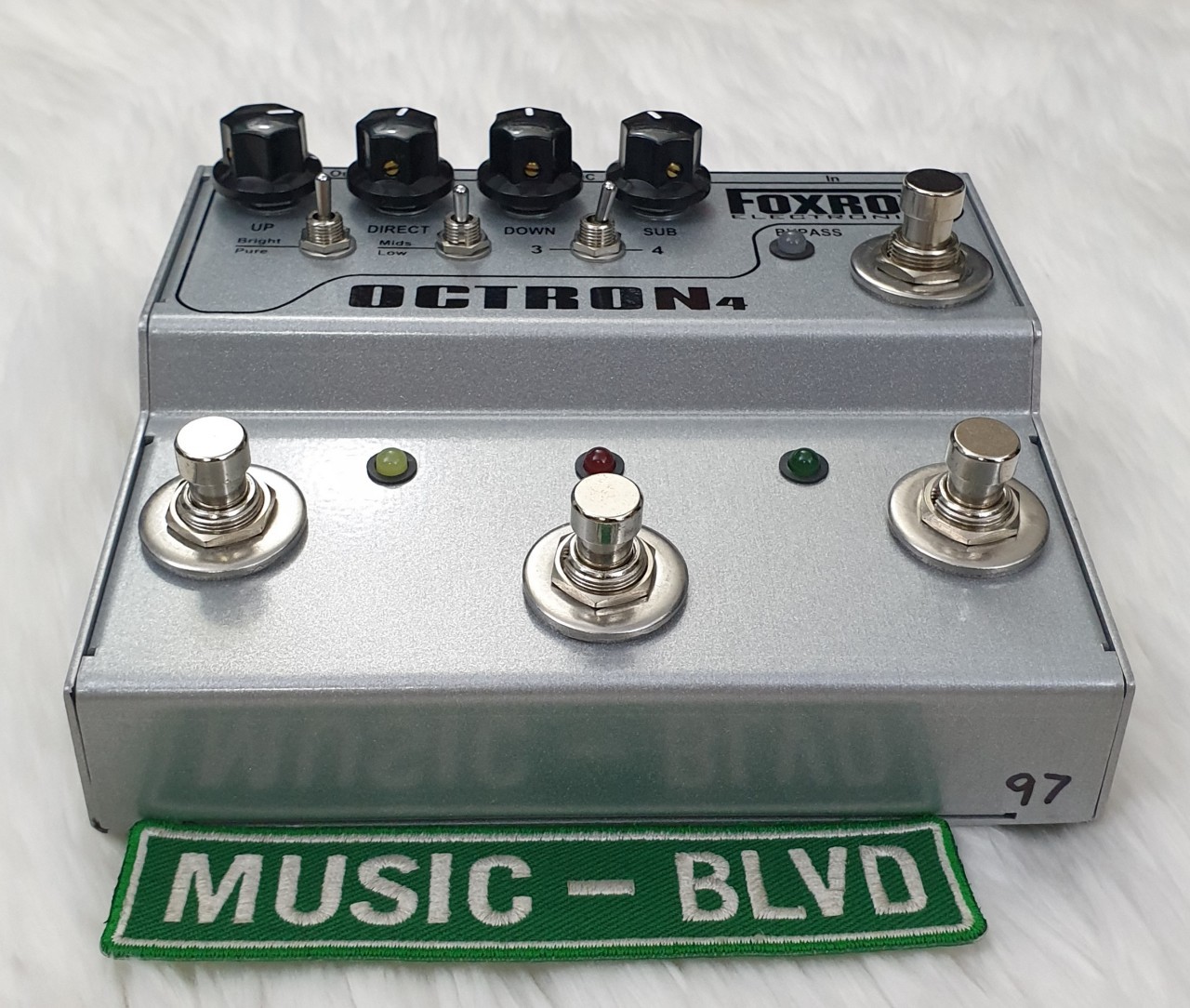

SIGNAL ACTIVATION SWITCHES: The three lower foot switches control relays that turn the signals on and off and they correspond with the level controls.

LEFT: Octave UP. Yellow LED shows status.
CENTER: Direct. Red LED shows status.
RIGHT: Octave DOWN and SUB, combined. Green LED shows status.

SUB: Creates a note more than one octave below the note you play.
DIVIDE BY 4: Two octaves below the note you play.
DIVIDE BY 3: One octave, plus a fourth below the note you play. Play E, and you get a very low A.

Foxrox Electronics Octron4 Analog Octave Pedal Features:

• DIRECT LEVEL: Controls the level of the direct signal while the pedal is activated.
• OCTAVE UP LEVEL: Controls the level of the Octave UP signal.
• BRIGHT/PURE SWITCH: Selects between a bright sound, rich in harmonics, and a darker sound with a more pure upper octave.
• OCTAVE DOWN LEVEL: Controls the level of the Octave DOWN.
• SUB LEVEL: Controls level of SUB.
• SUB DIVIDE 3 / 4: Select SUB for one and a half octaves down, or two octaves down.
• MIDS/LO SWITCH: Selects between a mid-boost and a super-fat low end. Setting applies to both Octave DOWN and SUB signals.

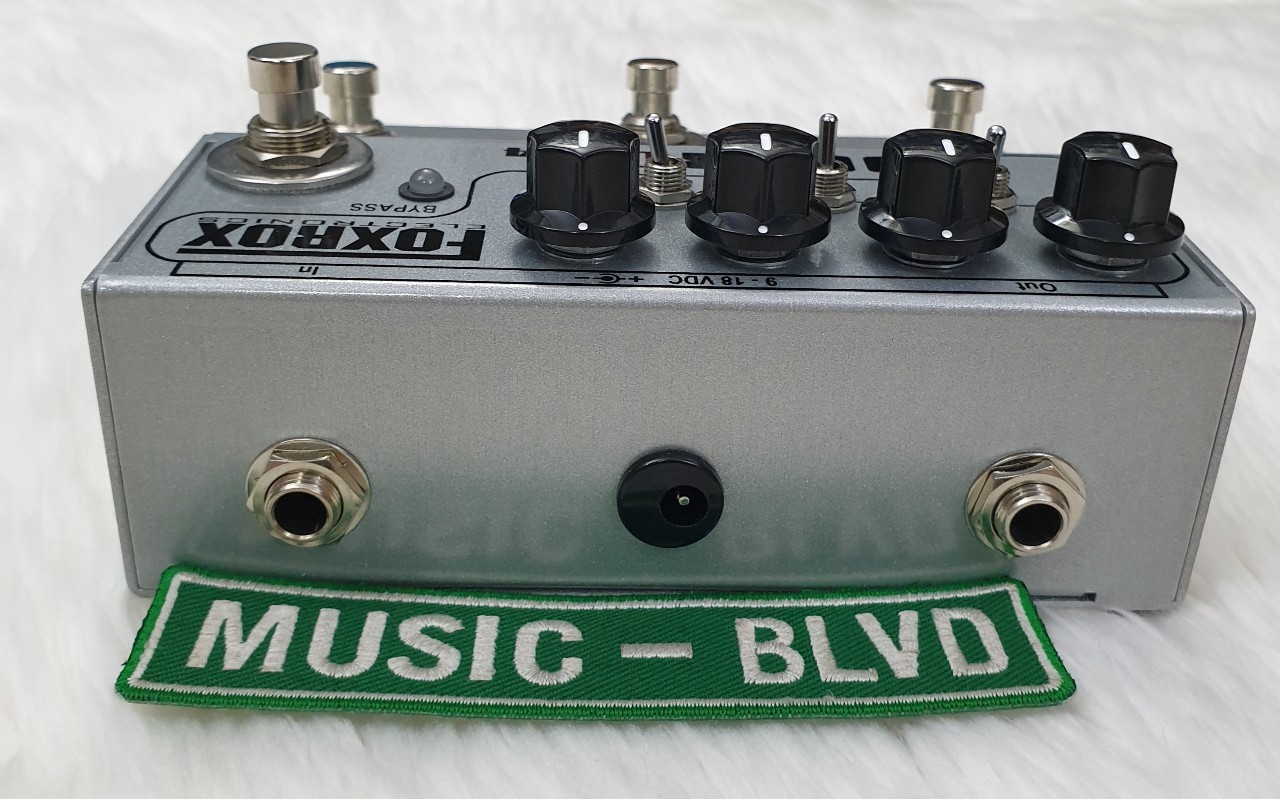

• INPUT JACK: 1/4" stereo jack. Disconnect Input to shut off battery.
• OUTPUT JACK: 1/4" stereo jack. A stereo jack is used to maintain equal tension.
