PreSonus Audiobox 22VSL USB 2.0 Recording System

Portable 24-bit/96kHz USB 2.0 audio/MIDI interface lets you record with
near-zero-latency dynamics processing.




The AudioBox 22VSL introduces a new generation of PreSonus
USB 2.0 audio/MIDI interfaces that take hardware/software integration to the
logical next step. Using your computer CPU and PreSonus Virtual StudioLive (VSL)
software, AudioBox VSL-series interfaces provide reverb and and delay effects
and the same Fat Channel compression, limiting, semi-parametric EQ, and
high-pass filter, as the PreSonus StudioLive 16.0.2 digital mixer— all with
inaudible latency. Now you can monitor and record with or without real-time
dynamics processing and EQ!

What’s so great about effects and
processing on monitors?
Tracking without hearing effects and signal
processing is like playing a video game with your eyes closed. Musicians rely on
aural cues when performing, and their performance can vary depending on what
they hear in their monitors. Adding just the right amount of compression, EQ,
and reverb can make a huge difference in their ability to hear themselves
clearly and to experience their performance as if it occurred in a natural space
rather than in the artificial sonic environment of the studio. The result is a
better performance and ultimately a better recording.

You have plenty of
effects plug-ins for your DAW, but processing audio with a DAW takes more time
than you might think. True, we’re talking milliseconds, but it’s long enough
that if you put DAW effects in your studio monitors, you’ll hear the original
sound slightly before the processed signal, which is very disorienting. That
much delay might be acceptable for live gigs, where the band is playing together
in an ambient space that has natural delay. But you can’t record that way in the
studio.

Fortunately, PreSonus' engineering wizards have dramatically
reduced processing delay in the AudioBox VSL series. The result: dynamics
processing, EQ, reverb, and effects that feel real, with no audible delay.


And if you like what you hear, you can record with AudioBox VSL-series
effects, too! These are the same high-quality StudioLive 16.0.2 Fat Channel
dynamics processors and EQs that professional musicians, engineers, and
producers record with every day.

Great processors are a PreSonus
tradition

PreSonus didn’t invent the first audio interface with
effects. They simply did it better and for less money. Sure, some interface
manufacturers who don’t normally make signal processors have added a compressor,
EQ and a few effects to their interfaces. But the AudioBox VSL series provides
all that, plus a separate limiter, expander, and high-pass filter—and we’ve been
making high-quality signal processors since 1995. The AudioBox VSL-series’
Virtual StudioLive (VSL)-based effects and Fat Channel processing have been
extensively field-tested and proven popular by tens of thousands of
StudioLive-series mixer users, including many top professionals.

Of
great importance, thanks to VSL’s drag-and-drop convenience, adding processing
and creating and loading presets is easy. Pro-level processing and superior ease
of use mean you’ll get better results and have more fun!


High-end sound in a portable, roadworthy interface

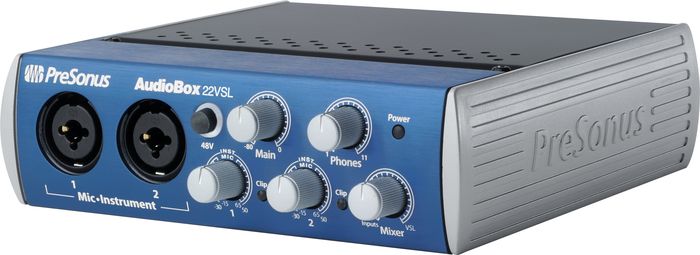

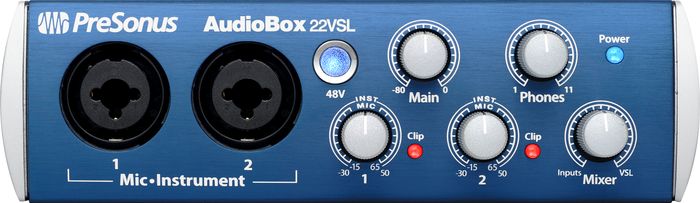

Bus-powered, compact, and rugged, the AudioBox 22VSL offers two convenient
front-panel mic/instrument combo inputs with global phantom power and provides
two line-level outputs. It sports the same high-headroom Class A XMAX preamps as
the StudioLive mixers and has 24-bit/96kHz converters with 114dB dynamic range
for clear, clean audio. And it boasts PreSonus’ legendary 150 mW headphone
output, which is loud enough to explode the oysters in a Po’-Boy sandwich. (Be
careful with your level control!)

When we tell you PreSonus made the
AudioBox 22VSL “rugged,” we’re not fooling! It employs the same heavy-duty steel
case as the original AudioBox USB—the unit Presonus famously stomped, kicked,
and drove over with a full-size truck before using it to make a very nice
recording. (You can witness this in the video AudioBox USB Built for the Road.)
Now that’s what we call “roadworthy.” And this mighty mite fits in just a third
of a rackspace and can be screw-mounted to a standard rack tray (not included).

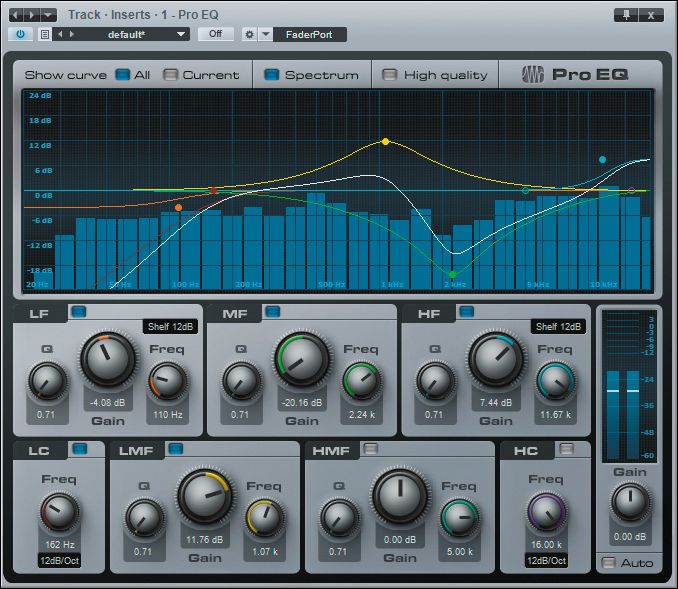

The flexibility and power of software

VSL
enables you to easily manage the processing and mixing from your Mac or Windows
PC and provides editor/librarian functions, making it simple to create and use a
library of presets. To get you started, PreSonus included the same library of
more than 50 Fat Channel presets that comes with StudioLive mixers. These
presets were created by professional musicians and engineers and let you
instantly set up dynamics processing and EQ for vocals, guitar, and much more.


Seamlessly integrated with the included Studio One™ Artist DAW and VSL,
the AudioBox 22VSL interface works with virtually all Mac and Windows
audio-recording software. And unlike most things nowadays, it’s very easy on
your budget.



Features

24-bit/96kHz 2 x 2 USB 2.0 recording interface
2 Class A XMAX mic / instrument preamps
2 instrument inputs
2 balanced main outputs
Near-zero-latency monitoring with extensive signal processing thanks to

VSL (Virtual Studio Live): 4 x 2 DSP mixer with StudioLive16.0.2 Fat Channel
dynamics processing and EQ for each analog input and its DAW return and two
stereo effects buses with reverb and delay
Over 50 Fat Channel DSP presets for enhancing instrument and vocal
recordings
Headphone amplifier
Analog monitor mixing with playback/Input mix control knob
Clip lights for both channels
Globally switchable phantom power

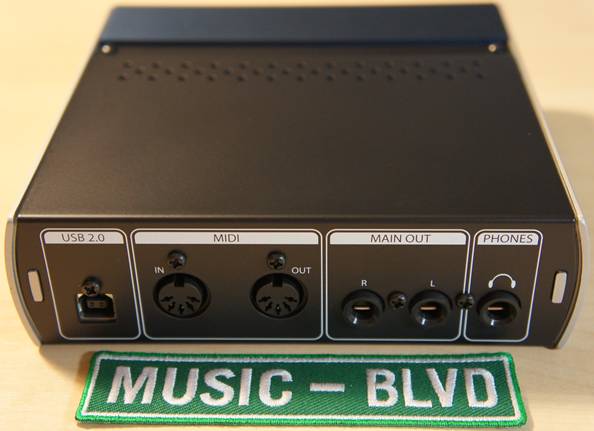

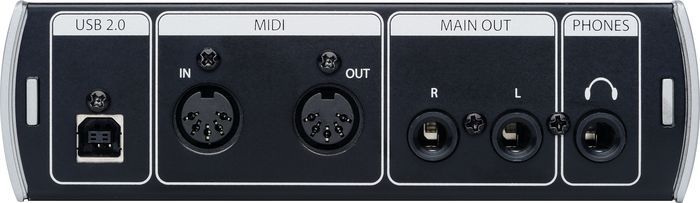

MIDI I/O
Bus-powered via USB
Rugged metal chassis
Rack-mountable in 1/3 rack space
Includes Studio One Artist software with unlimited track count




Get the next-generation USB 2.0 interface that gives you real-time,
low-latency effects; rock-solid construction; and high-end audio for low-end
prices: AudioBox 22VSL. Order today!

Audiobox 22VSL USB 2.0 Recording System Specifications:


Minimum computer-system requirements:
Windows
Windows Vista, Windows 7 (32- and 64-bit)
Intel Pentium 4 1.6GHz processor or AMD Athlon 64 3000+ (Turion) (2.8GHz or
faster recommended)
1GB RAM (2GB or more recommended)
Macintosh

Mac OS X 10.6 (Snow Leopard) or later (32- and 64-bit)
Intel Core 1 Solo 1.5GHz processor (Intel Core Duo or Intel Xeon processor
recommended)
1GB RAM (2GB or more recommended)
Windows and Macintosh Systems

USB 2.0 Port
Internet connection recommended
DVD-ROM drive (required to install Studio One Artist)
Microphone Inputs:
Connector Type: Combo, XLR, female, balanced
Mic Preamp EIN: -129dB, 20kHz BW, max gain, Rs=40 ohm, A-wtd
Frequency Response: 20Hz - 20kHz, ±0.3dB, unity gain
THD+N: 0.005%, 0dBu, 1kHz, unity gain, 20kHz BW, A-wtd
S/N Ratio: 94dB, 0dBu, 1kHz, unity gain, 20kHz BW, unwtd
Gain Control Range: -15dB to +65dB
Input Max Headroom: +10dBu, < 0.5% THD
Input Impedance: 1.7k ohm
Phantom Power: +48 VDC, 10mA total
Instrument Inputs
Connector Type: Combo, 1/4 TS, female, unbalanced
Frequency Response: 20 Hz - 20kHz, ±0.3dB, unity gain
THD+N: 0.006%, 0dBu, 1kHz, unity gain, 20kHz BW, A-wtd
S/N Ratio: 89dB, 0dBu, 1kHz, unity gain, 20kHz BW, unwtd
Gain Control Range: -30dB to +50dB
Input Max Headroom: +15dBu, < 0.5% THD
Input Impedance: 1M ohm
Analog Outputs
Connector Type: 1/4" TRS, female, impedance balanced
Frequency Response: 20Hz - 20kHz, ±0.2dB
THD+N: 0.002%, 1kHz, 20kHz BW, A-wtd
S/N Ratio: 107dB, 1kHz, max gain, 20kHz BW, unwtd
Output Level: +10dBu
Output Impedance: 51 ohm
Headphone Outputs:
Connector Type: 1/4" TRS, female, stereo
Maximum Power: 30mW/ch @ 60 ohm load
Frequency Response: 20Hz - 20kHz, ±0.5dB, max gain
THD+N: 0.08%, 1kHz, max gain, 20kHz BW, A-wtd
S/N Ratio: 90 dB, 1kHz, max gain, 20kHz BW, unwtd
Power:
Type: USB bus-powered, +5 VDC, < 500mA
Digital:
Host Interface: USB 2.0 high-speed
Bit Depth: 24-bit
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Latency: 2.8ms - 6ms, analog in to out.
ADC Dynamic Range: 114dB, 48kHz sample rate, A-wtd
DAC Dynamic Range: 114dB, 48kHz sample rate, A-wtd
Physical:

1/3U rack-mountable (with optional 3UMR rack-mounting system)

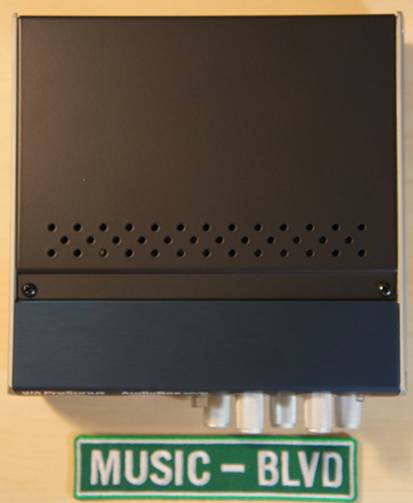

Road-rugged construction with all-metal chassis and metal knobs
Weight 1.6 lb. (0.7 kg)
Powered via USB bus—no wall wart!
