Audio-Technica 3000 Series (4th Gen) Network Enabled UHF Wireless with BP894xcH MicroSet Cardioid Condenser Headworn Microphone Band DE2

OVERVIEW


Easy, versatile network enabled wireless system.
The 3000 Series (fourth generation) wireless systems provide easy setup, versatile operation and rock-solid, richly detailed sound reproduction. Available network-enabled systems offer network monitoring and control via Audio-Technica’s Wireless Manager software.All 3000 Series Network enabled systems feature:Network port for monitoring and control via A-T Wireless Manager softwareAn AT8631 joining plate included in each network enabled system.Network enabled receivers will no longer have a 1/4" audio output but will retain the balanced XLR output.Network enabled systems feature monitor and control functions via A-T’s Wireless Manager software, not network audio.3000 Series NetworkThe Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands – DE2 (470–530 MHz) and EE1 (530–590 MHz) – that provide a class-leading 60 MHz tuning range. It’s more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver, then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.This system configuration features an ATW-R3210N receiver along with an ATW-T3201 body-pack transmitter. The ATW-T3201 is equipped with Audio-Technica's new rugged cH-style screw-down 4-pin connector. It provides secure connection to A-T's cH-style lavalier and headworn microphones, or cables. Transmitters feature rugged, metal housings and are powered by two AA batteries. Charging terminals on each transmitter work with the ATW-CHG3 and ATW-CHG3N charging docks (sold separately) to recharge NiMH batteries.3000 Series network-enabled systems offer the same features and configurations as the standard systems along with network monitoring and control via Audio-Technica’s Wireless Manager software. Each network-enabled receiver also comes with an AT8631 joining plate.
FEATURES

Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470– 530 MHz) and EE1 (530–590 MHz)
Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software
True Diversity operation reduces dropouts
Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
Frequency scan and IR sync functionality for ease of setup
Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
Handheld transmitter offers extremely low handling noise and includes an industry- standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
Antenna power available for powered antennas and other in-line RF devices
Ground-lift switch helps eliminate audible hum caused by ground loops
Balanced audio output jack

SPECIFICATIONS
Overall System Specifications

Operating Frequencies: Band DE2: 470.125 to 529.975 MHz
Band EE1: 530.000 to 589.975 MHz
Minimum Frequency step: 25kHz
Moderation Mode: FM
Dynamic Range: 115dB (A-weighted), typ.
Total Harmonic Distortion: < 1% (at 1kHz, 17.5kHz deviation)
Operating Range: 100m (300'), typical (Open range environment with no interfering signals)
Operation Temperature Range: 23°F to 113°F (Battery performance may be reduced at very low temperatures)
Frequency Response: T3201: 40Hz-13kHz (-3dB)

Receiver Specifications

Receiving System: True diversity
Image Rejection: 60dB nominal
RF Sensitivity: 20dBuV at 60dB S/N ratio
Maximum Output Level: XLR. Balanced: +14dBV
Antenna Input: BNC-Type, 50Ω
Bias: 12VDC, 160mA total
Power Requirements: 12V, 1A
Dimensions: 8.2” x 1.7” x 7.5”
Net Weight: 2.4 lb
Accessories Included: Two flexible UHF antennas, AC adapter (country dependent), rack-mount adapter, AT8631 joining plate

Body-Pack Transmitter Specifications

RF Power Output: High: 30mw, Low: 10mW at 50Ω, switchable
Spurious Emissions: Following federal and national regulations
Input Connection: Pin1: GND
Pin2: Inst Input
Pin3: Mic Input
Pin4: BIAS +5V
Batteries: Two 1.5V AA, not included
30mW : 8 hours
10mW : 9 hours
30mW : 9 hours
10mW: 9.5 hours
Dimensions: 3.2” x 2.5” x 0.9”
Net Weight: 0.22 lb

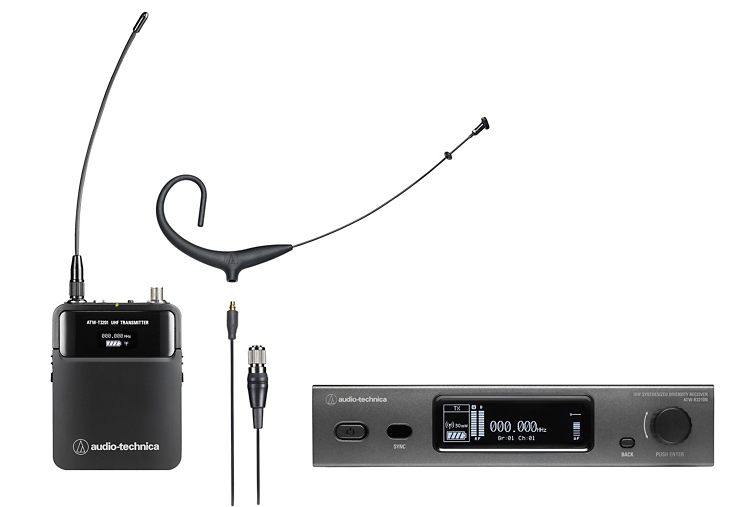

Set Includes

ATW-R3210N receiver
ATW-T3201 body-pack transmitter
BP894xcH MicroSet cardioid condenser headworn microphone
Windscreens
Clothing clip
