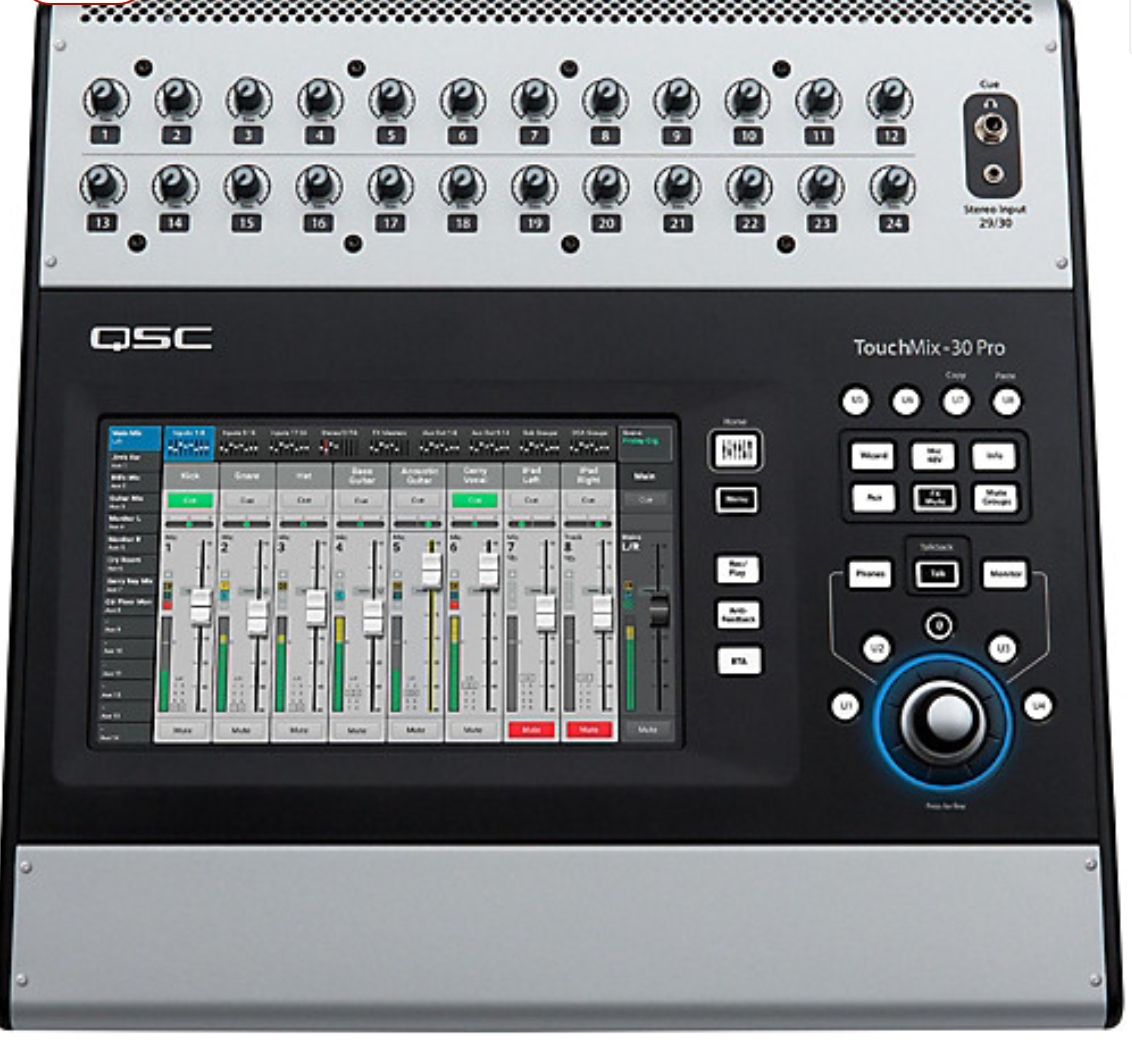

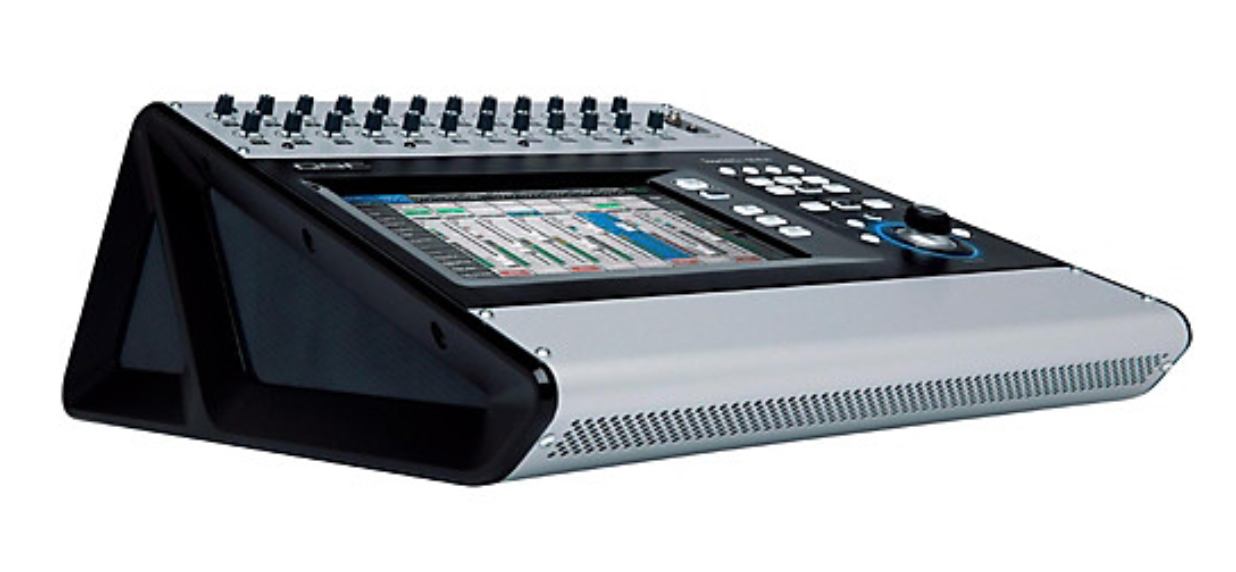

QSC TouchMix-30 Pro

A new standard for performance in a compact digital mixer, the QSC TouchMix-30 Pro has the features and functionality to satisfy the most demanding professional while providing an intuitive workflow that delivers great results quickly to users at every level of experience. An internet connection enables the TouchMix-30 Pro to check for, download and store future updates onto a USB memory device. Be sure to check QSC's website for the most up-to-date firmware release and recently added features. Users will also appreciate that the EQ graph now expands vertically into the RTA space when the channel is RTA is disabled, and that the Q parameter responds to pinching the touchscreen.Perfect for production professionals, musicians and bands as well as live performance venues, its 32 mixing channels (24 Mic/Line, 6 Line, Stereo USB) and 16 outputs offer tremendous signal management flexibility for a wide range of applications while a host of additional, new “Pro” features sets the TouchMix-30 Pro apart from its smaller siblings. All familiar TouchMix features such as Simple and Advanced Modes, Presets and Wizards are also fully implemented.
Features
Format

Analog/digital: Digital
Number of channels: 32
Busses/groups: 8
Aux sends: 14 XLR
Powered: No

Inputs

Total inputs: 32
Mic preamps: 24
XLR/TRS combo jacks: 4
XLR only jacks: 20
TRS only jacks: 6
Word Clock: No
RCA in: No
Ethernet: Yes

Outputs


Total main outputs: 16 x XLR
RCA: No
1/4” out: 0
USB: Yes
ADAT/optical out: 0
SpeakON: 0
AES / EBU: 0

Other Connectivity

Connections: Audio
MIDI I/O: No
Headphone output(s): 3
Wi-Fi: Yes
USB: Yes
Bluetooth: No

Onboard effects

Compression: Yes
Reverb: Yes
Delay: Yes
Chorus/flange: Yes

Equalization

Type: Parametric
EQ bands: 6
Master graphic: 1/3 octave and 12-band notch-filters

Other

Width: 18.1"
Height: 16.9"
Depth: 7.5"
Weight: 25 lb.
Automation: Yes
Fader type: Virtual
Motorized faders: No
Bundled software: No
Rackmountable: Yes

THMS: www.music-blvd.com $1900
