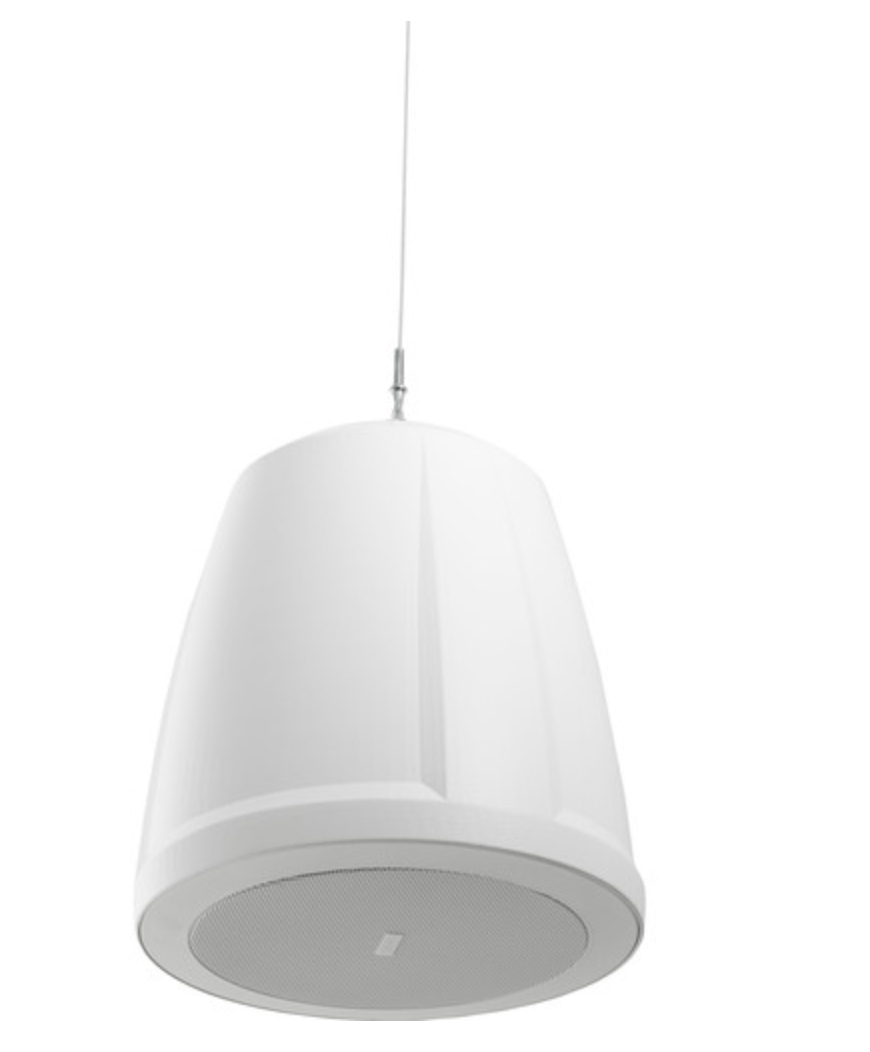

QSC AD-P6T AcousticDesign Series 6.5 2-Way 60W Pendant-Mount Loudspeaker

QSC AD-P6T-BK Overview

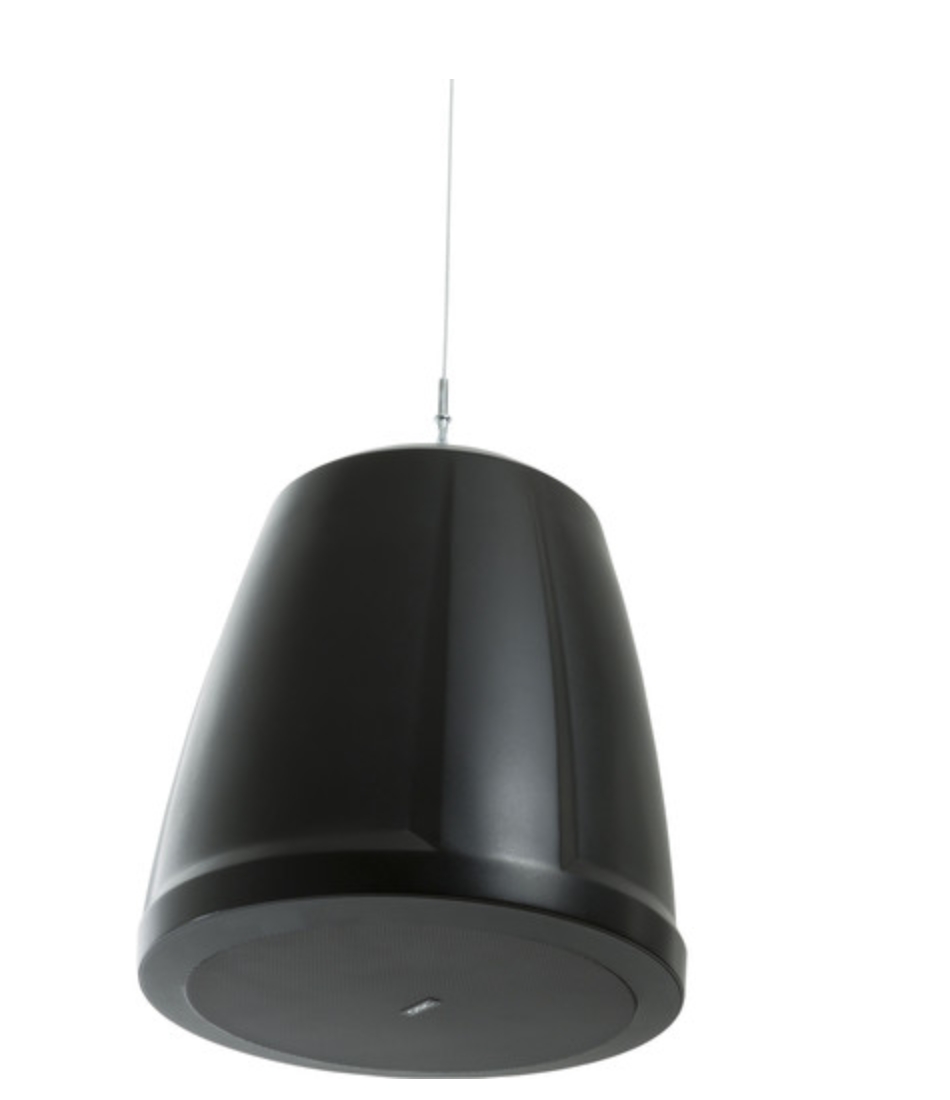

The black AcousticDesign Series QSC AD-P6T is a transformer-equipped 6.5" pendant-mount loudspeaker voiced to deliver tonal consistency throughout the AcousticDesign range of speakers, making them suitable for 70/100V or 16-ohm operation in a variety of foreground and background music applications.
Outfitted with a 6.5" weather-treated woofer and a 0.75" aluminum dome tweeter on a DMT waveguide, the AD-P6T offers broad 135° conical coverage and improved off-axis power while providing a frequency range of 56 Hz to 20 kHz (-10 dB). The speaker is capable of handling 60W RMS and producing a peak maximum SPL of 112 dB.
The AD-P6T utilizes a 4-pole Euroblock connector under a sealable input cover for easy wiring and protection from moisture. It features a UV-treated ABS enclosure and a magnetic steel grille with a blemish-free removable logo. Quick-link cable assemblies and slip-lock fasteners are supplied for efficient installation.








Designed for foreground and background music sound reinforcement in restaurant, retail, audio visual, education, and large system ancillary support applications as well as in concourses, casinos, transportation terminals, and worship facilities






Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications






6.5" weather-treated paper cone woofer with a 1" voice coil and a 0.75" aluminum dome tweeter






135° of conical coverage with improved off-axis power response reduces the number of loudspeakers required for even coverage






DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area






Rugged ABS enclosure is treated with UV inhibitors that prevent discoloration

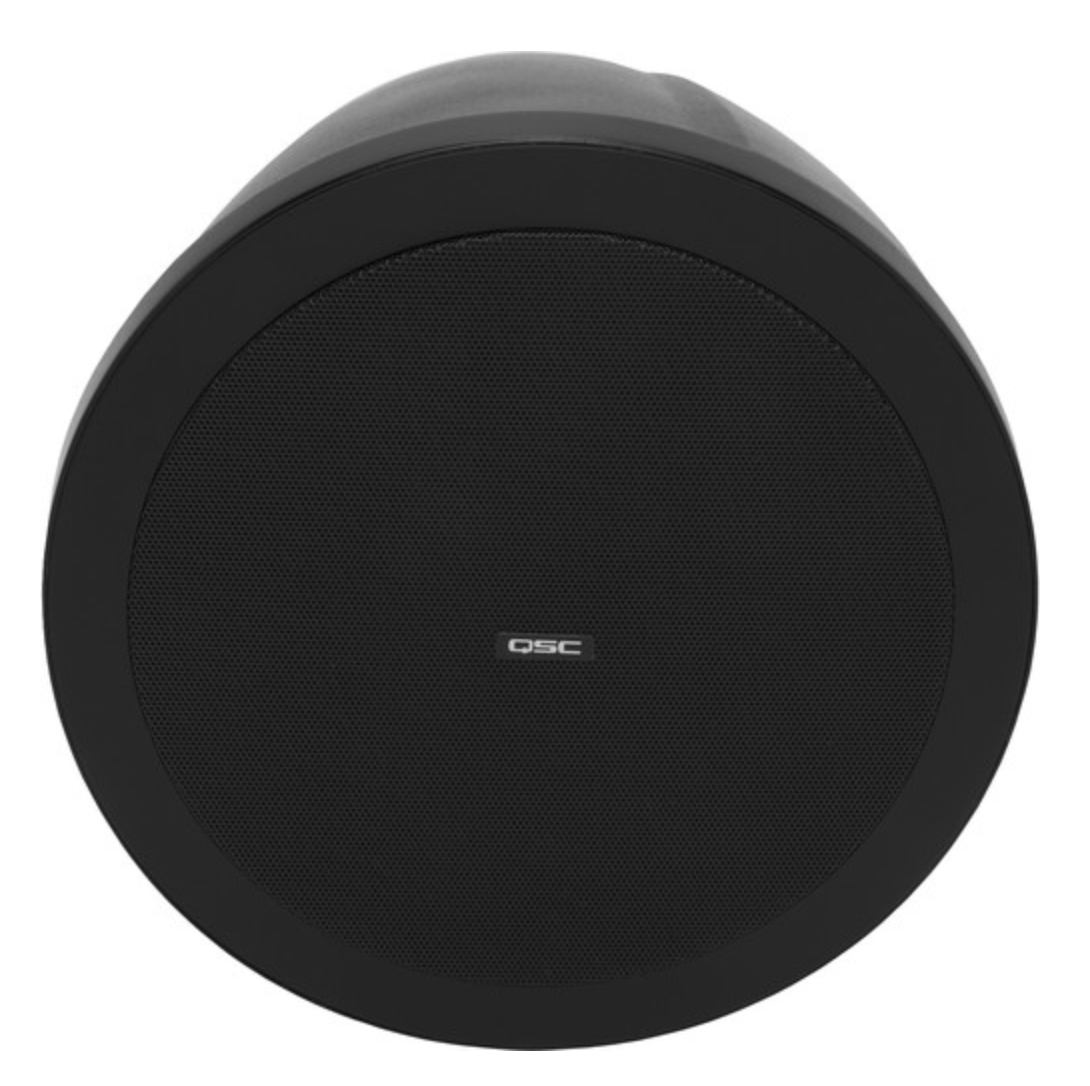

Snap-fit magnetic grille

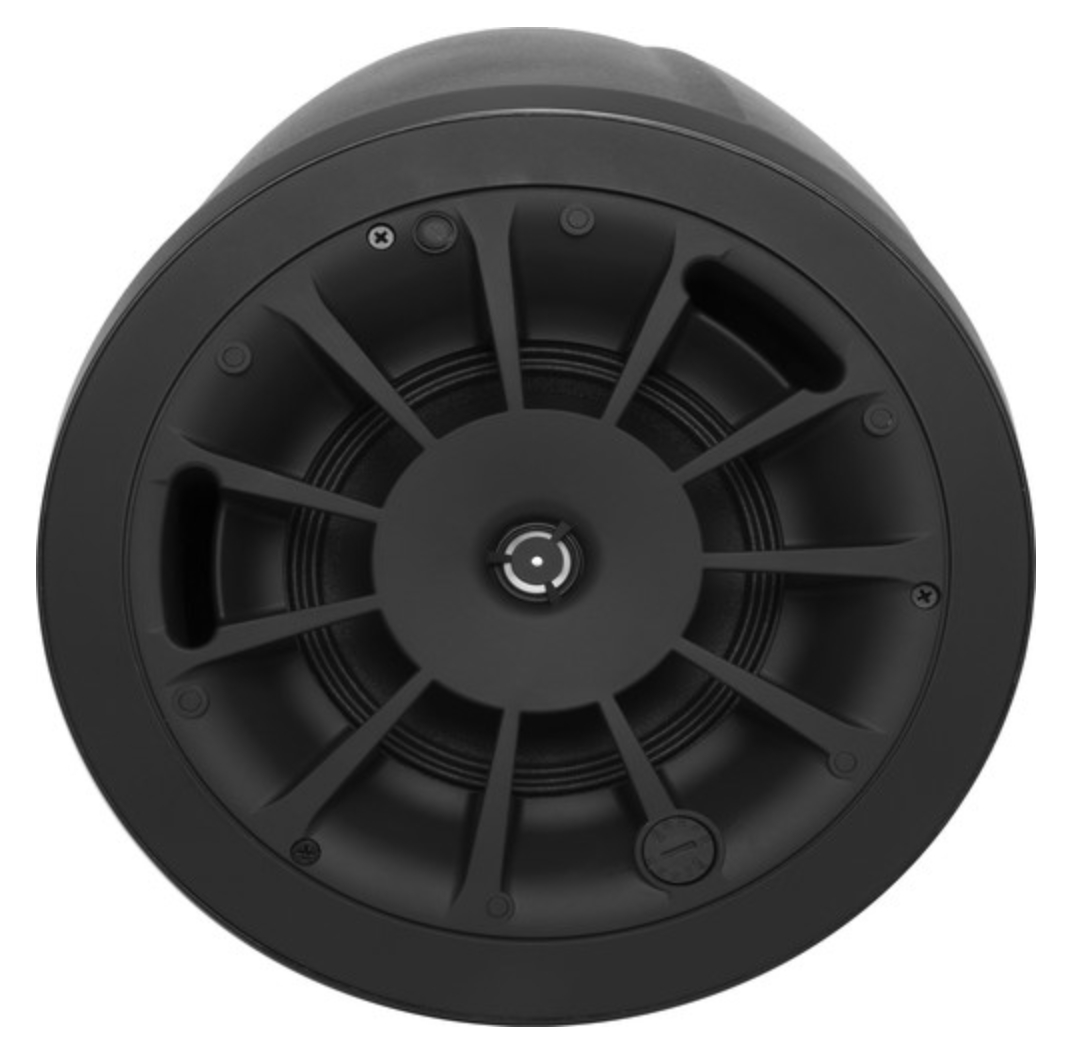

Low-saturation, low-loss 70/100V transformer with 16-ohm bypass and a rotary selector located under the grille






4-pole Euroblock connector with loop-thru wiring located under a sealable input cover to prevent moisture at the terminals






Advanced voicing filter sets using QSC Intrinsic Correction are available through either Q-Sys processing or CXD amplifier platforms (available separately)






Includes two quick-link cable assemblies and slip-lock fasteners to speed installation






Blemish-free removable logo









Key Features


6.5" Woofer, 0.75" Aluminum Dome Tweeter
60W RMS Power Handling
135° Conical Coverage
112 dB Peak Maximum SPL
56 Hz to 20 kHz Frequency Range
Low-Saturation Multi-Tap Transformer
Supports 70V, 100V, or 16-Ohm Operation
Euroblock Connector for Easy Wiring
Includes Quick-Link Cable Assemblies


Speaker



Active or Passive
Passive


Number of Included Speakers
1


Speaker Configuration
2-Way


Power Handling
For 2 Hours / At Low-Z:60 W RMS


Recommended Amplifier Power
120 W


Constant Voltage / Transformer Taps
70 V:60 / 30 / 15 / 7.5 W or 16 Ohms Bypass100 V:60 / 30 / 15 W or 16 Ohms Bypass


Impedance
16 Ohms (Nominal, Transformer Bypassed)


Transformer Wattage
60 W


Enclosure Type
Sealed


Shielded
No





Drivers



HF Driver
1 x 0.75" / 1.91 cm Waveguide-Coupled Aluminum Dome Tweeter


LF Driver
1 x 6.5" / 16.51 cm Paper Woofer


LF Voice Coil
1" / 2.54 cm





Performance



Frequency Range
56 Hz to 20 kHz -10 dB


Maximum SPL
106 dB (Continuous)112 dB (Peak)


Sensitivity
88 dB


Coverage Angle
135° (Conical)


Directivity
6.5 (Directivity/Q Factor)8 dB (Directivity Index)


Maximum Input Voltage
31 V RMS





Connectivity



I/O Connectors
1 x Euroblock 4-Pole Speaker Input/Thru (Locking, Removable)


Maximum Wire Gauge
18 AWG





Environmental



Certifications
UL, as per Manufacturer


Water / Weather Resistance
Water Resistant


IP Rating
IP34


Operating Temperature
-4 to 122°F / -20 to 50°C





Physical



Color
Black


Mounting
1 x Suspension (Rear)


Construction Material
ABS, Metal Grille


Dimensions
12.7 x 11.3" / 32.26 x 28.7 cm


Weight
9 lb / 4.1 kg





Packaging Info



Package Weight
12.25 lb


Box Dimensions (LxWxH)
16.3 x 13.8 x 13.7"
