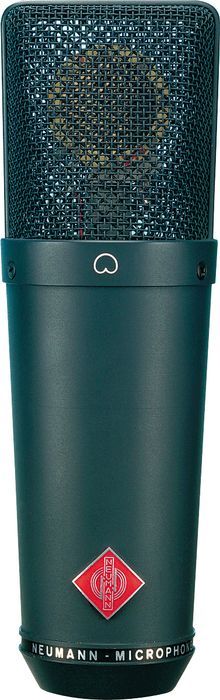

Neumann TLM-193 Cardioid Condenser Microphone

Smooth, detailed sound like only Neumann can deliver!




The Neumann TLM-193 is a front-addressed cardioid-pattern microphone ideal for professional recording, live productions, and project studios. Acoustic features The large diaphragm capsule inside the head grille has a very smooth frequency response over a wide acceptance angle. The curves are flat and parallel to the 0° frequency curve up to 10kHz within a pickup angle of ±100°. The TLM 193 differs from omnidirectional pressure transducers where, due to physical reasons, the diffuse-field and free-field responses never agree. This microphone has a very even diffuse-field response for all polar patterns. This is important in a reverberant environment, as more reflections arrive at the microphone from different directions. The acoustic information is not affected in its tonal quality when recorded by the microphone. This characteristic is achieved without resorting to corrective resonance effects. Therefore, the microphone maintains an excellent impulse response reproducing all transient phenomena of music and speech without coloration. Electrical features The letters TLM stand for "transformerless microphone." With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection, and prevents RF interference, that may influence the balanced audio signal. Compared to other microphones the self noise level of the TLM 193 is considerably reduced. As it is capable of handling sound pressure levels up to 140dB without distortion, the TLM 193 provides a dynamic range of 130dB, according to DIN/IEC 651. Operational safety All exposed surfaces of the microphone capsule, including the diaphragms, are at ground potential. This technology makes them highly immune to electrical and atmospheric interference and contamination through microscopic dust particles. The capsule is elastically mounted to avoid any structure-borne noise that could interfere with its operation. The frequency response of the TLM 193 amplifier is linear down to 20Hz. Even very low bass signals are reproduced without coloration. This implies that the microphone becomes more sensitive to subsonic frequencies, from structure-borne noise or pop-and-wind noise. To avoid any LF interference, we recommend using the EA-1 elastic suspension mount and a windscreen or pop filter. Requires phantom power.
Neumann TLM-193 Cardioid Condenser Microphone Features:

Large diaphragm cardioid microphone
Pressure-gradient transducer
Transformerless circuitry
Extremely low noise: 10dB (A)
Includes swivel mount
High-quality professional equipment for mid-size budgets Recommended uses:
Close miking of instruments with high sound-pressure levels
Announcer's mic for broadcasting/dubbing
Home recording and project studios
Vocalist recording Spot mic for
Wind instruments
Strings
Percussion
Guitar amps

Neumann TLM-193 Cardioid Condenser Microphone Includes:

SG193 swivel mount stand adapter, wooded jeweler s case

Go stereo - pop 2 in your cart TODAY!
Neumann TLM-193 Cardioid Condenser Microphone Specifications:

Acoustical operating principle: pressure gradient transducer
Directional pattern: cardioid
Frequency range: 20Hz to 20kHz
Sensitivity @ 1kHz into 1k ohms: 18mV/Pa
Rated impedance: 50 ohms
Rated load impedance: 1000 ohms
Equivalent SPL (CCIR 468-3): 21dB
Equivalent SPL (DIN/IEC 651): 10dB (A )
S/N ratio (CCIR 468-3) 73dB
S/N ratio (DIN/IEC 651) 84dB
Maximum SPL (THD 0.5%): 140dB
Maximum output voltage: 3.5V
Dynamic range of the microphone amplifier (DIN/IEC 651): 130dB
Supply voltage: 48V ±4V
Current consumption: 3.0mA
Connector: XLR3M
Weight: 17 oz.
Diameter: 2"
Length: 6-7/8"
