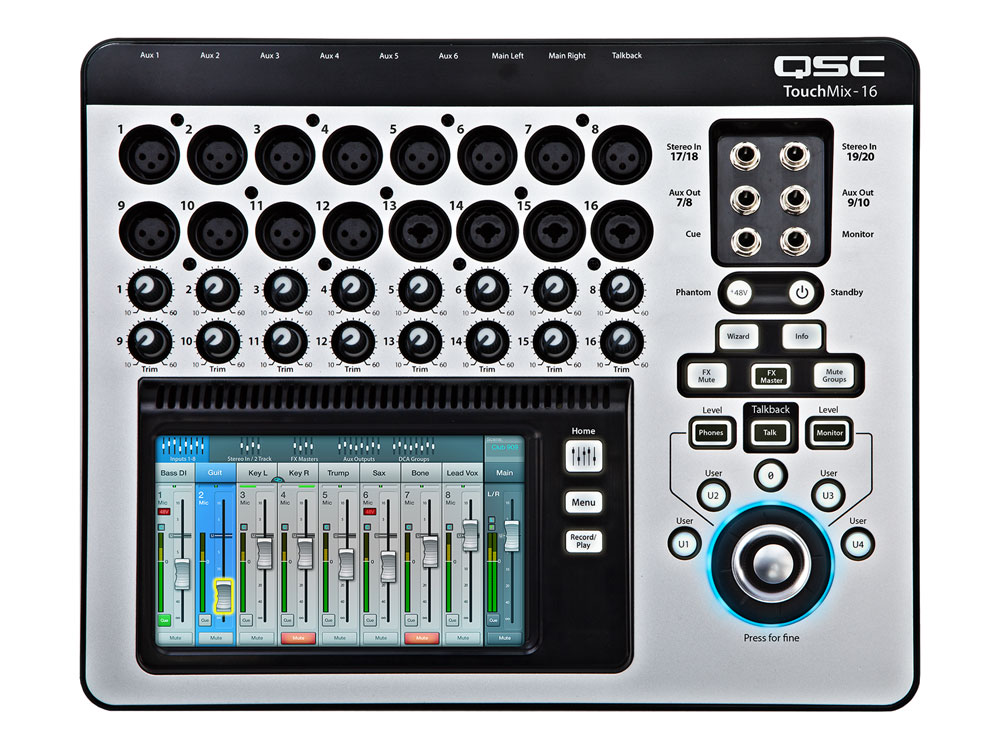

QSC TouchMix-16

20 Full Function Inputs: 12 Mic,4 Mic/Line (XLR/TRS Combo), 2 Stereo Line (TRS), Talkback (XLR), USB 2-track
Outputs: 6 Aux (XLR), 2 Stereo (TRS), Main R/L (XLR), Cue (TRS), Monitor (TRS)
TRS Aux outs drive wired In Ear Monitors (IEM) directly.
4-band full parametric EQ, variable high-pass and low-pass filters on all input channels.
Gate and compressor on all input channels.
4 professional quality stereo DSP effects plus a pitch corrector.
1/3 octave graphic equalization, limiters, delay and notch filters on main and aux. outputs.
8 DCA and 8 Mute groups.
Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.
Wizards, info and preset libraries assist the user with channel setup, effects selection and more.
Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair.
Remote control via mobile devices. Wi-Fi interface included.






Display


Display


6.1” x 3.5” (156mm x 90mm) color TFT, touch sensing




Inputs (Mic/Line)


12 Total


20 Total





4, XLR/TRS combi


4, XLR/TRS combi





4, XLR


12, XLR





2 Stereo, 1/4” TRS


2 Stereo, 1/4” TRS




Input (Talkback)


N/A


1, XLR




Outputs


2 Main, XLR, Line 4 Aux, XLR, Line 1 Stereo. TRS, (Line or In Ear Monitor, 16 Ohm min. impedence) 1 Stereo Cue, TRS, (Line or headphone, 16 Ohm min. impedence)


2 Main XLR, Line 6 Aux XLR, Line 2 Stereo Aux. TRS, (Line or In Ear Monitor, 16 Ohm min. impedence) 1 Stereo Monitor, TRS, (Line or headphone, 16 Ohm min. impedence) 1 Stereo Cue, TRS, (Line or headphone, 16 Ohm min. impedence)




Mic & Line Input Channel Processing (both models)


4-band, parametric EQ with Hi/Low shelving option, variable 24db/octave HPF & LPF, Gate, Compressor




2-Track (USB) & FX Return Processing (both models)


2-band shelving EQ, variable 24db/octave HPF, Gate, Compressor




Output Channel Processing (both models)


Main outputs and auxes 1 - 6: 1/3 octave GEQ, Variable HPF and LPF, 4-band variable notch filters, Limiter Auxes 7/8 & 9/10 (TM-16 only): 4-band PEQ, Limiter




Recording


14 tracks, requires USB 3.0 HD, minimum 7800 RPM


20 tracks, requires USB 3.0 HD, minimum 7800 RPM




Groups (both models)


8 DCA groups (with mutes), 8 Mute groups




Cue (both models)


Input cue priority, AFL, PFL, Solo In Place




Effects (both models)


4 professional effects engines including reverb, echo, delay, chorus. 50 factory, 50 user presets 1 Pitch Correct (assignable to any mono input channel)




Preset Memory (both models)


Mixer Preset: Factory & User mixer presets including all mixer parameters may be stored internally or loaded to / from USB Channel Preset: User channel presets may be stored internally or loaded to / from USB




External Control (both models)


iOS mixer app for iPad, control via Wi-Fi provides access to all mixer functions




Wi-Fi (both models)


USB Wi-Fi adapter included




Dimensions (HWD)


3.1" x 13.1" x 9.8" (79 mm x 333 mm x 250 mm)


3.5" x 14.2" x 11.7" (89 mm x 360 mm x 297 mm)




Weight


4.3 lb (1.95 kg)


5.9 lb (2.98 kg)




Line Voltage Requirements (both models)


100 VAC - 240 VAC, 50 - 60 Hz




Sampling Frequency (both models)


Selectable 44.1kHz or 48kHz




Internal Processing (both models)


32-bit floating point




Signal Delay (Latency; both models)





THD (both models)





Frequency Response (both models)


20 Hz - 20 kHz +/-0.5 dB, any input to any output




Dynamic Range (both models)


105dB




Equivalent Input Noise (both models)


-128dBu




Residual Output Noise (both models)


-86dBu




Crosstalk (both models)


-80dB




S/N Ratio (both models)


-94dB




Maximum Input Level (both models)


+16dB (Mic inputs), +22dB (Line inputs)




Phantom Power (both models)


48V, individually switchable per channel




Included Accessories (both models)


USB WiFI adapter, Soft Carrying Case, Power Supply





THMS: www.music-blvd.com $1,199.00 / $1340 (I)
