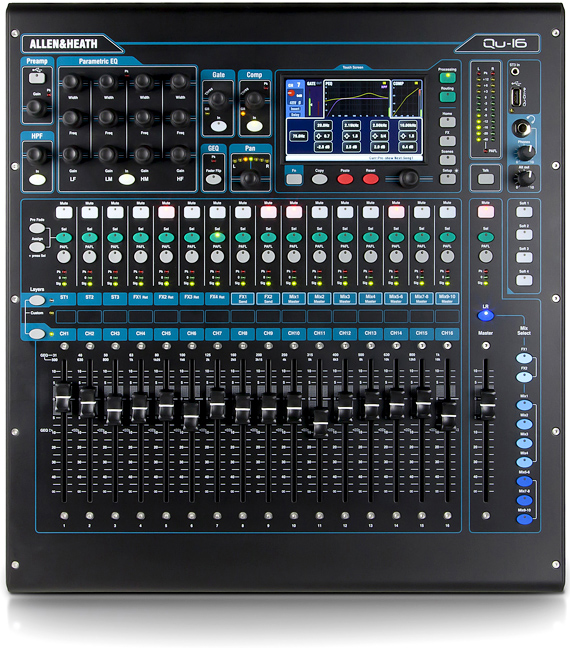

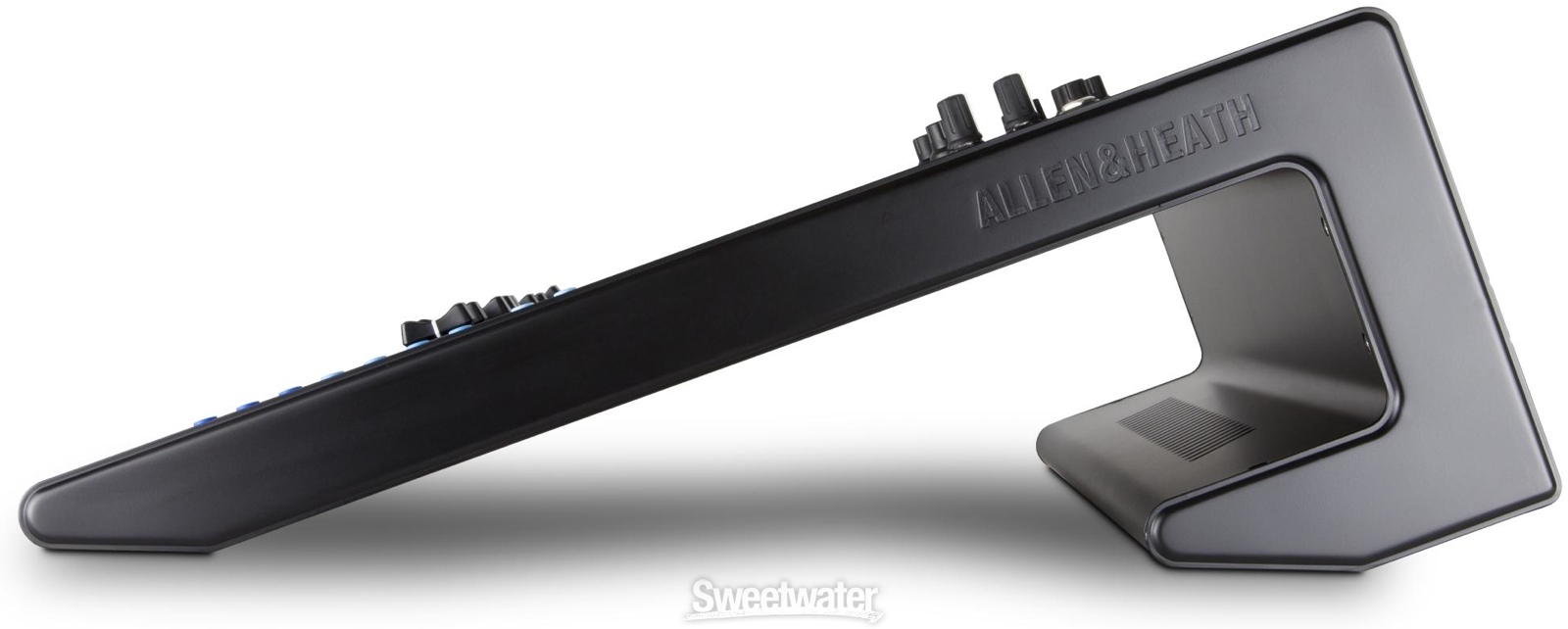

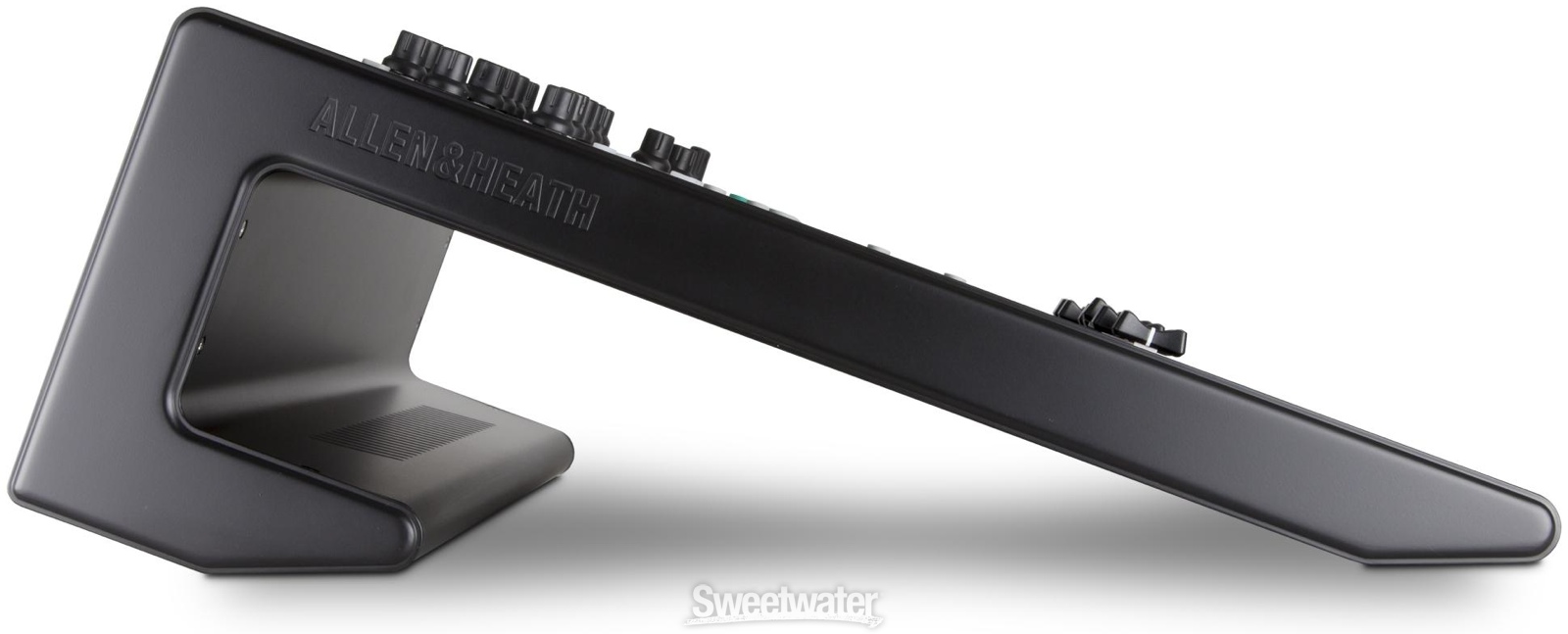

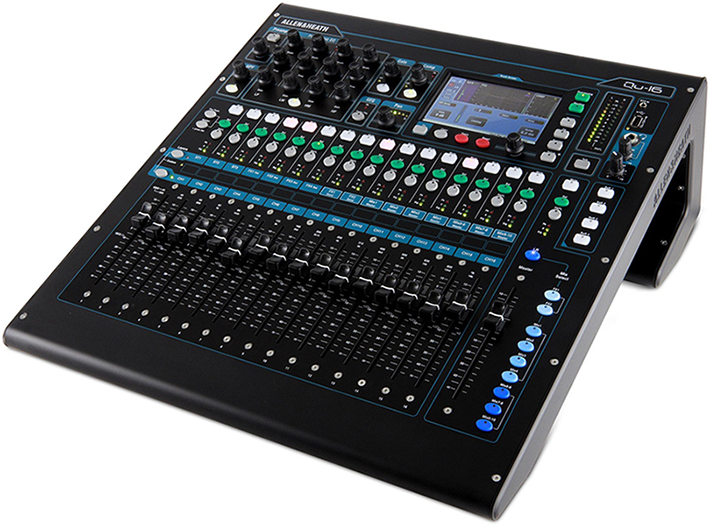

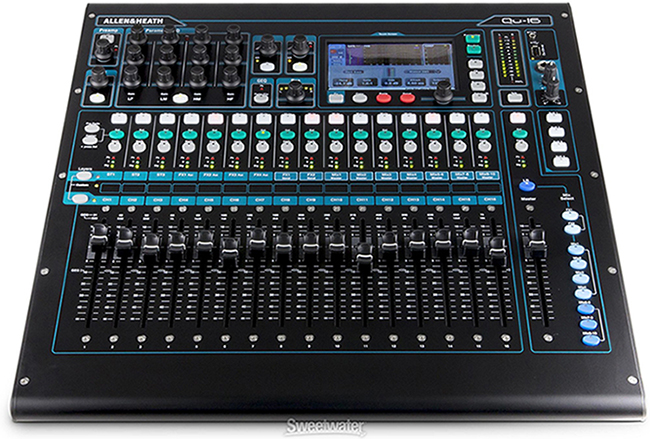

Allen & Heath QU-16 16-Channel Rack Mount Digital Mixer

A Compact and Budget-friendly Digital Mixer
The Allen & Heath Qu-16 rackmountable digital mixer utilizes the technology found in the GLD and iLive digital mixing systems to create a powerful and compact mixer for live and studio use. This powerful 16-channel mixer offers 14 mixes, an easy-to-use touchscreen, multi-track recording, motorized faders, and much more. You can even use your iPad to take control of key functions of the mixer, including key settings, monitor mixes, FOH mix, and more. Add an affordable digital mixer to your rig with the Allen & Heath Qu-16 digital mixer.
Allen & Heath Qu-16 Digital Mixer at a Glance:

A powerful, feature-laden digital mixer
Integrated USB recording
Take control with the Qu-Pad app

A powerful, feature-laden digital mixer
Allen & Heath's rackmountable Qu-16 digital mixer makes a fantastic mixing solution for live applications, studio work, and installations. This digital mixer gives you 16 TRS/XLR inputs, three TRS stereo inputs, 16 buses, and four stereo effects returns. You'll appreciate the flexibility the Qu-16's connectivity creates. You'll also love the Qu-16's four onboard effects engines, AES digital output options, moving faders, and direct-to-multitrack recording capability. A large touchscreen makes it easy to navigate the Qu-16's functions, and iPad compatibility means even more control over your mixes. We've only scratched the surface of what this powerhouse can do; call your Sweetwater Sales Engineer today and find out more!
Integrated USB recording
Record your shows and rehearsals with the Allen & Heath Qu-16's built-in Qu-Drive. This integrated USB recorder works with an external USB drive and lets you record and playback up to 18 channels of 24-bit/48kHz audio straight to/from your USB hard drive. In the studio, you can use the Qu-16 as a USB audio interface into your Mac DAW systems.
Take control with the Qu-Pad app
Take complete control of the Allen & Heath Qu-16 digital mixer with the Qu-Pad iPad app. Roam the venue to check the sound while tweaking the mix and EQ of the system. Simply set up a Wi-Fi router and gain control of all the live mixing parameters you need, right on your iPad. Mixing a show has never been this easy.
Allen & Heath Qu-16 Digital Mixer Features:

Built-in touchscreen offers access to channel strips, effects, and more
Motorized faders make settings recall easier than ever
Use your iPad to take control of key functions of the mixer
Features many iLive effects emulations
USB interface for library date, scene storage, and multi-track recording
Powered by 5 high-speed dual core ARM processors

Put a compact digital mixer in your rack with the Allen & Heath Qu-16 digital mixer!


Tech Specs



Type
Digital


Channels
16


Inputs - Mic Preamps
16 x XLR


Inputs - Line
16 x TRS, 2 x Stereo TRS in


Inputs - Other
1 x 1/4" Stereo, 1 x XLR talkback


Inputs - Digital
1 x dSnake


Outputs - Main
2 x XLR, 10 x XLR Mix outs


Outputs - Direct
2 x Stereo TRS


Outputs - Digital
1 x AES/EBU (XLR)


Headphones
1 x 1/4"


Send/Return I/O
4 x Stereo


Data I/O
Ethernet, USB


EQ Bands
4-band


Busses/Groups
16 Bus


Faders
17 x 100mm motorized


Channel Inserts
Yes


Effects
Yes


Talkback
Yes


Transport Controls
No


DAW Control
Yes


Computer Connectivity
1 x USB


Rackmountable
Yes


Height
7.4"


Depth
19.7"


Width
17.4"


Weight
22 lbs.


Manufacturer Part Number
Qu-16
