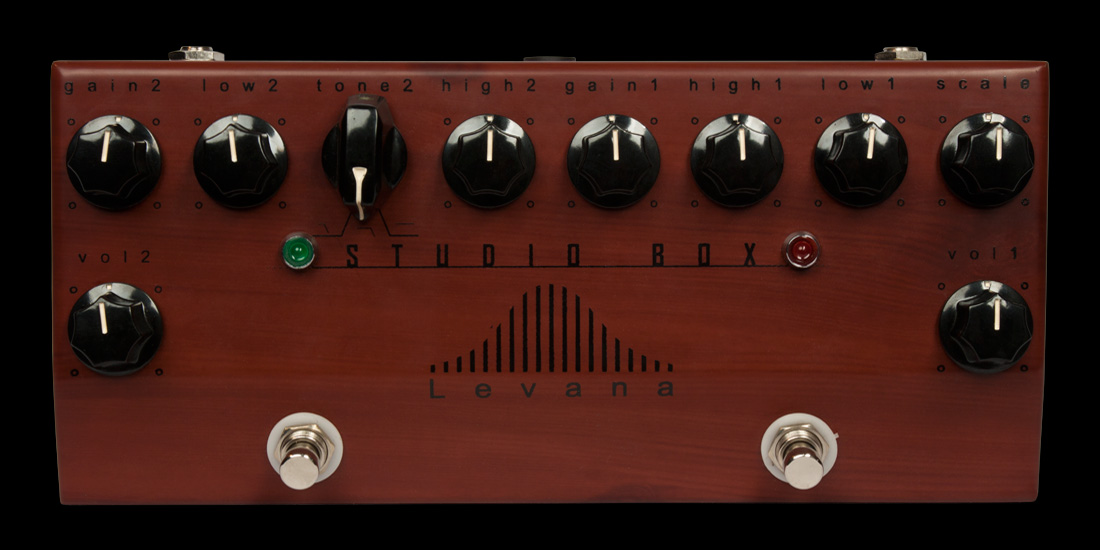

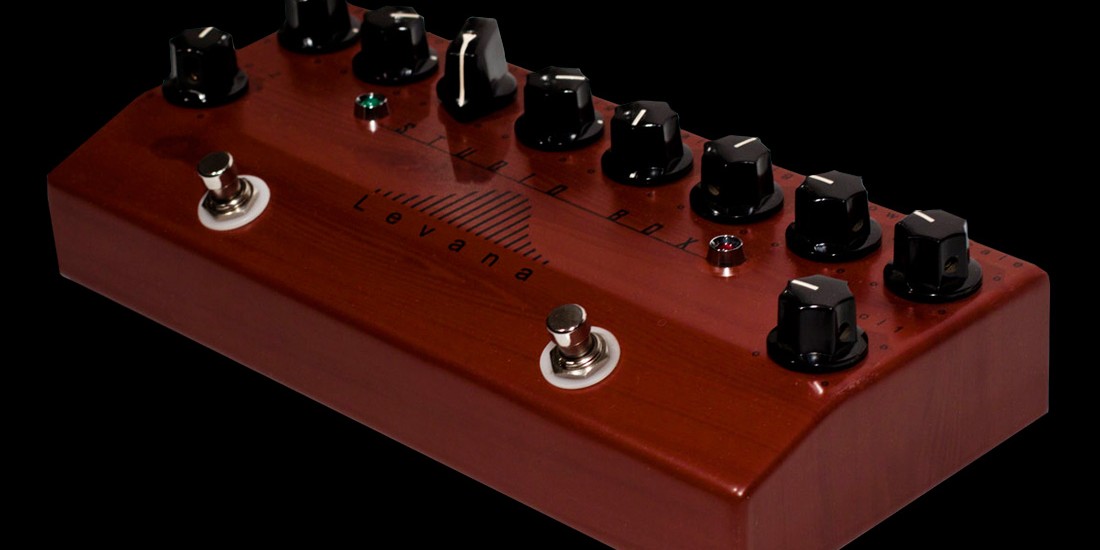

Levana Studio Box

The Studio Box is a two channel independent and powerful sound station that is capable of manipulating virtually any audio signal through it. Featuring dual Gain circuitry, radical EQ control, and our very own focal point frequency controller (Scale). The Studio Box became a permanent fixture in many professional and home studios, along with a wide range of performing artists around the world for its endless sound configuration possibilities.

SPECIFICATIONS
Nominal input level: -20db
Input impedance: 2.2M<>20M
Nominal output level: -20db
Output impedance: 17.2K ><89K

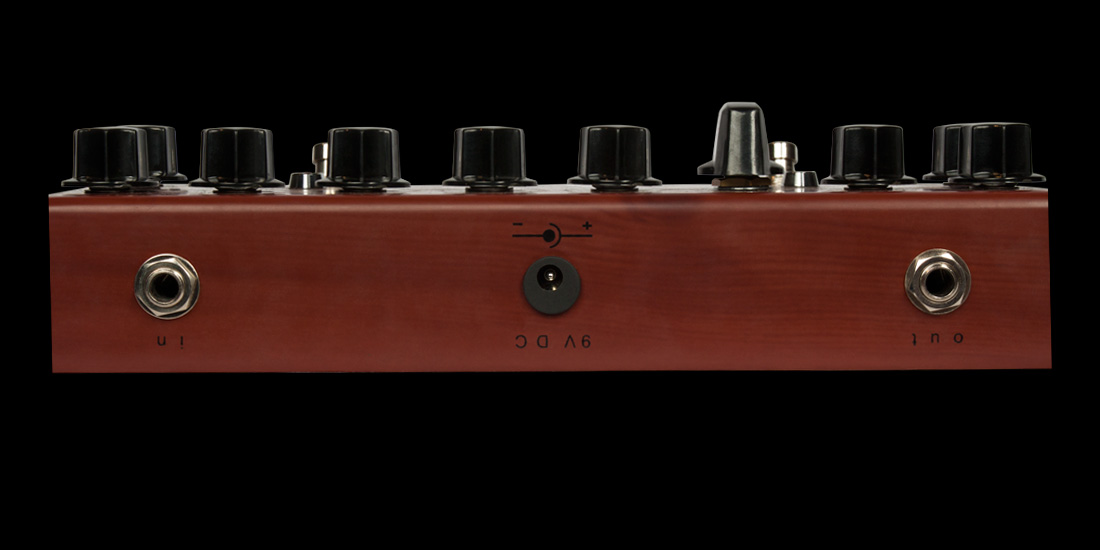

Connectors:
- Input and output ¼ inch mono jack
- DC in – 2.1 mm female
Power supply:
Use only Levana power supply or 9v dc linear regulated power supply (min current 1000mA (-) center)
Current draw: 11mA @ 9v dc
Accessories: User Manual / product catalog / limited warranty /”LEVANA” power supply (optional).
Controllers Channel 1: volume / gain / high frequency control / low frequency adjusts / scale control.
Controllers Channel 2: volume / gain / high frequency control / low frequency adjusts / 3 position master tone control.
Dimensions and weight:
Width – 10.06 inch (255.650mm) / Depth – 4.550 inch (115.57mm) / Height – 1.7 inch (43.3mm)
Weight – 4.4 lbs (2.0Kg)
