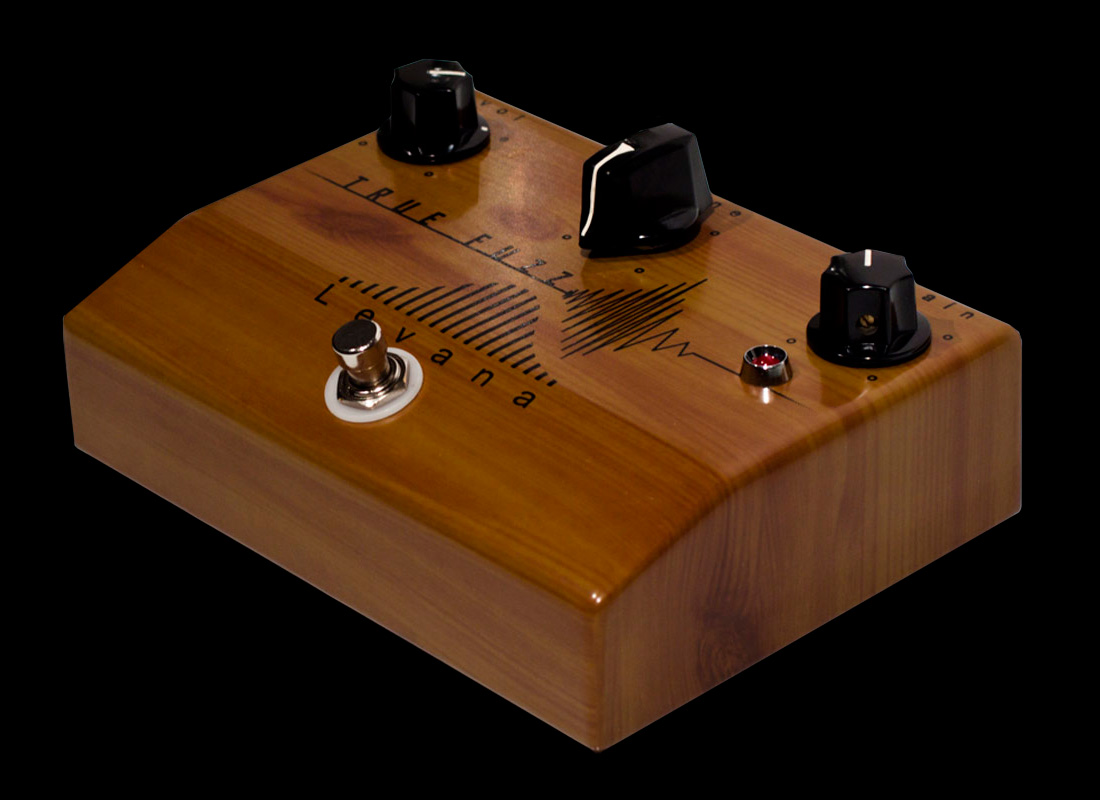

Levana True Fuzz

DESCRIPTION
The True Fuzz was inspired from the great 1970′s rock era. hand crafted with authentic premium vintage Germanium transistors, the True-Fuzz has the widest possible range of vintage to moder Fuzz tones


A Combination of Gain, Three position tone selector and a Master volume controller allows the user ultimate filtration control between extreme high frequencies and low fuzzy boosts. DC input will accept 6v – 12v, which allows the user to customize the Fuzz’s character (Lower voltage will result in lower Gain and output levels, versus higher voltage that will result in enhancement of low frequencies, higher Gain and higher output levels).


SPECIFICATIONS
Nominal input level: -20db
Input impedance: <20M
Nominal output level: -20db
Output impedance: 95K

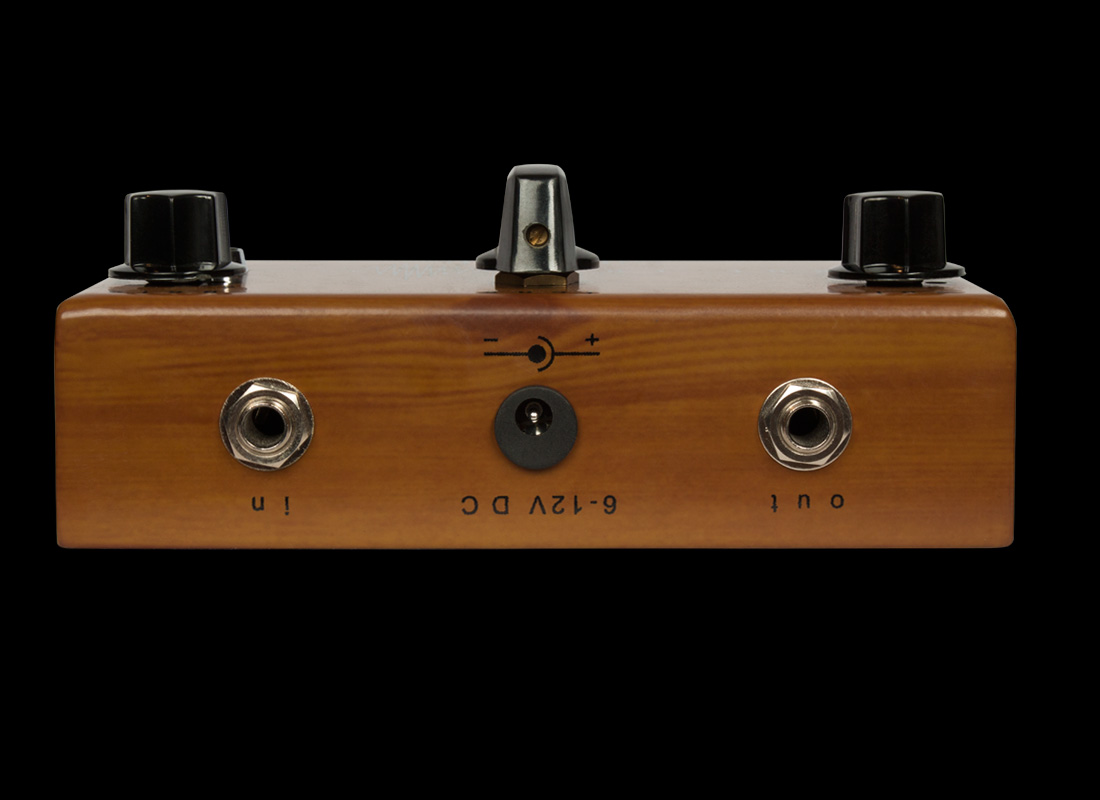

Connectors:
- Input and output ¼ inch mono jack
- DC in – 2.1 mm female
Power supply:
Use only Levana power supply or 9v dc linear regulated power supply (min current 1000mA (-) center)
Current draw: 6mA @ 9v dc
Accessories: User Manual / product catalog / limited warranty /”LEVANA” power supply (optional).
Controllers: volume / gain / 3 position tone control.
Dimensions and weight:
Width-6.320 inch (160.5mm) / depth-4.550 inch (115.57mm) / high-1.7 inch (43.3mm)
Weight – 2.8 lbs
