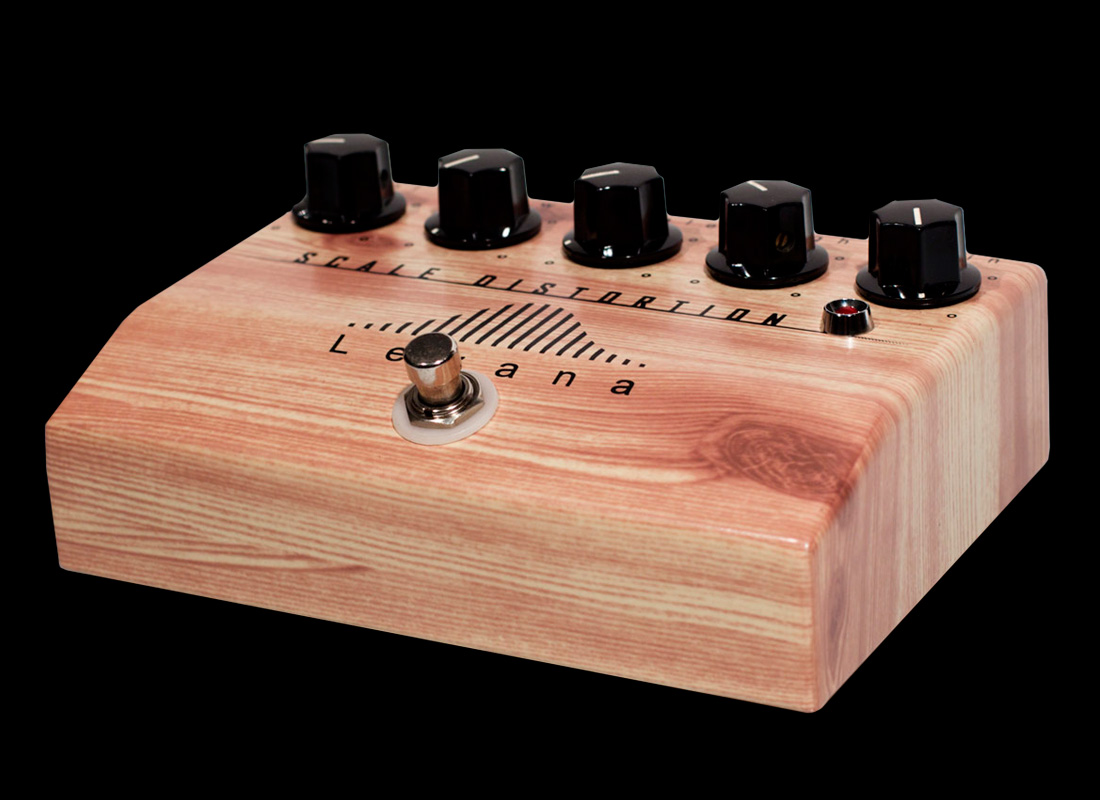

Levana Scale-Distortion

DESCRIPTION


Our Scale-Distortion is an extremely versatile overdrive / distortion unit with a one-of-a-kind “scale” feature that controls the main frequency of your guitar and any other musical instrument. With just a twist of a knob go from a subtle bluesy drive to an explosive head-banging, mind blowing distortion, to a radical screaming high-pitched monster and experience the endless configuration possibilities when using with the hi, low and gain controls.


SPECIFICATIONS
Nominal input level: -20db
Input impedance: 2.2M
Nominal output level: -20db
Output impedance: 17.2K max
Connectors:
- Input and output ¼ inch mono jack
- DC in – 2.1 mm female
Power supply:
Use only Levana power supply or 9v dc linear regulated power supply (min current 1000mA (-) center)
Current draw: 6mA @ 9v dc
Accessories: User Manual / product catalog / limited warranty /”LEVANA” power supply (optional).
Controllers: volume / gain / high frequency control / low frequency control / scale EQ control.
Dimensions and weight:
Width-6.324 inch / depth-4.547 inch / high-2.551 inch /
Weight – 3.6 lbs
