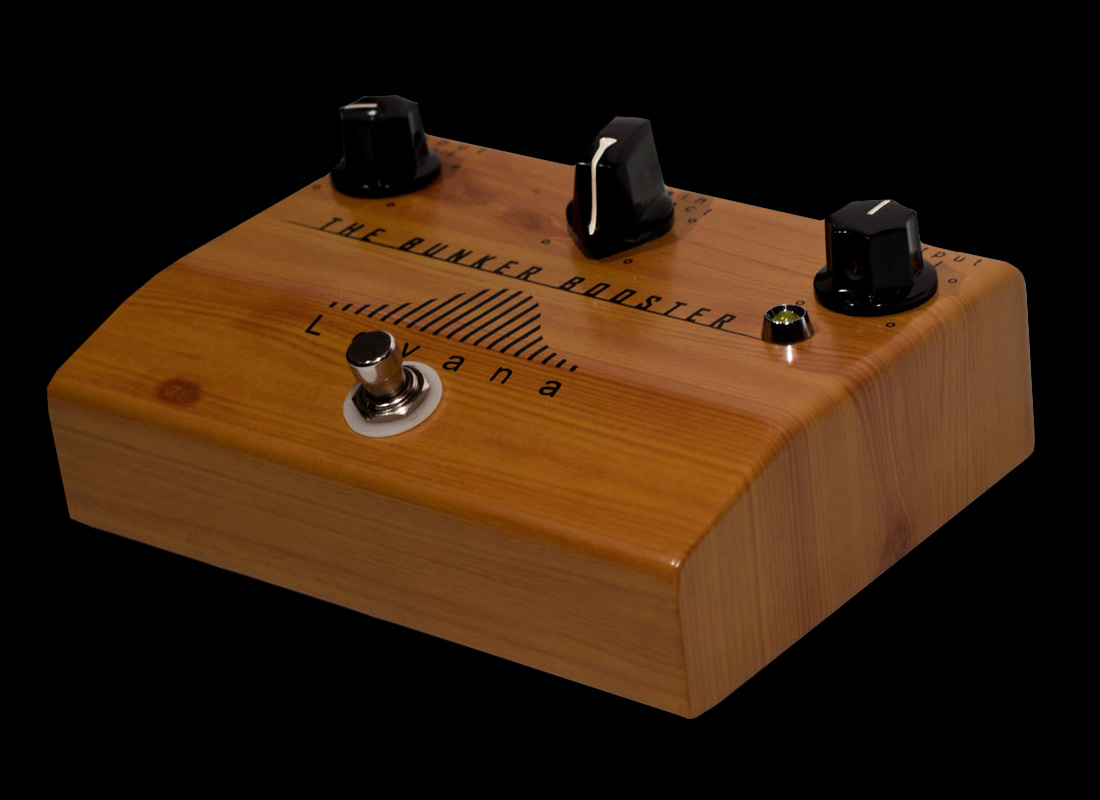

Levana Bunker Booster

DESCRIPTION
The Bunker Booster is a dual-purposed device designed mainly for low frequency instruments. With its gain selection of vintage Germanium (for added gain and compression), and modern Silicone (for expansion and boost), it also serves as a booster / sustainer with any other drive unit.


SPECIFICATIONS
Nominal input level: -20db
Input impedance: >20M
Nominal output level: -20db
Output impedance: 9.3K >< 10.5M
Connectors:
- Input and output ¼ inch mono jack
- DC in – 2.1 mm female
Power supply:
Use only Levana power supply or 9v dc linear regulated power supply (min current 1000mA (-) center)
Current draw: 1.6mA @ 9v dc
Accessories: User Manual / product catalog / limited warranty /”LEVANA” power supply (optional).
Controllers: input volume / gain select / output volume
Dimensions and weight:
Width-6.320 inch (160.5mm) / depth-4.550 inch (115.57mm) / high-1.7 inch (43.3mm)
Weight – 2.8 lbs
