TOADWORKS Barracuda Analog Flanger

TOADWORKS BARRACUDA ANALOG FLANGER

ToadWorks Barracuda is the ONLY production effect pedal that is designed to reproduce the unique flanger sounds featured on the 1977 Heart classic "Barracuda".

The circuit is a modern interpretation of the original custom unit, with a few exciting changes:
- Designed around modern components
- Stereo Output
- Manual sweep control via an Expression Pedal
- Addition of Level and Depth controls
- Uses 9V DC power
- Improved noise floor
- Superior construction
- As with all ToadWorks effect pedals, Barracuda is wired for true-bypass.

Barracuda is hand wired, by people, not machines. From our high quality 3PDT switches to the custom made enclosures and knobs, each component is the finest available, making ToadWorks pedals the most well-built and reliable effect pedals in the world.

ToadWorks Barracuda is a modern take on the analog BBD flanger. Using currently available components, ToadWorks has created a sonically superior reproduction of the original unit, with none of the hassle associated with obsolete parts.

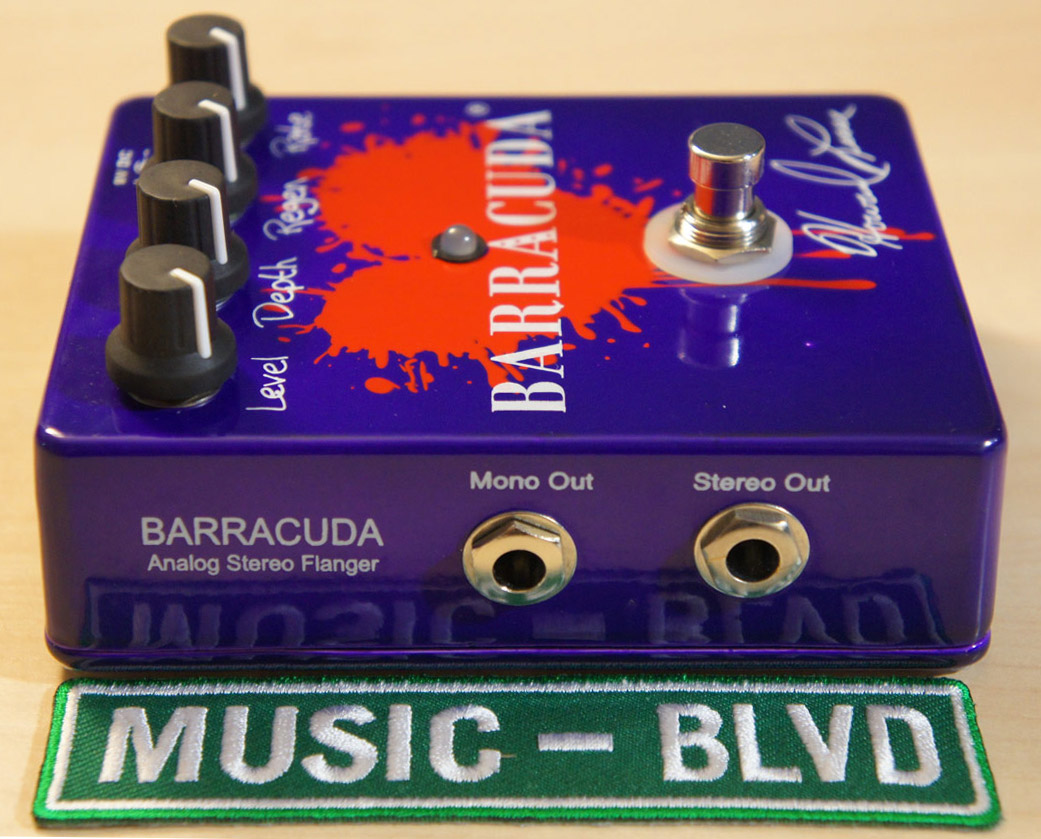

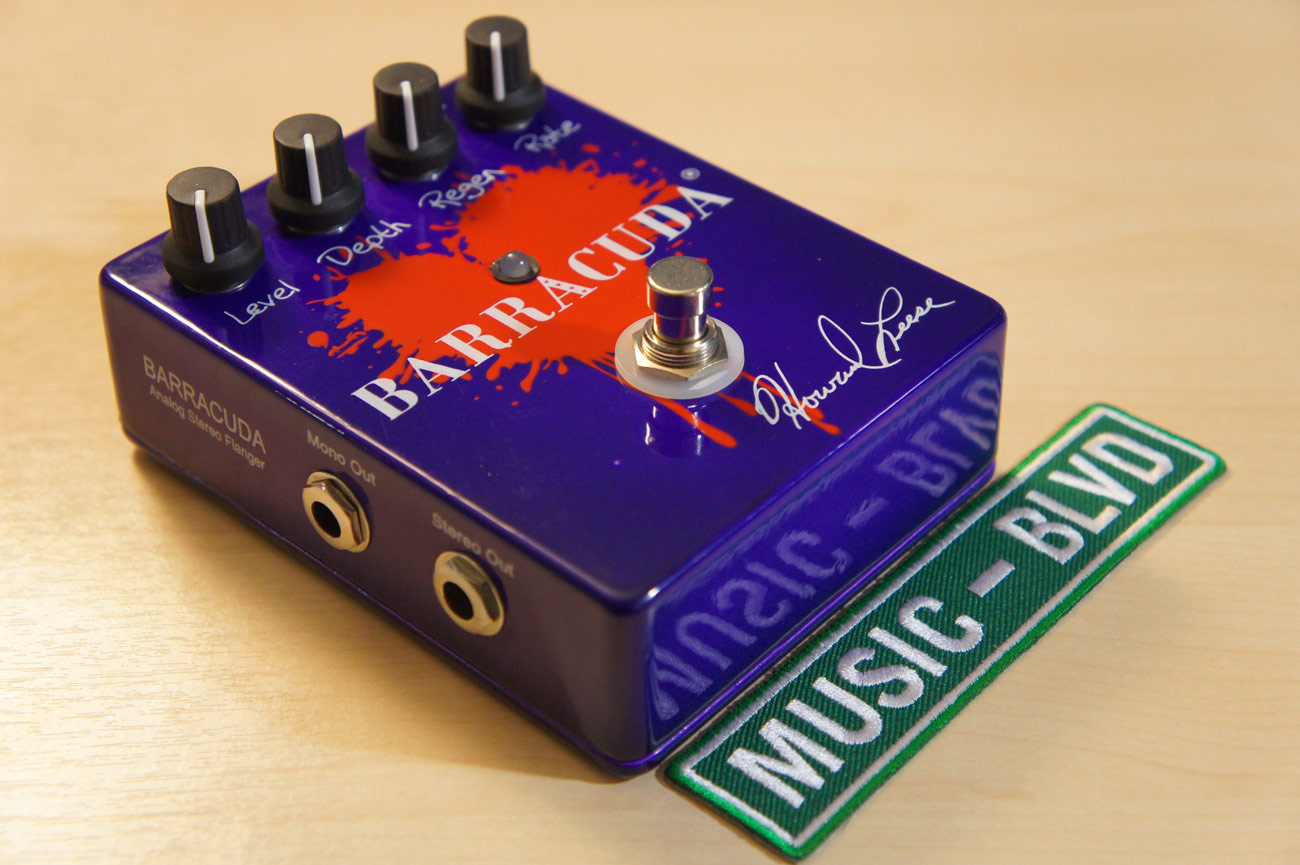

One of the most significant improvements is the stereo output. When used in mono mode, the top output jack provides the famous flanger sound you know and love. Inserting a plug into the bottom output jack splits the signal for stereo reproduction, creating a aural phenomenon that cannot be duplicated with a mono sound source.

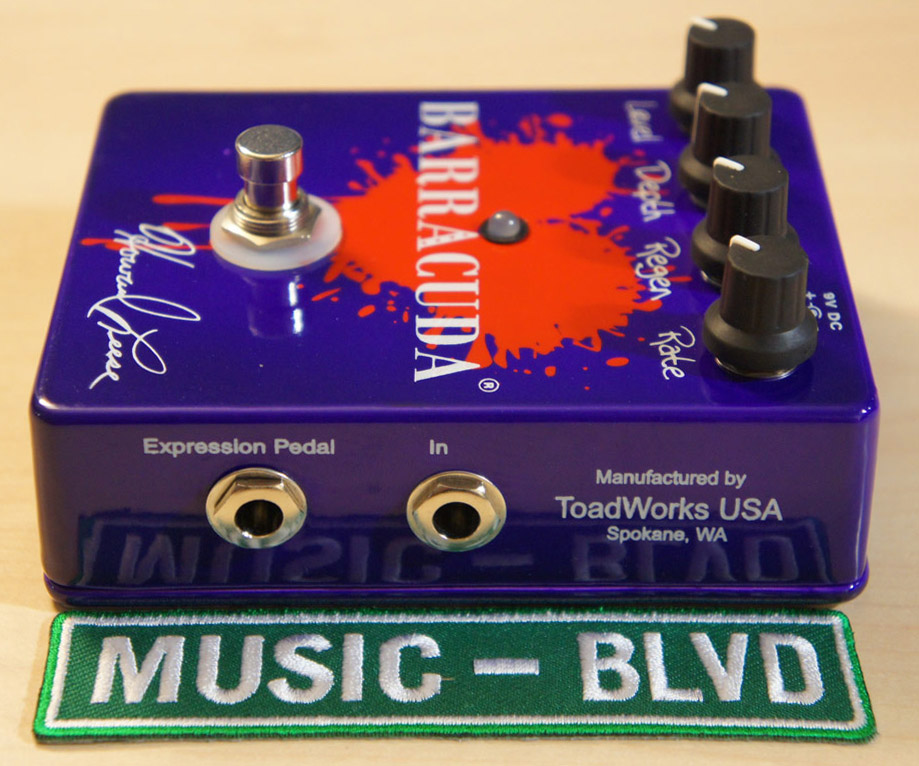

Barracuda is designed for use with an Expression Pedal - Connecting the Expression Pedal to the Exp. Pedal jack will disable the LFO, and the expression pedal becomes a manual sweep controller.

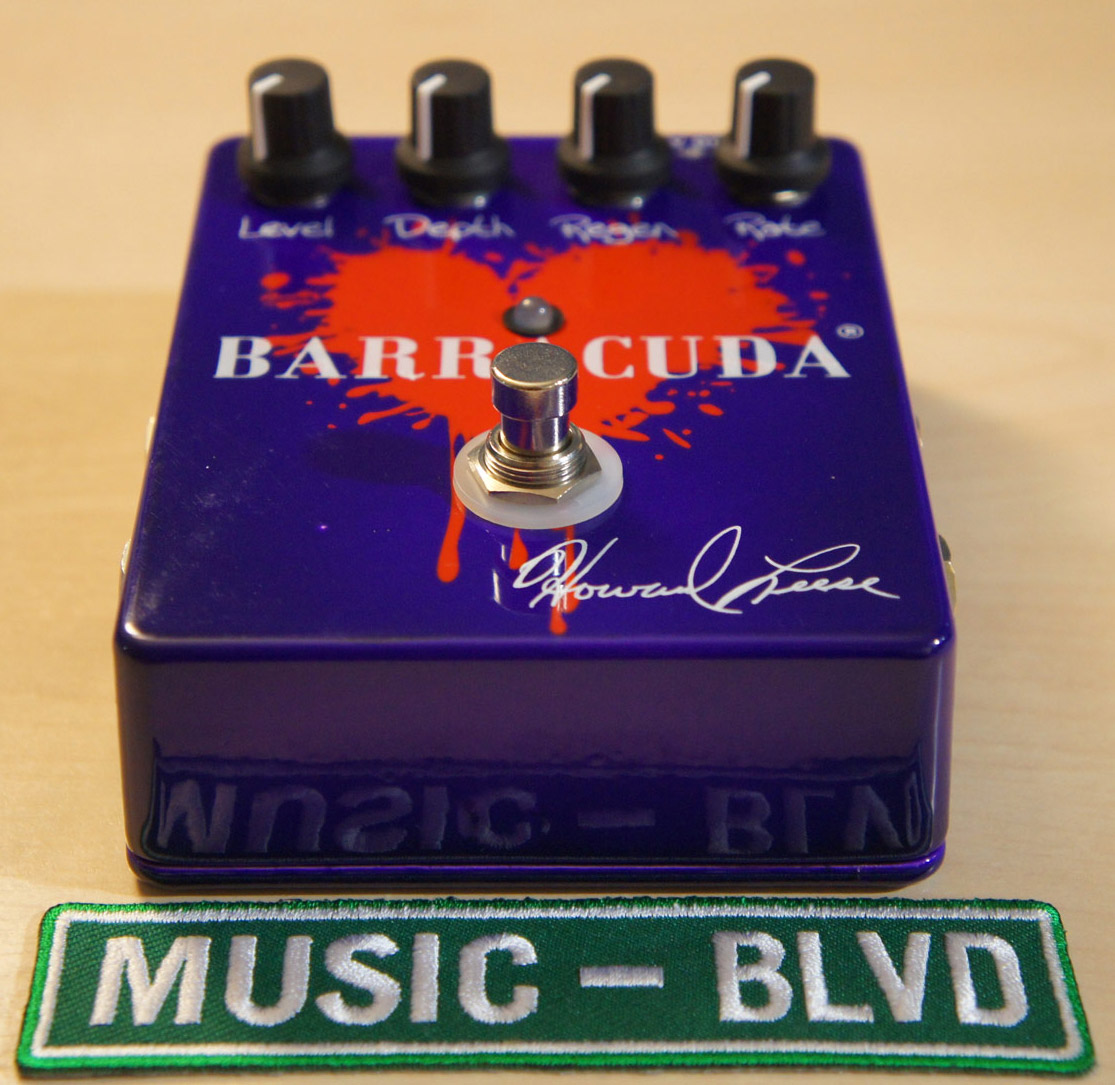

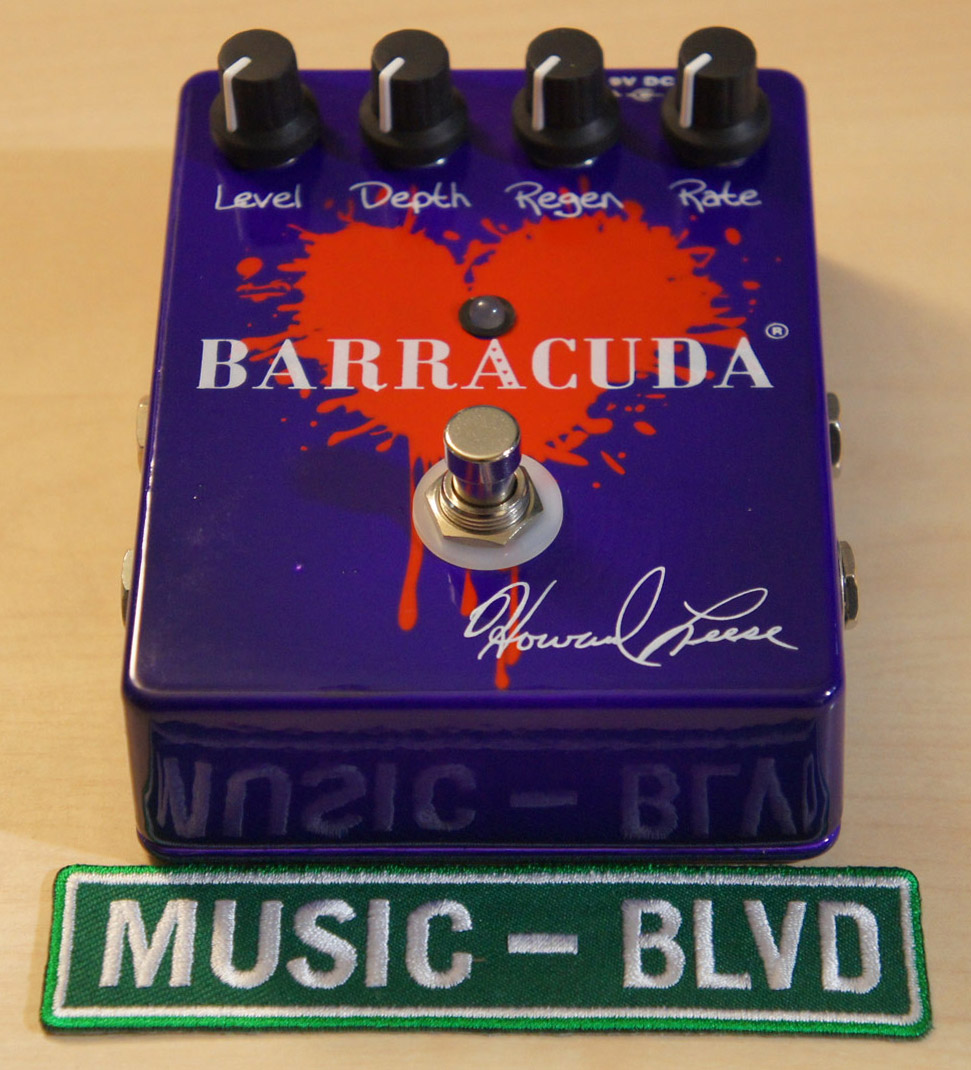

The switch turns the effect on and off, the Level knob controls the signal strength, the Depth knob controls the amount of effect present in the signal, the Regen knob controls the amount of signal regeneration, and the Rate knob increses/decreases the speed.

Barracuda features a true-bypass circuit, keeping your tone crystal clear when bypassed. Each pedal is carefully manufactured by hand, using only the finest components.

SPECIFICATIONS:
- Dimensions (h)4.6" x (w)3.6" x (d)2.5"
- Power Requirements 9 Volt DC
- Recommended AC Adaptor Boss PSA-120T
- Power Connector 2.1mm barrel connector
- Polarity Tip: Negative (-)
- Audio Signal Connector 1/4" phone plug
- Expression Pedal Line6 EX1 Expression Pedal
- Battery Powered: yes
- Current Draw: ~50mA


�
