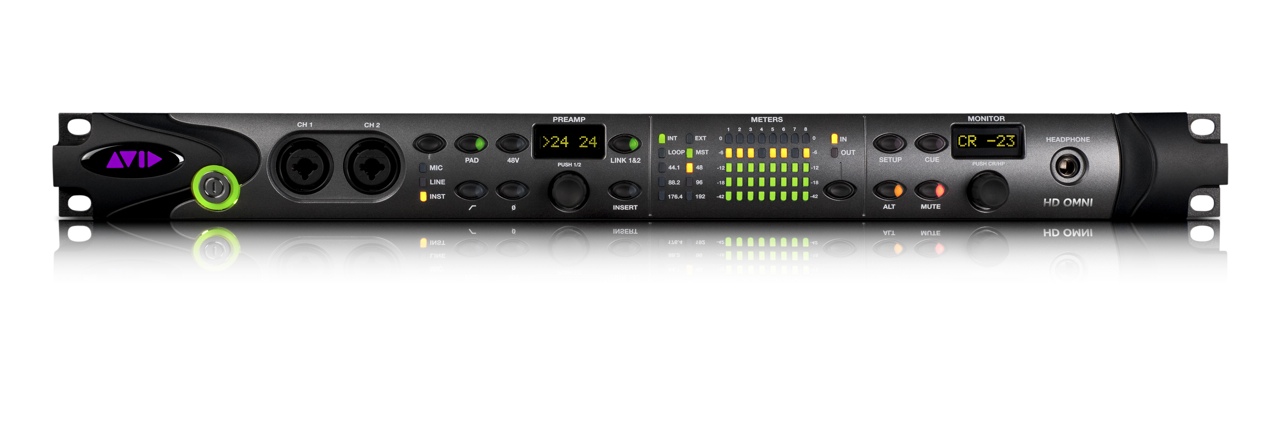

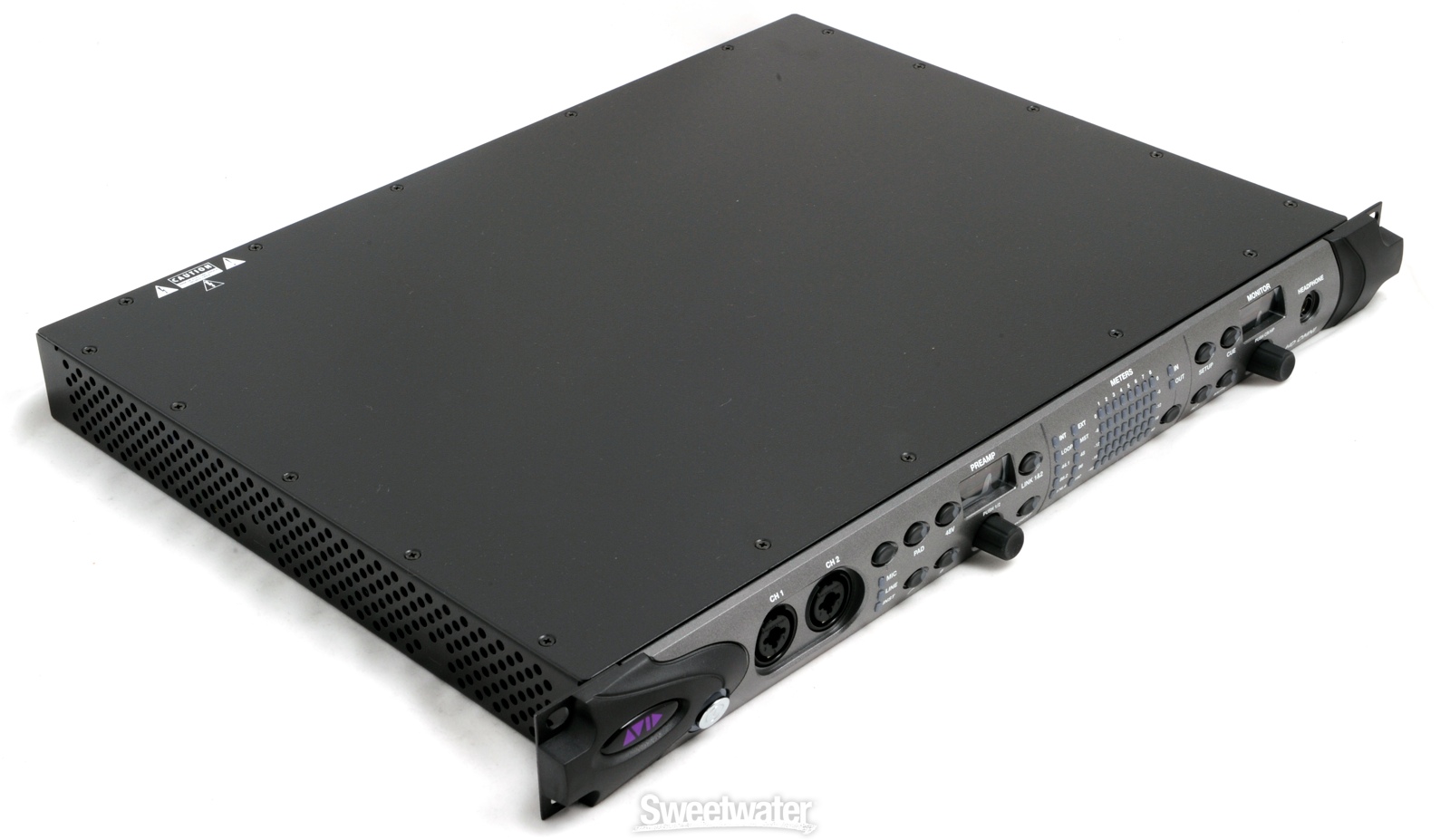

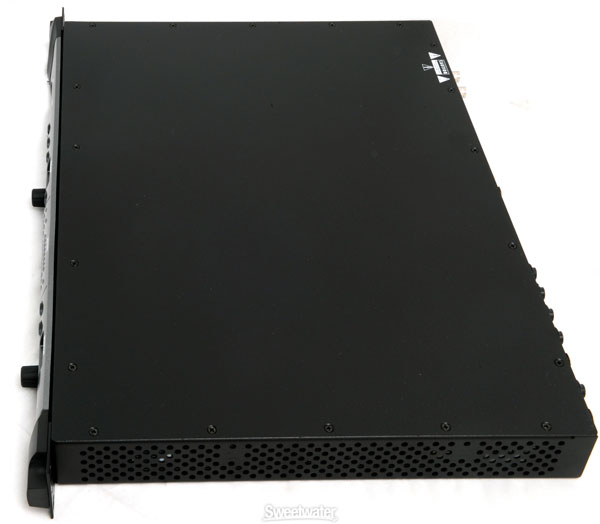

Avid HD OMNI

An All-in-one SolutionThe next generation of Pro Tools|HD is here! HD OMNI is your all-in-one Pro Tools|HD audio interface solution. Rocking a pair of mic pres paired with other analog and digital I/O, the HD OMNI gives you up to 8 x 8 audio paths to and from Pro Tools|HD, along with two extra channels of "Cue" output. Avid included the "Curv" analog soft-knee limiter, which allows for hotter tracking and as a safety net against transients. An integrated monitoring section and 14 x 26-channel mixer lets you monitor in up to 7.1 using the HD OMNI.

Avid HD OMNI Audio Interface Features at a Glance:

4-in/8-out project audio interface

Digitally controlled Mic/Line/DI preamps

Flexible analog and digital I/O

Same flagship converters as HD I/O

Persistent surround monitoring

Fold-down to any monitor format

14x26 channel mixer

New Curv analog soft knee limiter

Pristine audio clarity and ultra low latency through state-of-the-art A/D and D/A conversion

High-quality, low-noise analog I/O: 2 premium, digitally-controlled mic/DI preamps, 4 line inputs, 8 line outputs, with true analog gain

Versatile digital I/O, with sample rate conversion on all inputs: 8 channels of ADAT I/O (supports S/MUX II and IV), 2x8 channels of AES/EBU I/O, 2 channels of S/PDIF I/O

Route audio independently from Pro Tools with the persistent 14X26 pass-through mixer

Completely integrates with Pro Tools|HD for full routing, mixing, and monitoring control

Track hotter signals and smooth out sounds with Curv, a new built-in soft-knee limiter

Hear your mixes in however many channels you need, from stereo to 7.1 surround

Improve communication while tracking with dedicated cue path

Keep things in sync with dedicated Word Clock and Loop Sync I/O

Compact 1U rack-mountable chassis

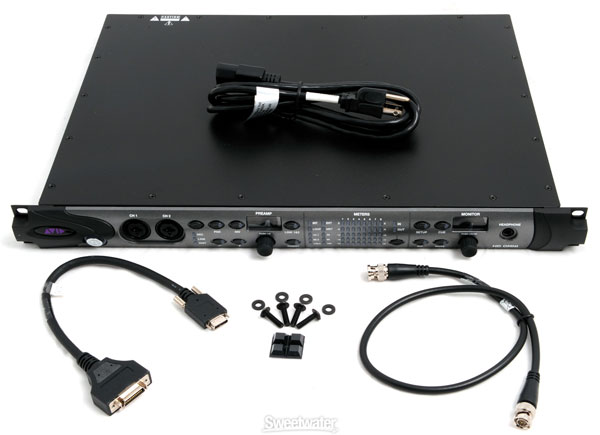

Connects to Pro Tools|HD through a DigiLink Mini connection (cable and adapter included)



A fantastic all-in-one solution for Pro Tools|HD with the Avid HD OMNI!











Specification
Detail


Computer Connection Type
PCI


Form Factor
Rackmount


Simultaneous I/O
4 x 8 Analog, 8 x 8 Digital


A/D Resolution
24-bit/192kHz


Built In DSP/FX
No


Number of Analog Inputs
10


Analog Input Types
4 x XLR (Mic), 4 x TRS (Line), 2 x TRS (Return)


Number of Analog Outputs
13


Analog Output Types
1 x DB25 (8 Ch.), 2 x TRS, 2 x TRS (Send), 1 x TRS (Headphone)


Number of Digital Inputs
14


Digital Input Types
1 x AES/EBU (XLR), 2 x S/PDIF (Coax, Optical), 1 x ADAT (Optical, 8 ch.)


Number of Digital Outputs
20


Digital Output Types
1 x DB25 (AES/EBU, 8 Ch.), 2 x S/PDIF (Coax, Optical), 1 x ADAT (Optical, 8 ch.)


Clock I/O

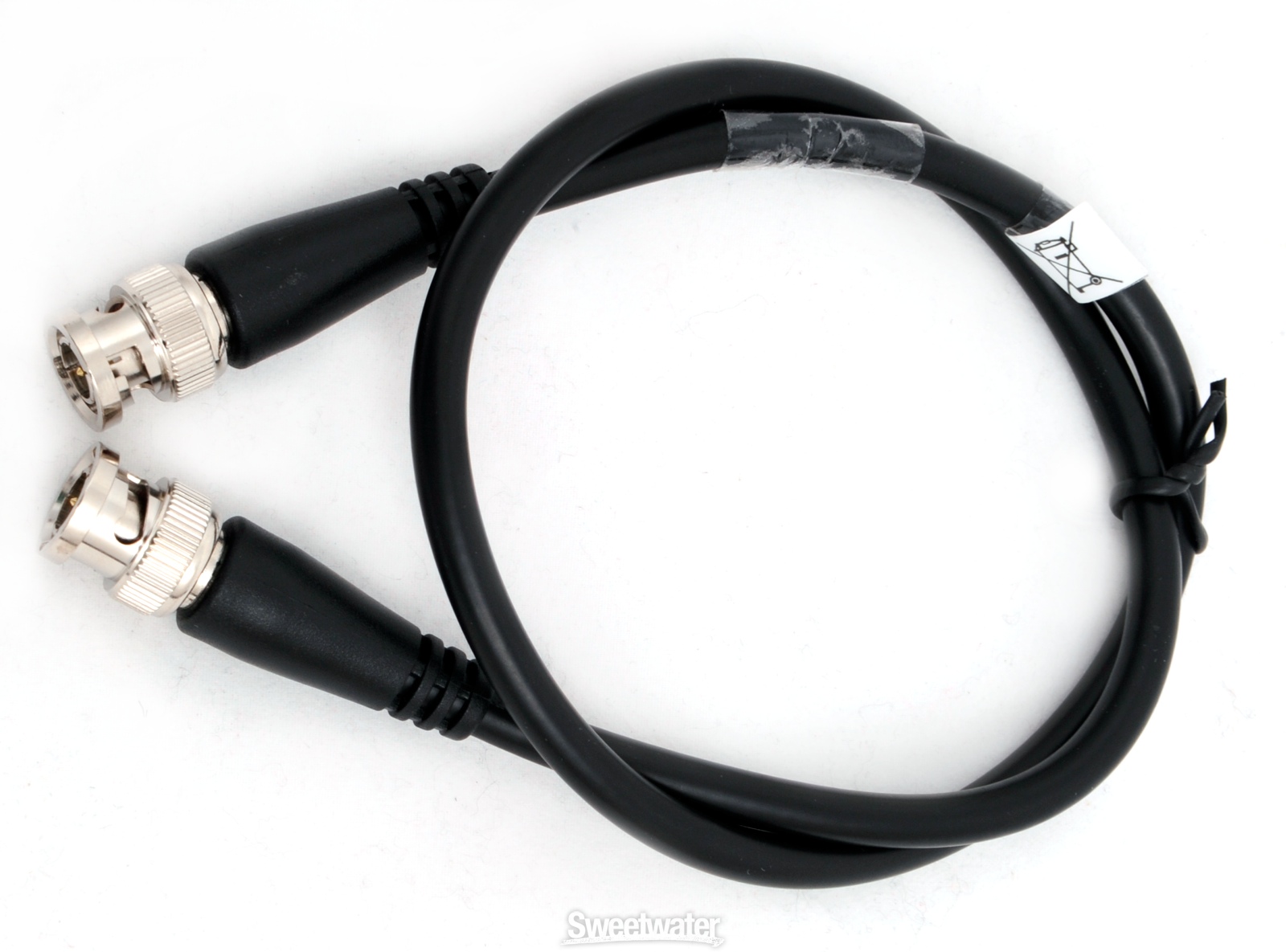

1 x Word Clock (In/Out on BNC), 1x Loop Sync (In/Out on BNC)


Number of Mic Preamps
2


Phantom Power
Yes


Bus Powered
No


Rack Units
1U
