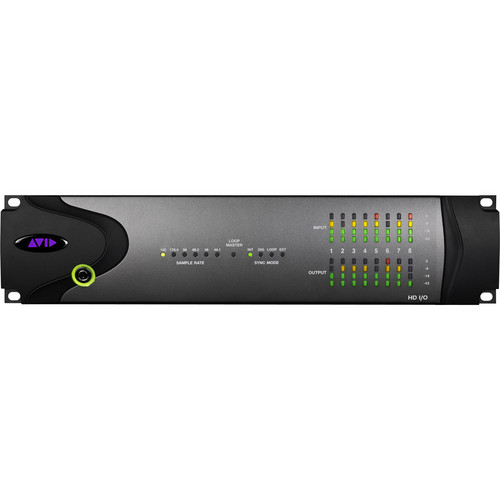

Avid HD I/O 8x8x8 - Pro Tools HD Series Audio Interface

A Premium Interface for Your Pro Tools|HD Rig!The next generation of Pro Tools|HD is here! The HD I/O from Avid picks up where the 192 I/O left off, offering improved fidelity and lower latency than its predecessor. Avid also endowed the HD I/O with a slick soft-knee analog limiter. This dynamics processor, named Curv, catches fast transients, letting you track hotter. No amount of processing power can muscle past poor A/D conversion or clipping. The HD I/O manages both tasks for you, and it handles them beautifully. This version of the HD I/O is equipped with eight channels of analog I/O and eight channels of digital I/O.

Avid HD I/O 8 x 8 x 8 Pro Tools|HD Audio Interface Features at a Glance:

High-performance AD/DA converters

Redesigned analog section with state-of-the-art filtering and design

Power supply improves noise performance and jitter

Lower latency

Updated digital card

192kHz AES/EBU and S/PDIF single-wire

ADAT S/MUX II and S/MUX IV (enclosure and expansion card)

"Curv" analog limiting circuitry on input

8 analog inputs (using DB-25)

8 analog outputs (using DB-25)

8 channels of AES/EBU I/O (supports 192kHz single-wire and dual-wire)

8 channels of TDIF I/O

8 channels of ADAT I/O (supports S/MUX II and IV)

Additional digital I/O: 2 channels of AES/EBU I/O (supports 192kHz single-wire), 2 channels of S/PDIF I/O, 8 channels of ADAT I/O (supports S/MUX II and IV)

One empty bay for I/O expansion



The next generation of Pro Tools|HD is here with Avid's HD I/O!











Specification
Detail


Computer Connection Type
PCI


Form Factor
Rackmount


Simultaneous I/O
16 x 16


A/D Resolution
24-bit/192kHz


Built In DSP/FX
No


Number of Analog Inputs
8 Channels


Analog Input Types
1 x DB25


Number of Analog Outputs
8 Channels


Analog Output Types
1 x DB25


Number of Digital Inputs
36 Channels


Digital Input Types
8 x AES/EBU (DB25), 8 x TDIF (DB25), 8 x ADAT (Optical), 1 x AES/EBU (XLR), 1 x S/PDIF (Coax), 8 X ADAT (Optical)


Number of Digital Outputs
36 Channels


Digital Output Types
8 x AES/EBU (DB25), 8 x TDIF (DB25), 8 x ADAT (Optical), 1 x AES/EBU (XLR), 1 x S/PDIF (Coax), 8 X ADAT (Optical)


Clock I/O
1 x Word Clock (In/Out on BNC), 1 x Loop Sync (In/Out on BNC)


Number of Mic Preamps
0


Phantom Power
No


Bus Powered
No


Rack Units
2U
