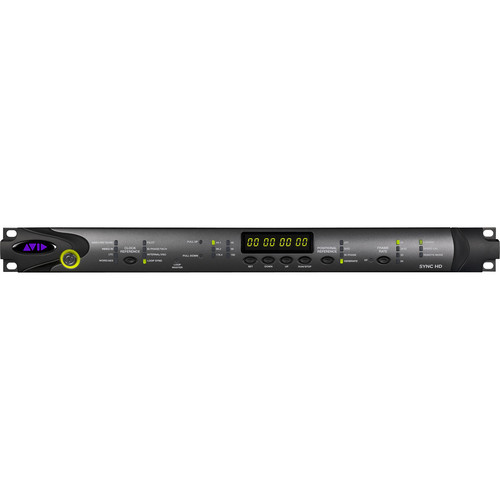

Avid SYNC HD - Master Clock for Pro Tools HD Systems

The SYNC HD from Avid is a master clock that can keep even the largest Pro Tools HD and audio-video productions in total sync. The unit attains near sample-accurate lock to serial Timecode (through RS-422), LTC, or bi-phase/tach signals. It incorporates a high-fidelity, low-jitter master Wordclock that supports operations up to 192kHz, as well as standard pull-up/pull-down rates for film and video applications.

SYNC HD also features AES/EBU clock I/O, SD and HD video reference in/thru, video program in/out with Timecode window inserter, and a host of other features, making it an indispensible addition to any Pro Tools HD system utilized by professionals in commercial music and post-production facilities.


High-fidelity, low-jitter master clock

Near sample-accurate lock to Timecode or bi-phase signals Wordclock I/O up to 192kHz capable Supports all major industry-standard clock sources and Timecode formats Supports SD and HD video reference input (tri-level sync) up to 1080p/60fps Supports standard pull-up/pull-down rates for film/video Video input with Timecode window inserter Timecode character generator Fader start, provided through GPI output, for remote transport control from select Pro Tools fader movement Standalone remote control through SYNC Setup software utility (Windows only) Field-updatable firmware SYNC I/O Emulation for legacy software support
Supported Positional Reference Sources

LTC
VITC
Serial Time Code
Bi-phase/Tach


Supported Clock Reference Sources

Loop Sync
Video Reference
SD reference rates
HD reference rates (SYNC HD only)
Composite Video Input
Word Clock
AES/EBU (DARS per AES-11 standard)
Pilot Tone
Internal Crystal
Bi-phase/Tach
LTC


Output and Generation

Loop Sync
Digidesign Super Clock (256x sample clock)
Word Clock (1x sample clock)
AES/EBU null clock (AES "digital black")
VITC (if a video input is present)
LTC
MIDI Time Code (MTC)
Dual 9-pin Sony P-2 protocol ports (only one can be active at a time), for limited serial deck control with MachineControl software option for Pro Tools






Connectors
1 x 25-pin D-Sub Bi-Phase/Tach/GPI/Pilot
2 x BNC Video Reference
1 x 8-pin Mini DIN female Host Serial
2 x BNC Video I/O
1 x 5-pin DIN MTC Out
2 x XLR LTC I/O
2 x XLR AES I/O 2 x BNC Wordclock I/O 2 x 9-pin I/O 2 x BNC Loop Sync I/O


Power Requirements
85~264VAC, 47 to 63Hz, auto switching


Dimensions (WxDxH)
19 x 10.5 x 1.75" (483 x 267 x 45mm)


Weight
5.0 lb (2.3kg)
