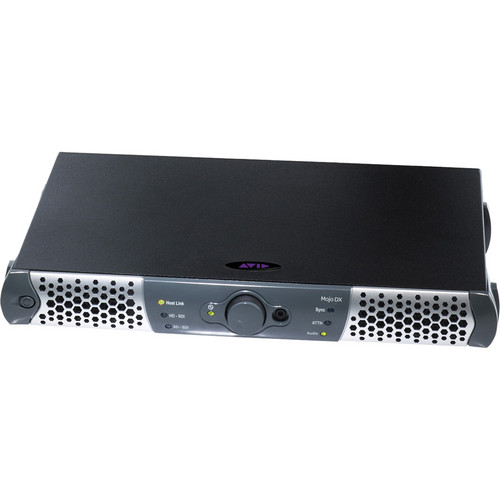

Avid Mojo DX I/O & Monitoring Hardware

Mojo DX I/O & Monitoring Hardware from Avid is an input/output and monitoring solution that enjoys tight integration with your host computer's CPU and GPU, thanks to the Avid Intelligent Architecture that's featured in Media Composer, Symphony, and NewsCutter software programs. The integration of Mojo DX with your computer hardware creates a high-bandwidth, high-performance effects engine that optimizes CPU and GPU performance for HD video.


Mojo DX connects to your computer via PCIe. The device offers HD/SD-SDI input and output, as well as analog & digital audio I/O and an HDMI output port for monitoring. It features an RS-422 input for machine control, word clock output, and a BNC input for either blackburst or tri-level reference sync, helping you integrate the device with the facility's broader video system.


The I/O hardware features onboard support for thin raster, which means Mojo DX shoulders the burden of stretching anamorphic footage (e.g., 1440 x 1080 frames) so your host computer's resources are free for other tasks.











Host Connection
Computer: PCIe
Serial machine control: RS-422 (9-pin connector)


Video I/O
1x BNC for HD/SD-SDI input
1x BNC for HD/SD-SDI output
1x HDMI output for monitoring (all rates supported up to 1920 x 1080 HD)


Audio I/O
8x channels of embedded SD-SDI audio I/O
16x channels of embedded HD-SDI audio I/O (HD & SD-SDI connectors are shared)
8x channels of optical ADAT I/O
2x channels of optical S/PDIF I/O (connectors for ADAT and S/PDIF are shared)
2x 1/4" TRS connectors for stereo analog audio input
2x 1/4" TRS connectors for stereo analog audio output
1x 3.5mm TRS connector for stereo headphone output


Sync
1x reference sync (blackburst or HD trilevel sync input, combined connector)
1x word clock (output only)


Support
Onboard support for thin raster


System Requirements
Avid Media Composer, NewsCutter, or Symphony software
Avid-qualified Windows- or Mac-based computer with a PCIe x4 card slot, or Avid-qualified laptop* with an ExpressCard slot and the optional Avid ExpressCard Hardware Interface Board

*DNxHD capture with Mojo DX is only supported with Windows-based Intel Core i7 laptops (quad-core with hyper-threading).
