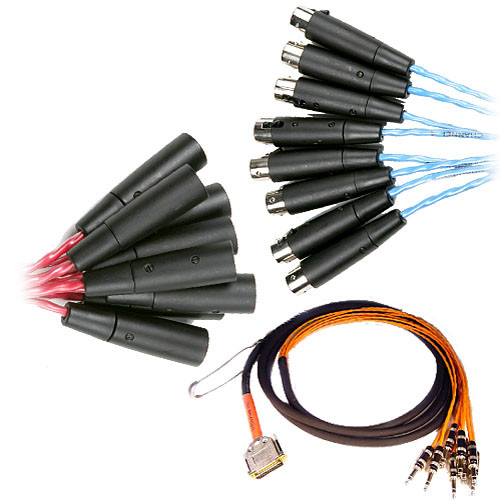

Avid C24 TRS/LE Cable Kit

The C 24 TRS/LE Cable Kit from Avid includes all the cables needed to connect a C24 control surface to either a Pro Tools HD system with a HD I/O 8x8x8 audio interface, or a Pro Tools LE system.


DB25-XLR Male Cable Includes one 12-foot cable to connect:

5.1 Control Room Out (monitor section)



DB25-XLR Female Cable Includes two 12-foot cables to connect:

Microphone Inputs 1-8 (preamps)
Microphone Inputs 9-16 (preamps)

DB25-TRS Cable Includes ten 12-foot cables to connect:

Pro Tools Input (monitor section)
Surround Input (monitor section)
Line Outputs 1-8 (mic/line/DI preamps)
Line Outputs 9-16 (mic/line/DI preamps)
Submixer Inputs 1-4 (line submixer)
Submixer Inputs 5-8 (line submixer)
Line/DI Inputs 1-8
Line/DI Inputs 9-16



Avid C24 TRS/LE Cable Kit


13 Cables
One (1) Year Warranty
