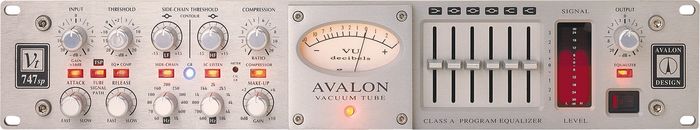

Avalon VT-747SP Stereo Compressor EQ

Vacuum-tube warmth and presence with solid-state flexibility.

The Avalon VT-747SP Stereo Compressor"EQ lets you choose between tube tone and the classic Class A discrete transistor sound. Ideal for high-performance DAW input signal conditioning, stereo bus compression-EQ, stereo keyboards, and analog mastering applications. This Avalon Compressor combines a stereo tube-discrete Class A opto-compressor with musical 6-band program EQ, L-R output level and gain reduction metering, and internal regulated power supplies. All in just 2 rackspaces.

Features

Stereo Class A 6-band discrete passive program EQ
TSP twin signal path, vacuum tube bypass
Low noise -92dB
Fully balanced Class A input and DC coupled outputs
Stereo dynamic 60dB high resolution output meters
High-quality analog VU meter for gain reduction
High headroom +36dB input before overload
Spectral side-chain monitor for pre listen
EQ pre-post selection for opto-compressor
Sealed silver relays for all signal routing
Internal discrete regulated power supplies
Military spec vacuum tubes for long life and low noise


Our deal makes it easy to step up to the best. Order today.


747SP Stereo Compressor EQ Specifications:


Circuit topology: 3 dual triode vacuum tubes (Sovtek 6922), high-voltage discrete Class A mode
Input gain range: Balanced, Class A, 20kOhms, -20dB to +16dB with high gain switch
Maximum input level: +36dB balanced XLR pin 2 hot
Maximum output level: +30dB balanced 600 ohms, DC coupled, discrete Class A
Output type: XLR connector, output trim gain -45dB to +6dB
Noise: 20kHz unweighted -92dB
Distortion: THD, IMD: 0.5%
Frequency response: -3dB 1Hz-200kHz
Gain reduction meter: High quality, illuminated gain reduction meter 0dB to -20dB range
Output meter: Twin 20-segment LED VU meters with -27dB to +30dB range
Compressor type: Optical passive attenuator
Make-up gain: Variable 0dB to +10dB stereo tracking
Threshold - Ratio: Threshold variable -30dB to +20dB, ratio-compression variable 1:1 to 20:1
Attack - Release: Attack variable 2mS to 200mS, release variable 100mS to 5 seconds
Sidechain spectral contour: Variable threshold -15dB to +15dB, frequency 70Hz to 9kHz twin ranges
Equalizer type: Discrete Class A, passive design optimized for full range program material
Frequency bands (6): Variable amplitude LF +/-24dB 15Hz shelf response
Variable amplitude MF1 ±8dB 125Hz selected Q response
Variable amplitude MF2 ±4dB 500Hz selected Q response
Variable amplitude MF3 ±4dB 2kHz selected Q response
Variable amplitude MF4 ±10dB 5kHz shelf response
Variable amplitude HF ±20dB 32kHz shelf response
AC power: Internal toroidal 100V to 240V, 50-60Hz selectable, 70 watts maximum
Dimensions: 19" x 12" x 3-1/2" (482 x 305 x 89mm)
Weight: 22 lbs. (10kg)
Weight-packed: 26 lbs. (11.8kg)
