Audio-Technica System 10 2.4GHz Digital Wireless Headset System w/ PRO-8HECW

Audio-Technica


Complete headset wireless system.

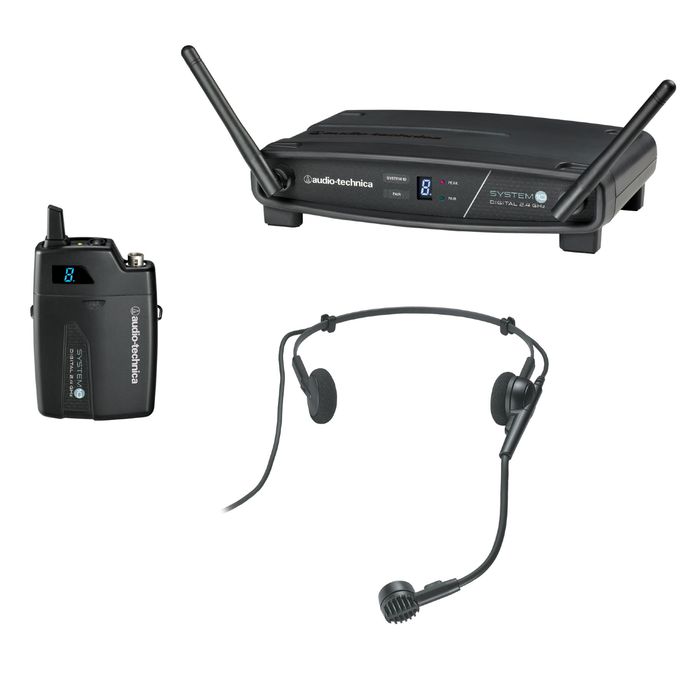

The Audio Technica ATW-1101/H package includes a beltpack transmitter and a receiver that is applicable to headset or lavalier wireless users, as well as guitarists. It comes with the ATW-R1100 receiver and ATW-T1001 UniPak transmitter with PRO 8HEcW headworn microphone.

Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

Consumer Alert:Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.





Features

Digital 24-bit/48kHz wireless operation for ultimate sound quality and dependable performance
2.4 GHz range – completely free from TV interference
Three levels of diversity assurance: frequency, time, & space
Automatic frequency selection for seamless, interference-free operation
Extremely easy operation with instantaneous channel selection, sync, and set-up
State-of-the-art digital receiver for reliable performance
Balanced XLR and unbalanced 1/4” output jacks with level control




Order today and free your hands for a more expressive performance or a more effective presentation.




Overall system specifications
Operating Frequencies: 2.4 GHz ISM band
Dynamic Range: >109 dB (A-weighted), typical
Total Harmonic Distortion: <0.05% typical
Operating Range: 30 m (100') typical
Open range environment with no interfering signals
Operating Temperature Range: 0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures
Frequency Response: 20 Hz to 20 kHz
Depending on microphone type
Receiver specifications
Receiving System: Diversity (frequency/time/space)
Maximum Output Level: XLR, balanced: 0 dBV
1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Dimensions: 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
Net Weight: 290 grams (10.2 oz)
Accessory Included: Power supply
Body-pack transmitter specifications
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Input Connections Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries Two 1.5V AA
not included
Battery Life >7 hours (alkaline)
Depending on battery type and use pattern
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight 100 grams (3.5 oz) without batteries
