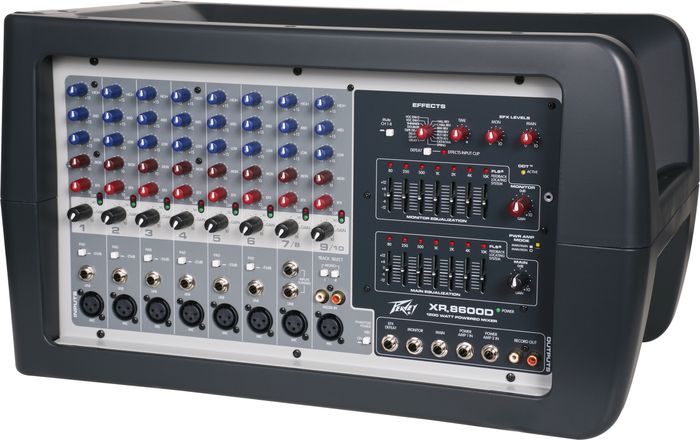

Peavey XR 8600D Class D Powered Mixer

Just add speakers and you've got a complete P.A. system.




The Peavey XR 8600D powered mixer includes many of the latest technological developments from Peavey engineering. Incorporating a pair of Class D 600W amplifiers, dual 7-band EQ, digital effects, FLS (Peavey's award-winning Feedback Locating System), DDT speaker protection, and a host of other features, the compact XR 8600D powered Peavey mixer is perfect for many applications.



Features

8 improved, low-noise, mic preamps
10 line inputs
3-band EQ on each channel
Monitor send on each channel
25dB pad: channels 1-6
Dual main or main/monitor power amp mode switch
Dedicated 7-band EQ for main/monitors with FLS
DSP-based effects
16 presets with parameter control
Dual 600W per channel internal power amplifiers
DDT speaker protection with activity LED
Mute switch for input channels 1-8
Signal/clipping indicator on each channel
48V phantom power
Rugged plastic Peavey mixer case



A powered mixer with excellent features gives you a cleaner, more powerful performance for a modest price. Order now.






Power section: 1200 SC Module with DDT
Rated Power: 600W program into 4Ω, both channels driven / 500W RMS into 4Ω, both channels driven 475W program into 8Ω, both channels driven / 360W RMS into 8Ω, both channels driven
Frequency response: 20Hz-20kHz +0dB/-1dB @ rated Power
Total Harmonic Distortion (THD): <0.01% @ rated output @ 1kHz
DDT dynamic range: Greater than 26dB
DDT maximum distortion: Below 0.5% THD for 6dB overload, below 1% THD for 20dB overload
Hum and noise: 97dB below rated Power level (500W)
Damping factor: Greater than 100 @ 1kHz, 4Ω
Input Sensitivity: 1.5V RMS for 500W @ 4Ω
Input Impedance: 8.25kΩ
Power Requirements: DOM: 120VAC 60Hz 500W nominal
EXP: 220-230VAC/240VAC 50/60Hz, 500W nominal
Dimensions (WxHxD): 19.0" x 10.75" x 11"
Weight: 41.7lb.
