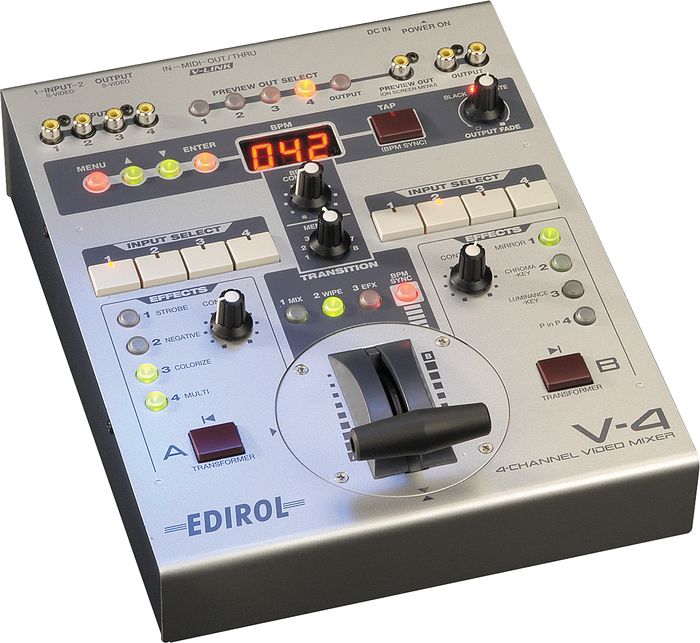

Roland V-4 4-Channel Video Mixer

A powerful tool that opens up a whole world of creative video possibilities.




The V-4 is a 4-channel video mixer made for portable or fixed installation use. It is ideal for use in nightclubs, places of worship, theatres, and other live performances. The V-4 video mixer also has MIDI in/out/through, for realtime or sequenced control of video sources with effects and transitions.

Video mixer/switcher with 4-channel input

The V-4 is equipped with 4 composite (RCA) inputs plus 2 S-video (Y/C) inputs. It offers scene transition of the 4 video sources with dissolve, wipes (about 200 variations), and switching. The V-4 outputs the same video source to all 3 jacks (Composite x 2, S-video x 1), for simultaneous monitoring and displaying, without resorting to external distribution boxes. The V-4 comes with over 200 transition effects of all types, including hard edge, luminance, multi-border, sliding, and soft edge types.

Professional video quality

The input video sources are processed completely in the digital domain, and give professional video quality (13.5MHz, 8-bit, 4:2:2, DV quality). Ideal for use on large screens, and because the V-4 internal processing is digital there is no quality loss.

2-channel TBC/frame synchronizer

The input sources go through independent 2-channel TBC (Time Base Correction) circuits to correct the time code, independent 2-channel frame synchronizers are also applied to the 2 sources at this stage. These processes enable smooth transitions and dissolves, and ensuring stable images all the time.

Independent 2-channel digital effects

V-4 features independent 2-channel video effects that include a rich selection of digital effects (refer to spec sheet). The V-4 also features composition effects such as picture-in-picture, chroma-key, and luminance-key. The effects are recallable by a single button press.

Professional T-bar video fader

Professional-use T-Bar cross fades for quick and intuitive operation. A V-4 innovation is that you chose to attach the fade however you like, either, vertically as standard for video mixer, or horizontally as a DJ mixer fader. The fader resolution has over 100 steps and offers extremely smooth transitions. Its metal body as well as its fader is strong and durable to be used in your active performance.

Easy operation

V-4 is designed for its functions and operations to be clear from the front panel. Because it is simple to use its easy-to-use operation will enhance your realtime performance. Most of the V-4 functions can be selected and controlled without resorting to the manual.

Preview function and on-screen menu

The preview function is controlled by the source selection button, and enables the user to monitor each of the input sources 1-4 or the output source before transition, to a single preview monitor, no more multiple preview monitors! You can control V-4's major functions (Ex. effect selection, MIDI input setting, etc.) from the dedicated preview screen using the convenient on-screen menu. This is separate from the output to the main outs, so you can view it anytime you want.

Convenient user memory function

V-4's User memory function allows you to memorize and conveniently recall the panel settings such as effect assignment to each button. The memory is saved even while the power is off, so you can store the frequently-used setting. Maximum 8 configurations.

A/V connection sync with MIDI

The V-4 features video transition/effects that can be synchronized with MIDI. The BPM (beat per minute) of transition/effects can be made to follow the beat of a music track by hitting the tap button (TAP function). The functions of V-4 can also be controlled via MIDI equipment such as a MIDI keyboard controller.



Features

Video mixer/switcher with 4-channel input
Independent 2-channel TBC/frame synchronizer
Independent 2-channel digital effects
Professional-quality T-bar video fader
Easy operation
Beat synchronization between Audio and Video
Over 200 transition effects



Make your video come alive with professional effects and control. Order today.






Format processing: ITU601, NTSC or PAL format
Sampling: 13.5MHz, 4:2:2 (Y:B-Y:R-Y)/8-bit
Frame Synchronizer: Individual 2-channel (Individual 2-channel TBC (Time Base Correction)
Transition: Dissolve, White fade, Black fade, Wipe (about 200 patterns)
Composite effects: Chroma-key, Luminance-key
Individual 2-channel effects: Colorize, Strobe, Picture-in-Picture, Mirror, Multi-screen, Negative, Still (Field freeze or Frame freeze), Solarise, Color filter

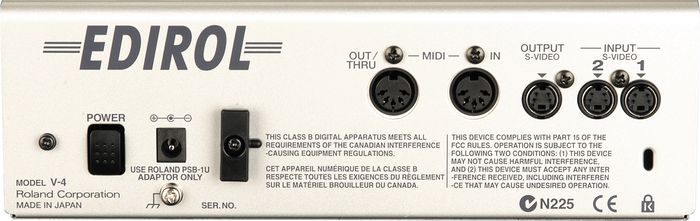

Inputs: 2-channel S-Video, 4-channel RCA composite
Video output: one-channel S-Video, 2-channel RCA composite
Preview out: one-channel RCA
MIDI: MIDI IN x 1, MIDI OUT x 1 (control through MIDI equipment)
TAP: BPM setting
AC Adaptor: DC 9V (Model : PSB-1U, 117V/230V/240V)
Dimensions: 225(W) x 75(H) x 290(D) mm, 8-7/8(W) x 11-7/16 (H) x 3(D) inches
Weight: 2.2 kg/4 lbs 14 oz
Accessories: AC Adaptor
