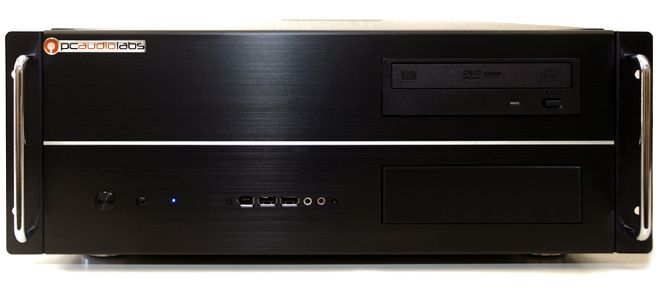

PC AUDIO LABS Rok Box MC 64 Desktop/4U Rackmount PC

PC AUDIO LABS


High-performance PC streamlined for audio production, with Intel Core i7 processor and 16GB memory.




The Rok Box MC 64 from PC Audio Labs is part of an extremely fast and efficient line of audio computers aimed strictly at the task of high-performance audio production. Designed to fit your unique workflow, the Rok Box series is made to accommodate many types of music software and music hardware. The entire Rok Box MC line feature powerful Intel processors that will change the way you make music by providing the power for more plugins and lower latency. Your music just got better with Intel. Fine-tuning of the operating system, hardware and system setup give Rok Box MC as much as an 80% improvement in performance over off-the-shelf PCs, while dedicated system and audio hard drives keep your files streamlined and guarantee smooth, consistent results everyday. The Rok Box MC 64 model comes with the option of installing the PC in a 4U Rackspace.

Ground breaking Intel Core i7 performance
Intel’s next generation Core i7 processor sets the benchmark standard for audio processing, power and performance in a single processor design.

Integrated Memory Controller
New for the Core i7 Sandy Bridge E processor is a built in memory controller. Using four channels of DDR3 memory connected directly to the processor helps to lower latency, speed up rendering, reduce sample library load times, and improve overall system responsiveness.

Fast, Efficient, Smart Cache
Cache is a smaller, faster memory inside the processor and it stores the most frequently used memory tasks. Rather than have a separate cache per processor, Smart Cache dynamically shares 100% of the total available cache with each processor to improve overall performance.

Quick Path Interconnect (QPI)
QPI is a very efficient point-to-point, bi-directional connection between the processor and the X79 chipset, I/O hub, the hard drives, USB, FireWire, network, and other devices and peripherals connected to the computer. The Rok Box MC 64 has a QPI of up to 4.8GT/s.

Windows 7 64-bit gives you all-access to more memory
Windows 7 64-bit opens the door to using more than 4GB of system memory. Load up all the sounds you want and then add some more, just because you can.

Your 64-bit instruments will thank you
Virtual Instruments that use a file-based sound library work by loading the beginning of a sound into system memory. Complex sound libraries are capable of loading up to 300+ voices into memory. With 16GB, Rok Box MC 64 ensures that playback happens smoothly from the first note all the way up until the final fade out.

Triple Display Graphics
See more of your projects and stay organized! Triple-head graphics cards allow you to hook up three screens and organize your DAW windows any way you please.

ATI Radeon HD6750
The advanced power of the ATI Radeon HD 6750 graphics card with a whopping 1GB of video memory make audio editing a breeze on multiple displays. Supports DVI-D (DVI Dual-Link) for 2560x1600 screen resolution.

More Drives, More Songs
Smooth playback is what Rok Box MC 64 is all about. Rok Box MC 64 comes with three dedicated hard drives to keep your files streamlined and guarantee consistent results everyday.

500GB System Hard Drive
Windows 7 is installed to this hard drive. All software titles should be installed to this hard drive as well.

1TB Audio Hard Drive
Your music projects and all recorded audio files should be saved to this hard drive for best playback and recording results.

1TB Sample Library Hard Drive
Organize and store your sample libraries on this hard drive for efficient sample loading and maximum voice polyphony.

Full-length PCIe and PCI cards
A case design with room for full-length expansion cards like Pro Tools HD gives you the choice to use the tools you need to make music. Enough wiggle room for the most demanding audio and DSP expansion cards. Whether it’s a Pro Tools HD system or a TC Powercore card, Rok Box MC 64 has what you need to get started and even more room to grow.

Whisper Quiet Operation
The special blend of cooling fans and power supply work in harmony to create a quiet and stable audio computer. So quiet, in fact, that you might not even notice it's in the same room.

The award winning Quiet Power Supply has the ability to consistently deliver power in a way that is both very quiet and very efficient. The extremely quiet chassis fan design keeps things cool on the inside while the super silent processor fan and heatsink, designed to match the Intel Core i7 processor's thermal characteristics, ensures the best possible audio performance all year round.

Safe and Sound
Real world testing scenarios that go beyond the benchmarks make Rok Box MC 64 the ultimate off-the-shelf solution for composing, recording and live production. The native CPU power of the Intel Core i7 processor lets you load more instrument tracks than ever before without the need to freeze tracks. Record multiple takes with confidence, overdub vocals to create harmonies, layer rhythm guitars for a full sound, and score a film. Do it all with Rok Box MC 64.

Loops and Sample Libraries
A good amount of RAM and storage make a solid foundation for working with sample libraries, adding a string section, or writing an instrumental piece.



Features

Super-fast 3.20GHz Intel Core i7-3930K processor
High-performance 16GB DDR3-1333 Dual Channel Memory
Triple display graphics card with 2560x1600 max resolution
Three dedicated hard drives guarantee consistent results everyday
Includes Windows 7 Pro 64-bit operating system
8 USB 2.0, 4 USB 3.0, and 5 Firewire 400 ports for all if your devices
Pioneer 24x CD/DVD dual-layer burner optical drive




Time to upgrade the brains of your studio? Then choose pure performance.




PROCESSOR
3.20GHz Intel Core i7-3930K
6 processing cores
12 processing threads
5GT/s DMI speed
12MB Smart Cache
MEMORY
16GB DDR3-1333 Dual Channel (4 x 4GB)
8 memory slots / 4 used
GRAPHICS
Triple Display Graphics Card (HD6750)
Graphics Chip Powered by ATI Radeon HD 6750
Video Memory: 1GB GDDR5
Max Resolution: 2560 x 1600
Triple Head Display: DVI+DVI+HDMI+DisplayPort
*Occupies Two Expansion Slots
HARD DRIVE STORAGE
Primary: 500GB SATA2 - 16MB Buffer Size, 7200rpm, 3Gb/s
Audio Files: 1TB SATA2 - 32MB Buffer Size, 7200rpm, 3Gb/s
Sample Library: 1TB SATA2 - 32MB Buffer Size, 7200rpm, 3Gb/s
OPERATING SYSTEM
Windows 7 Pro 64-bit
Includes a genuine Microsoft installation disc
Includes a PCAL System Image Restore DVD
OPTICAL DRIVE
Pioneer 24x CD/DVD Dual Layer Burner
Includes Nero Essentials for CD/DVD burning
CONNECTIONS
8 USB 2.0 - 2 front, 6 rear ports
4 USB 3.0 - 4 rear ports
5 FireWire 400 (6 pin) - 1 front port, 4 rear ports
2 eSATA ports (rear)
1 Gigabit Network port
2 Keyboard, Mouse PS/2 port
POWER SUPPLY
750 Watts
80 Plus Certified Efficiency
EXPANSION SLOTS
2 PCIe x16, 3 PCIe x1, 1 PCI
Graphics card occupies one PCIe x16 slot
DIMENSIONS
Height: 6.5” (7" with feet)
Width: 19” (16.5” without rack ears)
Depth: 18.5”


*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price
