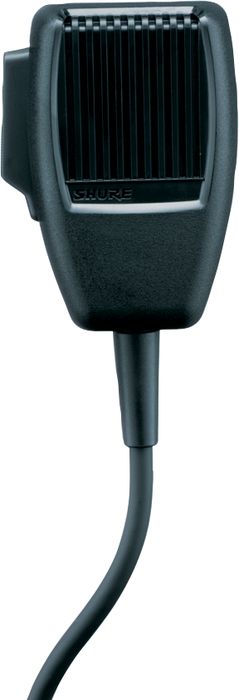

Shure 596LB Handheld Communication Mic

The Shure Model 596LB is a compact, hand-held dynamic, low-impedance microphone with a 200 to 5,000 Hz frequency response. Designed especially for voice communications use or as a component in an intercom system, it is an economical unit for applications in budget-restricted paging and other installations. The 596LB microphone is compatible with many popular paging amplifier inputs. Its tailored frequency response provides clear, intelligible operation. The ARMO-DURcase is small, light and sturdy, and fits comfortably in the palm of the hand. It has a long-life push-to-talk switch, and a durable coiled cable for years of reliable performance. The Shure 596LB mic has a low-impedance output.



Features


Omnidirectional pickup pattern for optimum off-axis operation
Frequency response from 200 to 5,000 Hz, tailored for voice communications
Economical-the perfect choice for modest paging installations
Rugged and dependable under most operating conditions
Silver-plated switch contacts for long-term low contact resistance and reliable performance
Long-life vinyl-jacketed coil-cord for years of trouble-free operation
Output impedance matches most paging amplifier inputs
Virtually indestructible ARMO-DUR case
Sturdy, convenient mounting button for attaching to equipment


596LB Handheld Communication Mic Specifications:


Type: Dynamic
Frequency Response: 200 to 5,000 Hz
Polar Pattern: Omnidirectional
Impedance (at 1,000 Hz): 400 ohms
Output Level (at 1,000 Hz): -33 dB +/- 3.0 dB
(0 dB = 1 V/10 Pascal. 1 Pa = 94 dB SPL)
Hum Sensitivity: 36 dB maximum equivalent SPL per 1 mOe electromagnetic field
Environmental Conditions: Operating Temperature: -40 degrees to 74 degrees C (-40 degrees to 165 degrees F)
Storage Temperature: -54 degrees to 85 degrees C (-65 degrees to 185 degrees F)
Relative Humidity: 0 to 95% (non-condensing)
Switch: Double-pole, double-throw, push-to-talk, normally open
Cable: 1.5 m (5 ft) extended length, 4-conductor (2 shielded), vinyl-jacketed coil-cord
Construction: Case Black textured high-impact ARMO-DUR
Dimensions: (H x W x D): 3-3/8" x 2-1/2" x 1-11/16". (85.7 x 6.5 x 42.9 mm)
Net Weight: 260 grams (9.17 oz) with cable
